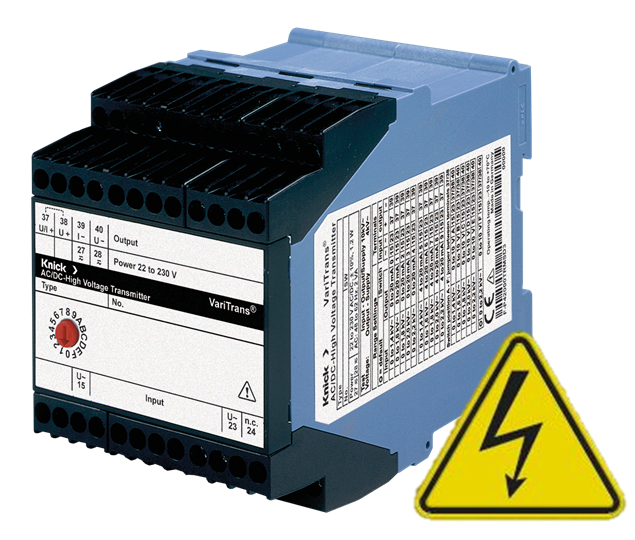

VariTrans P 42100 with Selectable DC High Voltage Input Range up to 3600V

• Measurement of DC Voltage levels up to 3600V.
• High accuracy device with a gain error of less than 0.1 %
• Wide range auxiliary power supply from 20 to 253V AC/DC
• Vacuum encapsulation provides max protection against shock & vibrations and helps maintain its isolation voltages allowing for long maintenance free periods.
• To guarantee the specified isolation capabilities devices are subjected to routine testing with 15kV AC to ensure working voltages up to 3.6KV AC/DC.
• Protection against electric shock with protective separation up to 1800 V AC/DC according to EN 61140
• New TransShield technology enables narrow 67.5 mm wide yet robust modular housing.
• Complies with EN61010-1 Safety Standard
• Complies with EN 50124-1 This Standard deals with insulation coordination in railways.
• Protection against electric shock is achieved through protective separation according to EN 61140
• Each transducer is protected with a 5 year warranty.

The Knick VariTrans P 42100 selectable DC High Voltage Input Transducers have been specially designed for DC voltage measurements within high voltage systems. Customer can choose input measurement level between ±100V & ±3,600V with standard outputs at ±10V, ±20mA, or 4…20mA.

The isolation system meet the requirements of EN61010-1 and EN 50124-1 This European Standard deals with insulation coordination in railways. It applies to equipment for use in signalling, rolling stock and fixed installations. In this series, Knick relies on the newly developed TransShield technology, which compared to conventional designs enables very compact high-voltage transformers with low leakage. Thanks to the resulting space advantage, the P 42000 fixed low voltage input transducers can be installed in its narrow 67.5 mm wide modular housing.
