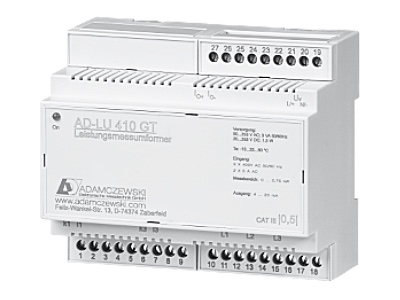

Adamczewski AD-LU 410 GT-3PNU

• All power circuits can be monitored with the AD-LU 410 GT Series including 3 & 4 wire plus balanced & unbalance loads.
• AD-LU 410 GT Series transducers are manufactured to customer specific Current and Voltage input requirements.
• Active power measurement with proportional output signal. 0…20mA, 4…20mA, 0…10V or 2…10V output signals are available.
• Due to its analogue design, fast power measurements are possible.
• Active Power Measurements with an accuracy of Class 0.5 full scale.
• Wide range auxiliary power supply from 20 to 253V DC & 50 to 253V AC
• Simple snap-on din rail mount.
• Working Voltage up to 300V with overvoltage category II and pollution degree 2 according to EN61010-1
• 2-year warranty.

The Adamczewski AD-LU 410 GT-3PNG Active Power Transducer is used for the measurement of Active Power in three-phase, four-wire balanced Load AC power systems. The transducer converts the Active Power measurement into a proportional DC output signal. Due to its analogue design, fast power measurements are possible. The end-user confirms the input voltage and current range including CT/VT primary ratings at time of order along with the active power range. There are 4 standard dc signal output options available 4-20mA & 2-10V or 0-20mA & 0-10V these would then represent the active power range specified.

The Adamczewski AD-LU 410 GT series meet the electrical safety requirements of EN61010-1 with a Working Voltage of 300v, overvoltage category III and pollution degree 2.

The unit offers a wide range auxiliary power supply with the nominal 24 DC & 230V AC covered.
