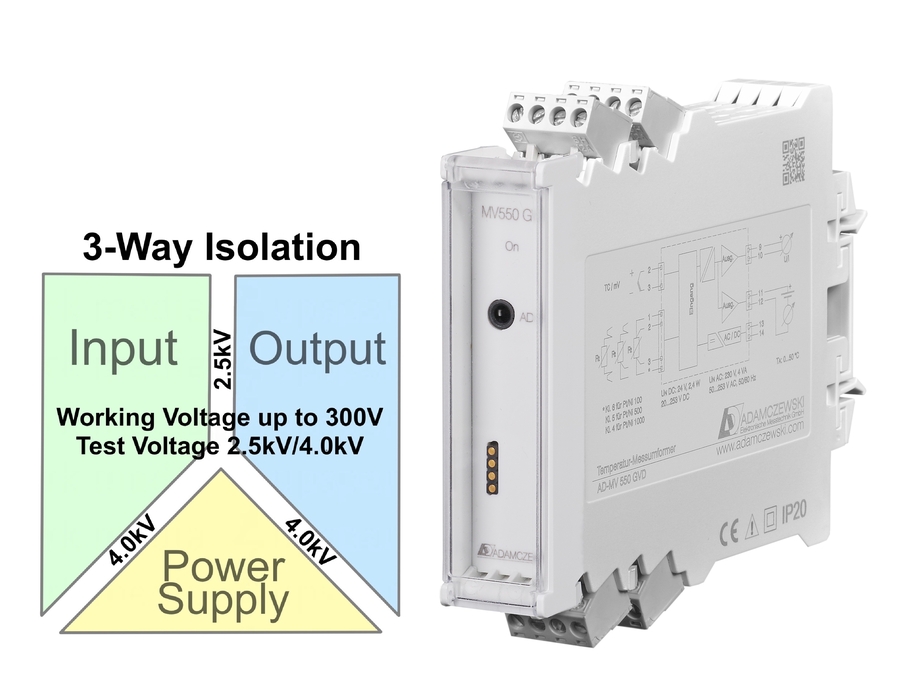

Adamczewski AD-MV 550 GVD Programmable Temperature Transmitter

• Resistance thermometer inputs, types Pt/Ni 100, Pt/Ni 500, Pt/Ni 1000
• Thermocouples inputs, types J, T, K, E, N, S, R, B, C
• Dual DC Signal Outputs either 2 x ±20mA or 2 x ±10V fully parameterized for greater control/monitoring.
• Power Supply for 2/3 wire transmitters
• Basic accuracy is better than 0.5°C
• Wide range auxiliary power supply from 20 to 253V DC & 50 to 253V AC.
• 23mm wide housing with simple snap-on din rail mount.
• Detachable screw fix terminal connection.
• Working Voltage up to 300V with overvoltage category II and pollution degree 2 according to EN61010-1
• 2-year warranty.

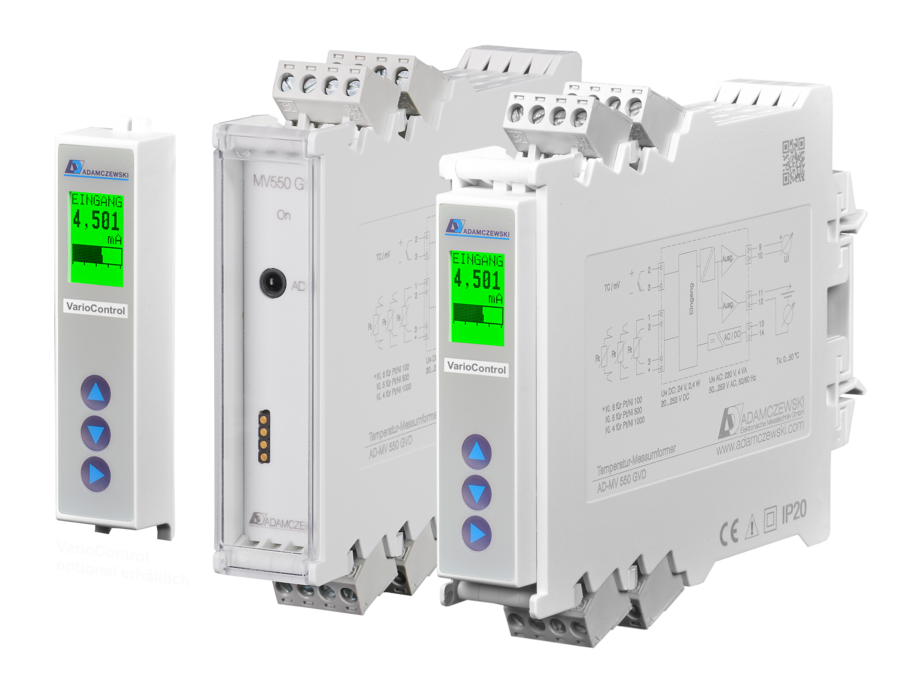

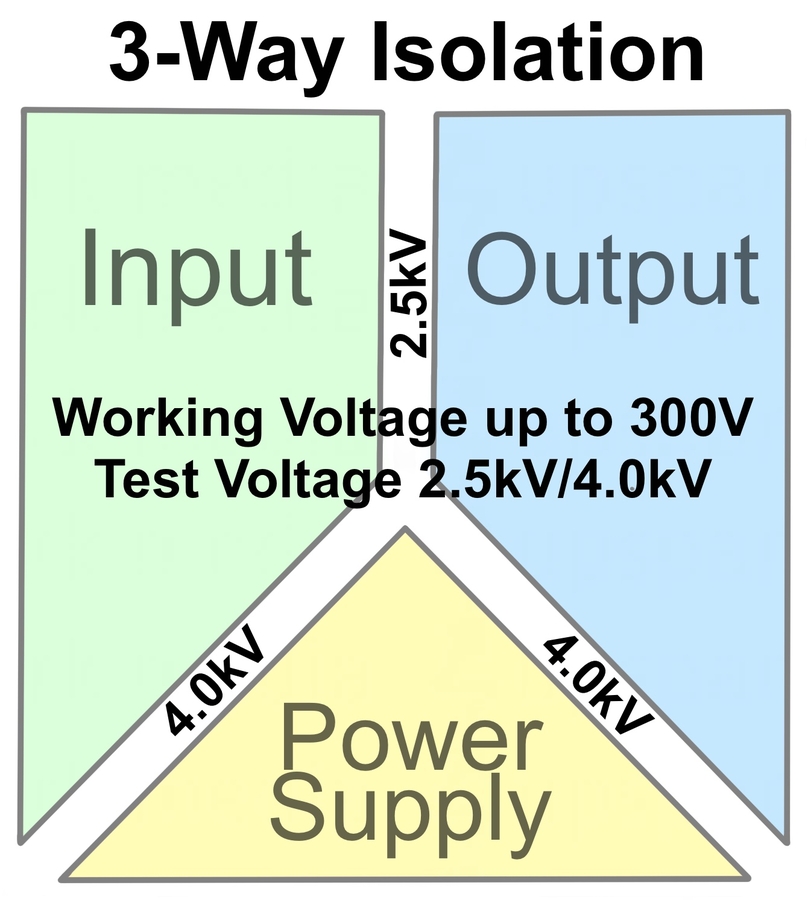

The Adamczewski AD-MV 550 GVD Programmable Temperature Transmitter suitable for use with Resistance Thermometer Sensors (RTD’s) Pt/Ni 100, Pt/Ni 500, Pt/Ni 1000 and Thermocouple Sensors Types J, T, K, E, N, S, R, B, C. All measuring ranges and outputs can be fully parameterized. This can be carried out via the optional control panel AD-VarioControl or AD-VarioPass/AD-Studio Programming Adapter & Configuration Software. You have the option to have either one or two outputs again fully parameterize over the output range of ±21.5mA or ±10.5V. The unit offers a wide range auxiliary power supply with the nominal 24 DC & 230V AC covered. To guarantee the specified isolation capabilities these devices are subjected to routine testing of up to 4kV to ensure their suitability for working voltages up to 300V. This low-cost quality product is manufactured in Germany and offers a basic accuracy of 0.5°C.
