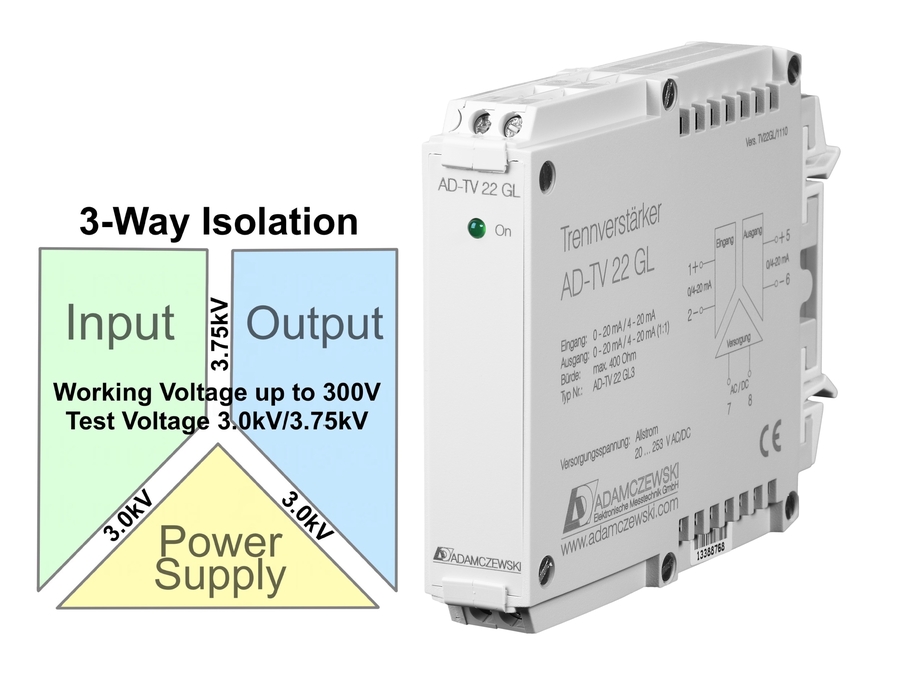

Adamczewski AD-TV 22 GL DC Signal Conditioner

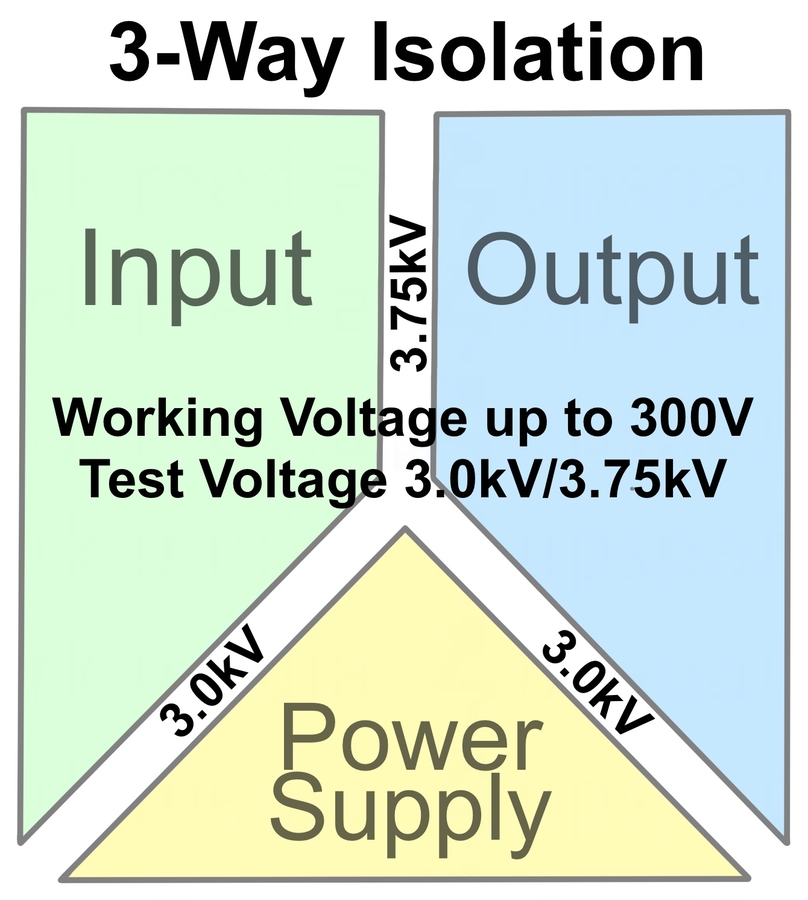

• 0/4…20mA Signal Conditioner with 3-way galvanic isolation between input, output and power supply.
• Basic accuracy is better than 0.2%.
• Wide range auxiliary power supply from 20 to 253V DC & 50 to 253V AC.
• 18mm wide housing with simple snap-on din rail mount.
• Fixed Screw Terminal Connection.
• Working Voltage up to 300V with overvoltage category II and pollution degree 2 according to EN61010-1
• 2-year warranty.

The Adamczewski AD-TV 22 GL 0/4…20mA Signal Conditioner meets the electrical safety requirements of EN61010-1 with a working voltage of at 300V. The unit offers a wide range auxiliary power supply with the nominal 24 DC & 230V AC covered.

The Adamczewski AD-TV 22 GL Signal Conditioners is the most cost-effective signal isolator that we offer for reliably 3-way galvanic isolation between input, output and power supply with maximum long-term stability that’s backed up by a 2-year warranty. This low-cost quality product is manufactured in Germany and offers a basic accuracy of 0.2%.

To guarantee the specified isolation capabilities these devices are subjected to routine testing of up to 3.75kV to ensure their suitability for working voltages up to 300V.

• Adamczewski AD-TV 22 GL
