Adamczewski AD-TV 33 GL Signal Conditioner

• Selectable Input/Output ranges 0…20mA, 4…20mA or 0…10V output and power supply.
• Basic accuracy is better than 0.2%.
• Wide range auxiliary power supply from 20 to 253V DC & 50 to 253V AC.
• 18mm wide housing with simple snap-on din rail mount.
• Fixed Screw Terminal Connection.
• Working Voltage up to 300V with overvoltage category II and pollution degree 2 according to EN61010-1
• 2-year warranty.

The Adamczewski AD-TV 33 GL Signal Conditioners offers selectable input/output ranges covering the most popular process signal requirements 0…20mA, 4…20mA or 0…10V. It meets the electrical safety requirements of EN61010-1 with a working voltage of at 300V. The unit offers a wide range auxiliary power supply with the nominal 24 DC & 230V AC covered.

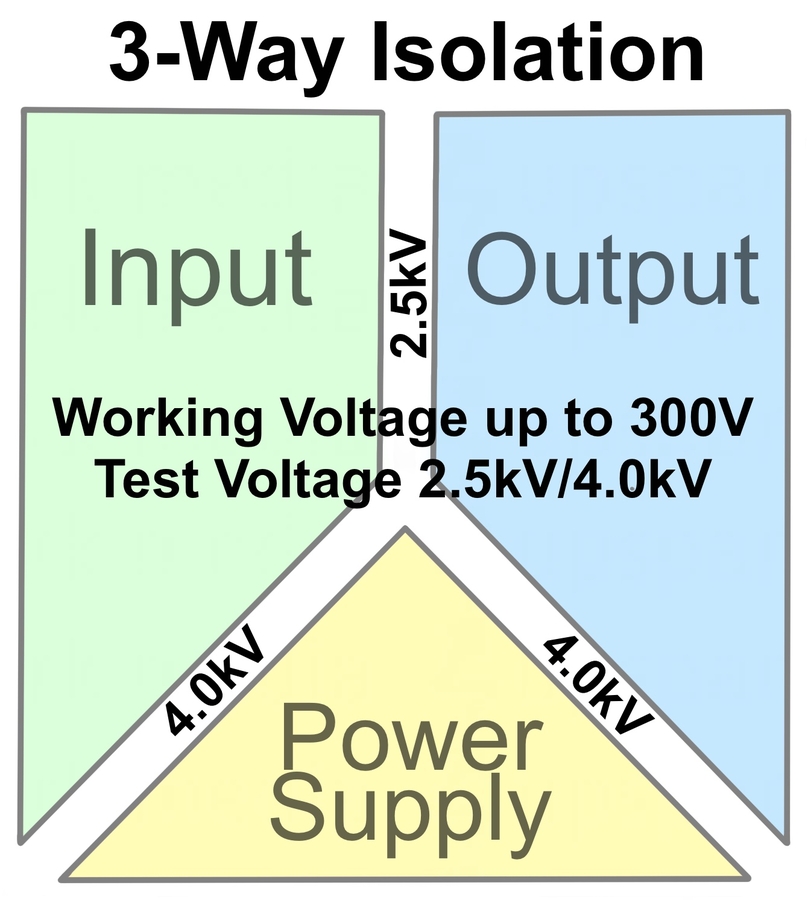

It’s great to have this flexibility from a cost-effective signal isolator offering reliably 3-way galvanic isolation between input, output and power supply with maximum long-term stability that’s backed up by a 2-year warranty.

To guarantee the specified isolation capabilities these devices are subjected to routine testing of up to 3.75kV to ensure their suitability for working voltages up to 300V. This low-cost quality product is manufactured in Germany and offers a basic accuracy of 0.2%.
