Adamczewski AD-TV 420 GVD Programmable Signal Conditioner

• DC Input options can be fully parameterized over the range ±50mA or ±100V
• Dual DC Signal Outputs fully parameterize over the output range of ±21.5mA or ±10.5V for greater control/monitoring.
• Power Supply for 2/3 wire transmitters
• Basic accuracy is better than 0.2%.
• Wide range auxiliary power supply from 20 to 253V DC & 50 to 253V AC.
• 23mm wide housing with simple snap-on din rail mount.
• Detachable screw fix terminal connection.
• Working Voltage up to 300V with overvoltage category II and pollution degree 2 according to EN61010-1
• 2-year warranty.

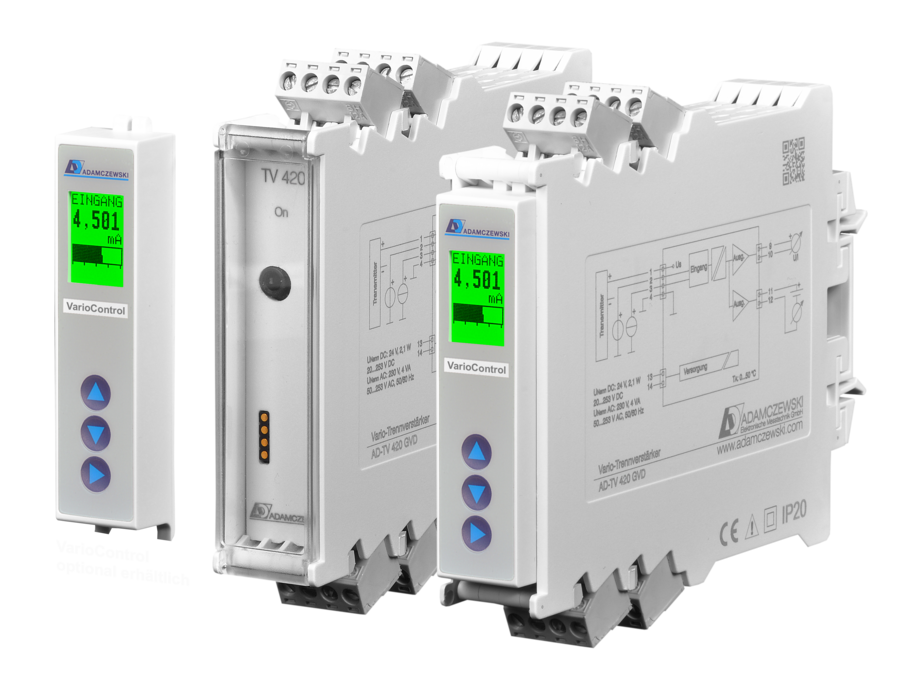

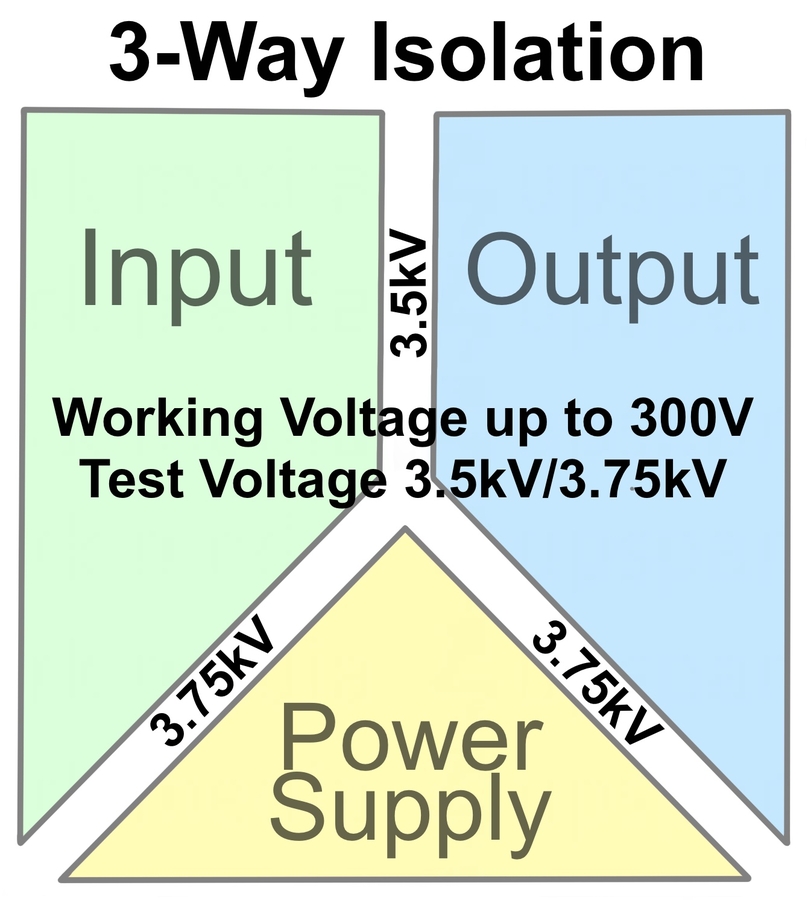

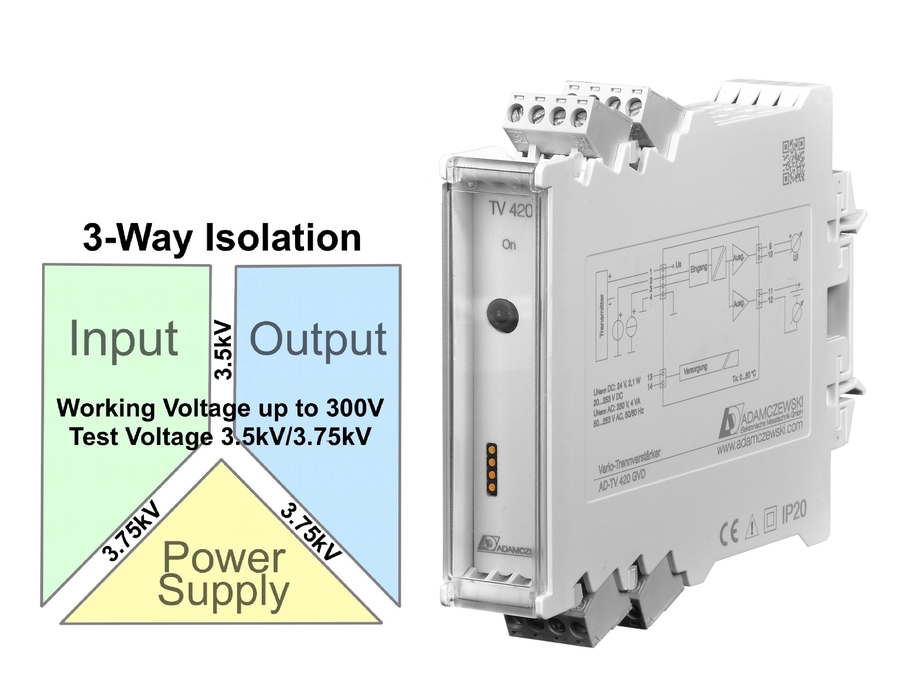

The Adamczewski AD-TV 420 GVD Programmable Signal Conditioner covers most DC current and voltage input/output requirements with DC Input options covering the range ±50mA or ±100V. Plus it also offers dual signal outputs either in the range of ±20mA or ±10V for greater control/monitoring. Full parameterisation of the input and outputs signals can be carried out via the optional control panel AD-VarioControl or AD-VarioPass/AD-Studio Programming Adapter & Configuration Software. It also offers an isolated power supply for suitable a 2/3-wire transmitters. The unit offers a wide range auxiliary power supply with the nominal 24 DC & 230V AC covered. To guarantee the specified isolation capabilities these devices are subjected to routine testing of up to 3.75kV to ensure their suitability for working voltages up to 300V. This low-cost quality product is manufactured in Germany and offers a basic accuracy of 0.2%.

• Adamczewski AD-TV 420 GVD
