Adamczewski AD-VC 1 GVD Programmable Multifunctional Transmitter
Suitable for all popular process signal measurements including mA, mV, V, 3-wire Potentiometer Resistance Measurement along with Temperature Measurement via pt/Thermocouple Sensors
| Model: | Adamczewski AD-VC 1 GVD | |
| Order No: | AD-VC 1 GVD-R0 | |
| Input: | Current Measurement ranges ±24mA | |
| mV Measurement range ±15mV to ±250mV | ||
| Voltage Measurement range 0…12V | ||
| Resistance Measurement range 50Ω…100kΩ | ||
| RTD Sensors Pt/Ni 100, Pt/Ni 500, Pt/Ni 1000 | ||
| Thermocouples Sensors J, T, K, E, N, S, R, B, C | ||
| Output: | Nominal ±20mA or ±10V | |
| Power Supply: | 20 to 253V DC & 50 to 253V AC | |
| Case Width: | 23mm | |

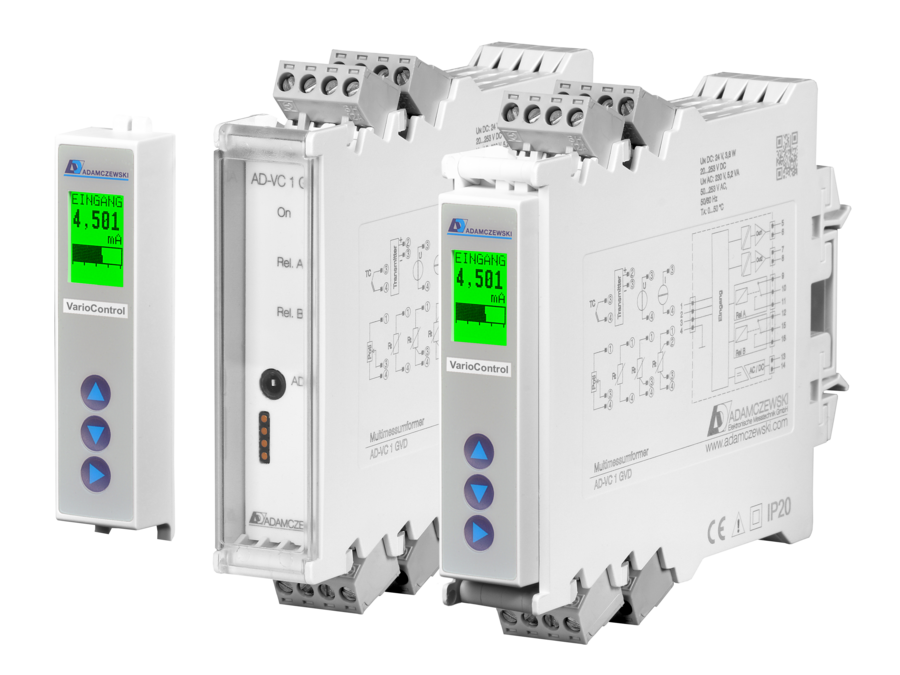

The Adamczewski AD-VC 1 GVD Programmable Multifunctional Transmitter is suitable for a range of process signal measurements including current in the range ±24mA. mV measurement ranges of ±15mV, ±30mV, ±60mV, ±125mV or ±250mV. Resistance measurement via potentiometer with an input range 50Ω…100kΩ. Plus temperature measurement from Resistance Thermometer Sensors (RTD’s) Pt/Ni 100, Pt/Ni 500, Pt/Ni 1000 and Thermocouple Sensors Types J, T, K, E, N, S, R, B, C. All measuring ranges and outputs can be freely parameterized. This can be carried out via the optional control panel AD-VarioControl or AD-VarioPass/AD-Studio Programming Adapter & Configuration Software. You have the option to have either one or two outputs again fully parameterize over the output range of ±21.5mA or ±10.5V. The unit offers a wide range auxiliary power supply with the nominal 24 DC & 230V AC covered. To guarantee the specified isolation capabilities these devices are subjected to routine testing of up to 4kV to ensure their suitability for working voltages up to 300V.
There is an optional unit available with 2 x Relay Outputs (AD-VC 1 GVD-R1)
