Aranet Gateway Pro Wireless Hub - TDSGWP01

• Gateway Pro connects up to 100 Aranet sensors and forwards measurement data to Aranet Cloud.
• A compact gateway with a built-in touchscreen for fast setup, live visibility of all paired sensors, plus reliable data forwarding to Aranet Cloud or integrate with other systems via MQTT and Modbus TCP/IP.
• Just power up and connect wirelessly to the internet followed by simple pairing to multiple sensors.
• No direct mains power required just a simple safe 5V DC connection to USB-C port or through the RJ45 port using PoE (Connection leads and AC power supply available via accessories)
• Up to 100 Aranet sensors can be monitored simultaneously.
• The Aranet Cloud platform allows the viewing of live and historical sensor measurement data from all the sensors which are paired to the Aranet Gateway Pro Wireless Hub.

Environmental monitoring gateway with an integrated touchscreen dashboard.

Gateway Pro is the central hub for monitoring up to 100 Aranet wireless sensors. It collects data from the wireless connected sensors with a range of up to 3km and forwards it to Aranet Cloud for real-time monitoring. Alternatively, the Gateway Pro can be integrated into other control/monitoring applications via MQTT and Modbus TCP/IP.

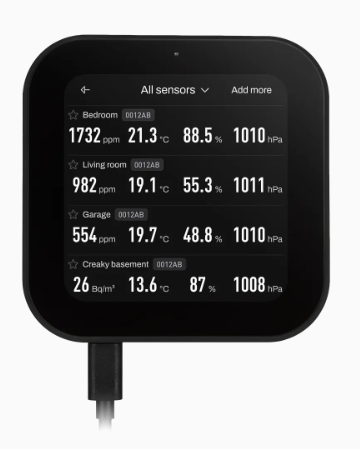

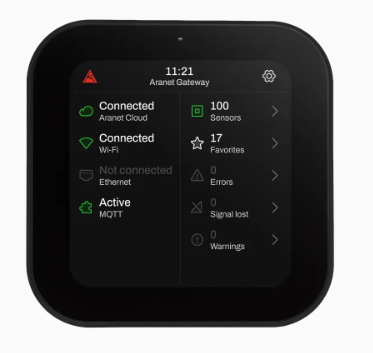

The built-in touchscreen enables quick on-site setup and sensor pairing plus a quick view of key measurements. Full gateway management, data visibility, and analytics are available via Aranet Cloud.

Gateway Pro supports Wi-Fi or Ethernet and integrations via MQTT and Modbus TCP/IP. The Gateway Pro includes up to 12 hours of cache memory to help prevent data loss during any temporary network interruptions.

• Aranet Gateway Pro
