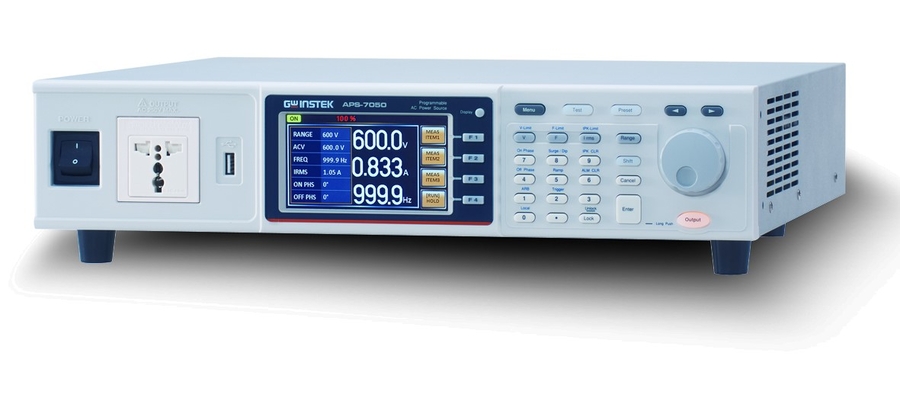

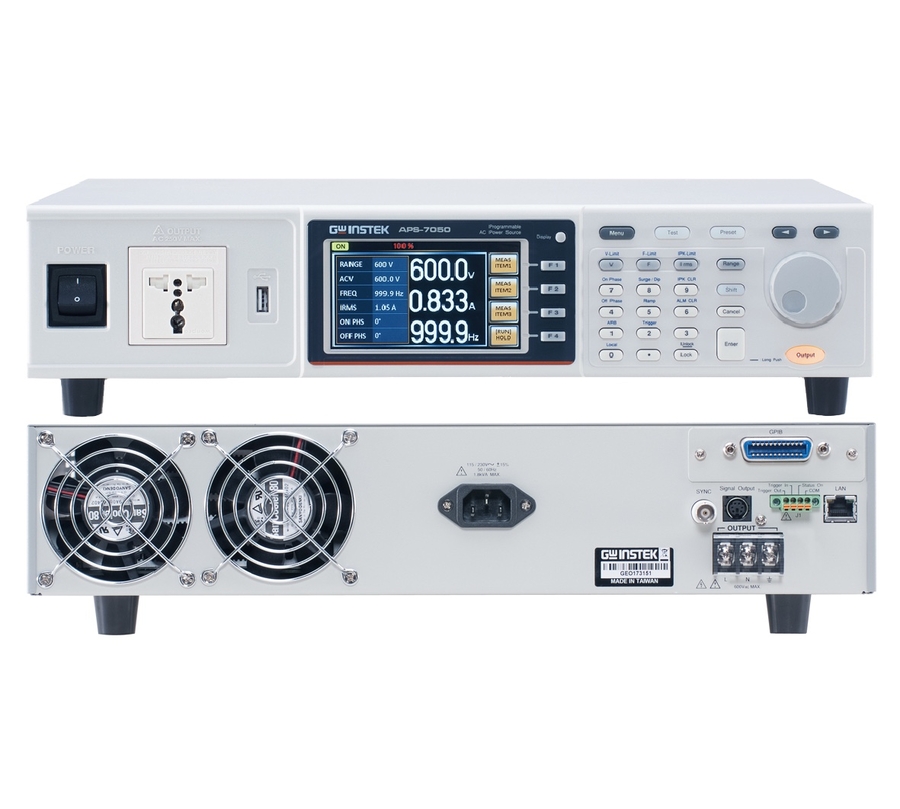

GW Instek APS-7050
AC Power Source with Maximum Power 500VA. Plus special output functions including Arbitrary Waveform Generator

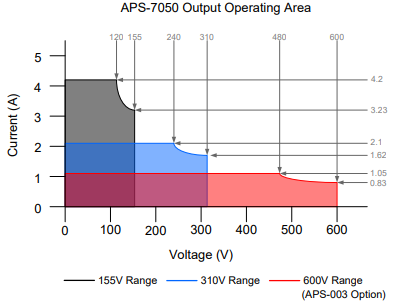

| With 2 Standard Power Output Ranges and 1 Optional |
| 0...155Vrms | 0...4.2A | Max 500VA |
| 0...310Vrms | 0...2.1A | Max 500VA |
| 0...600Vrms | 0...1.05A | Max 500VA (APS-003 Option) |
The GW Instek APS-7050 AC Power Source offer two standard AC voltage ranges of 0…155Vrms & 0…310Vrms with an optional software upgrade range of 0…600Vrms. The output frequency range is 45…500Hz. This economical designed AC Power Source offers a cost effective reliable solution for test & development applications in your Test Laboratory, Research & Development, Production or Training Facility.

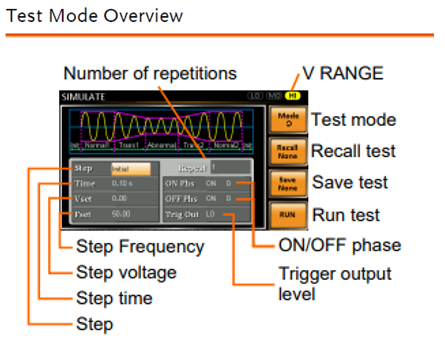

There are 9 Measurement function including Voltage (rms), Current (rms), Current (peak) Current Peak Hold, Frequency, Power (W), Apparent Power (VA), Power Factor and Crest Factor. Also, unlike the APS-7050E economy version the APS-7050 offers function modes such as Arbitrary Waveform (enables you to select a range of continuous arbitrary waveforms), Simulate Mode (simulate voltage/frequency fluctuations), Ramp Control (controls how fast the voltage level ramps up and down) Sequence Mode (creates test sequence) and finally Program Mode (which enables you to run a group of test sequences). All these of these measurement and test functions enable you to fully utilise this test instrument to simulate all the electrical conditions required for testing both consumer and industrial electrical/electronic products. The large 4.3-inch TFT display gives the user a similar view to an AC Power Meter and all key measurement functions can be displayed simultaneously.
