GW Instek ASR-2050

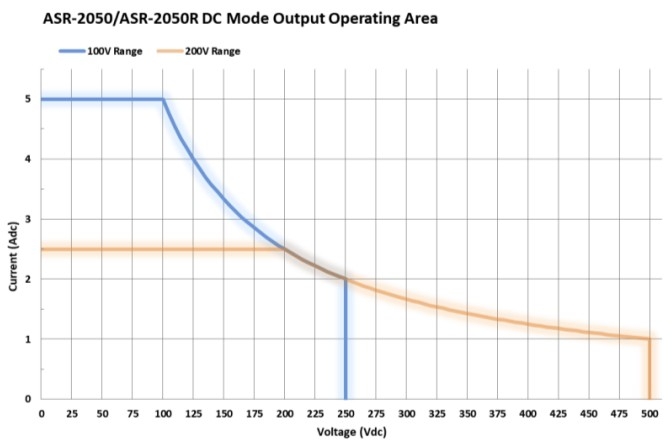

• Maximum AC Output Voltage 350Vrms & Maximum DC output Voltage 500Vdc

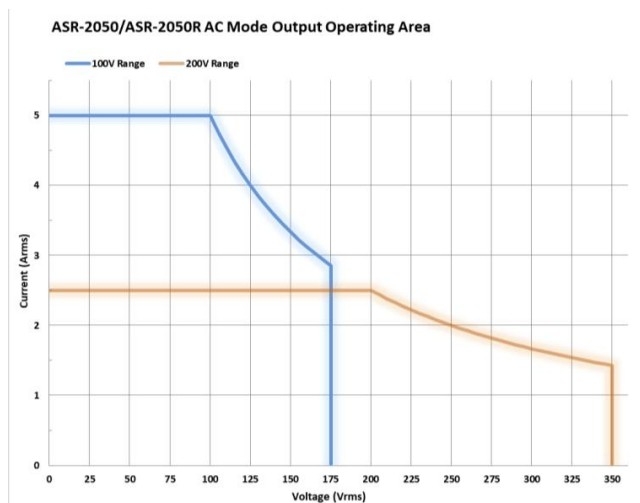

• Max 500VA power curves in both low & high voltage ranges 0…175Vrms and 0…350Vrms
• Max AC Current is 5Arms at up to 100V on 175V range and 2.5Arms at up to 200V on 350V range.
• The frequency range is also impressive, for AC 40…999Hz & DC 1…999Hz.
• Standard wave form output options include sine, square, triangle with arbitrary edit functions with a full range of sequential and simulated functions including common abnormalities in mains power.
• AC measurement variables include Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH (Peak Current Hold Function), P, S, Q, PF & CF.
• AC harmonic measurements include both Voltage & Current Harmonics up to the 100th order, plus THDv & THDi.

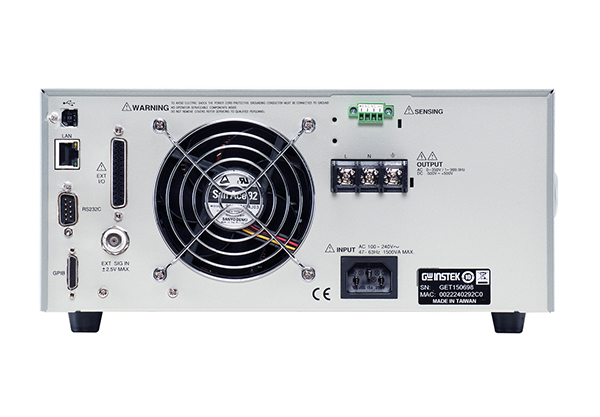

• Remote interface and control can be achieved either via I/O Connector, GPIB, USB, Ethernet or RS232C.
• The Ethernet interface can be configured for a number of different applications including basic remote control or monitoring using a web server.
• Max output current 5A. Maximum peak current at Crest Factor 4 is 20A @100V and 10A @ 200V.

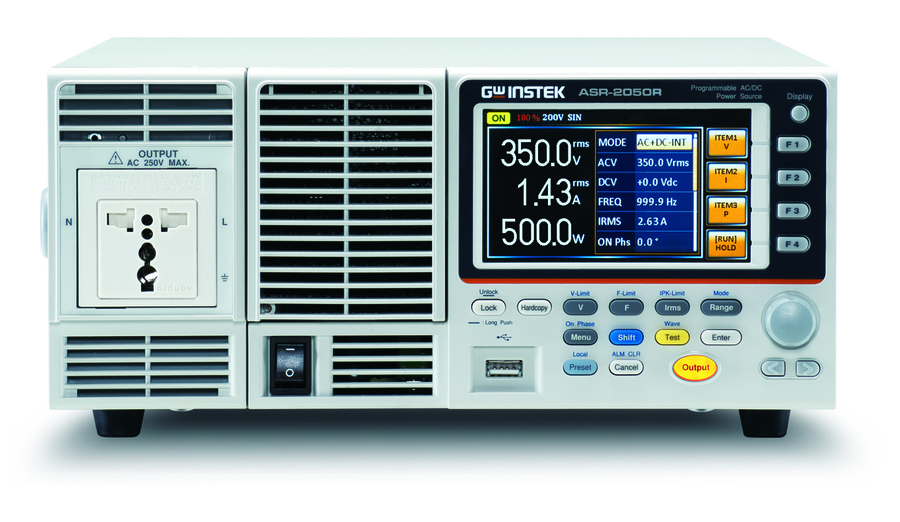

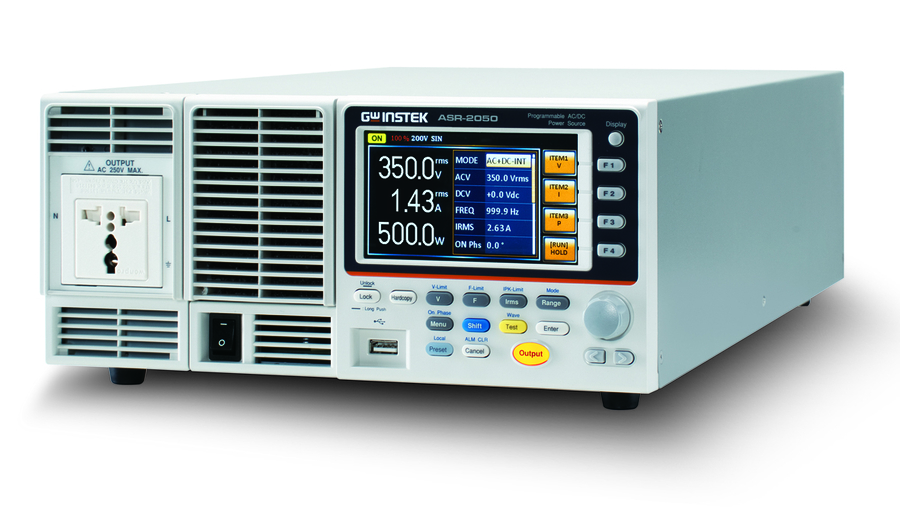

The GW Instek ASR-2050 Programmable AC/DC Power Source offer two nominal voltage ranges of 0…175Vrms/0…250DC and 0…350Vrms/500DC and 3 key programmable output modes including, AC Power Output, DC Power Output and AC & DC Power Output, here the output can seamlessly change from AC to DC. The GW Instek ASR-2050 also provides the user with measurement capabilities including Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 100th-order Voltage Harmonic and Current Harmonic.

During the power output, the measurement parameters including Vrms/Irms, Vavg/Iavg and Vmax/Vmin/ Imax/Imin can be switched by users at any time to display the instantaneous calculation reading. The sequence mode provides editable 10 sets of SEQ0~SEQ9, each set has 0~999 steps, each step time setting range is 0.0001~999.9999 seconds. Users can combine multiple sets of steps to generate the required waveforms, including waveform falling, surges, sags and other abnormal power line conditions to meet the needs of the test applications. In addition, ASR-2000 Series also built in common ISO-16750-2 test waveforms in the Sequence Mode pre-set waveforms, including Momentary Drop in Supply, Reset Behaviour at Voltage Drop with 12V system, Starting Profile Waveform and Load Dump with Tr_10ms, and Td_40ms. The ASR-2000 Series software includes basic controller settings, programming the Simulate Mode, the Sequence Mode, Data Log and the arbitrary waveform editing function. Users can directly set output voltage, frequency, and start/stop phase on ASR-2000 Series through the software.

The Simulate Mode can quickly simulate different transient waveforms such as power outage, voltage rise, voltage fall... etc. The arbitrary waveform editing function not only combines various waveforms, including sine waves, square waves, triangle waves, and noise waveforms, but also allows uses to draw arbitrary waveforms and output them.

• GW Instek ASR-2050 with Universal Socket
• GTL-123 Test Lead 1.2m
• Output Terminal Cover Set
• Sensing Terminal Cover Set
• Mains Power Lead
• User Manual.
