GW Instek ASR-6450

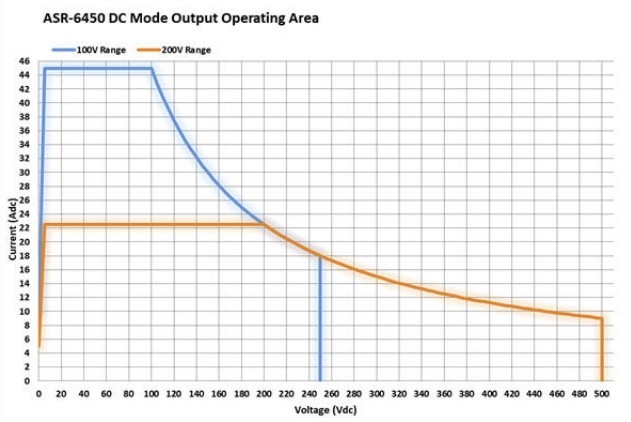

• Maximum AC Output Voltage 350Vrms & Maximum DC output Voltage 500Vdc

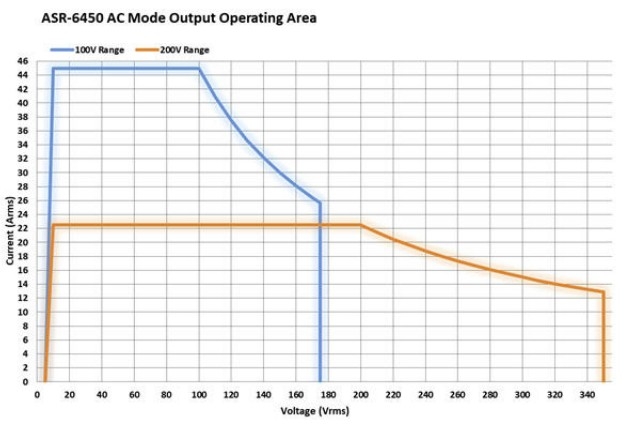

• Max 4500VA power curves in both low & High voltage ranges 0…175Vrms and 0…350Vrms
• Max AC Current is 45Arms at up to 100V on 175V range and 22.25Arms at up to 200V on 350V range.
• The frequency range is also impressive, for AC 15.00…2000.0Hz & DC 1.00…2000.0Hz.
• It supports AC single-phase (1P2W) and three-phase (3P4W, 1P3W) input and output, making it highly versatile for different power environments.
• Standard wave form output options include sine, square, triangle with arbitrary edit functions with a full range of sequential and simulated functions including common abnormalities in mains power.
• AC measurement variables include Vrms, Vavg, Vpeak, VpkH, Irms, Iavg, Ipeak, IpkH (Peak Current Hold Function), P, S, Q, PF & CF.
• AC harmonic measurements include both Voltage & Current Harmonics up to the 100th order, plus THDv & THDi.

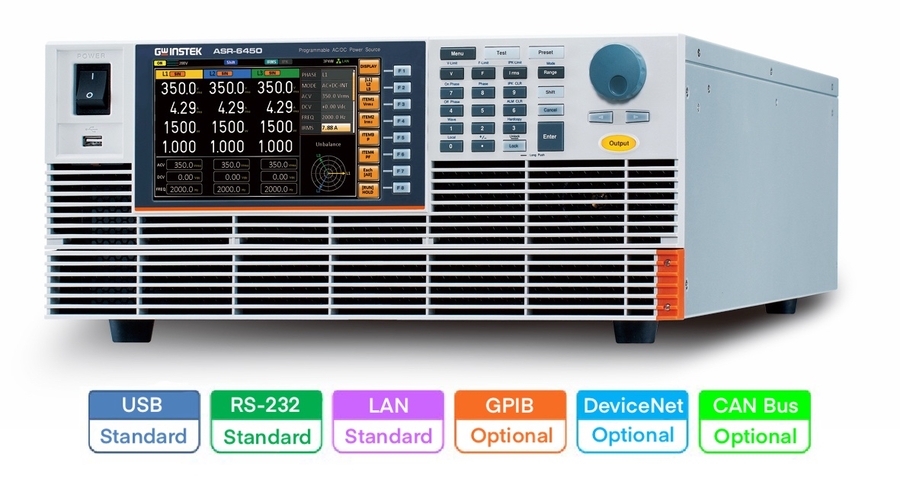

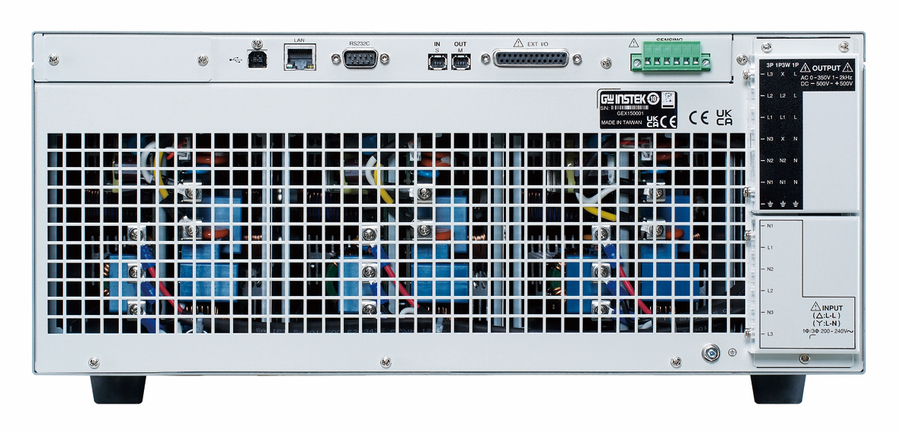

• Remote interface and control can be achieved either via I/O Connector, GPIB, USB, Ethernet or RS232C.
• The Ethernet interface can be configured for a number of different applications including basic remote control or monitoring using a web server.
• Max output current is up to 45A single phase and 15A three-phase
• Maximum peak current at Crest Factor 4 is 180A @100V and 60A @ 200V suitable for inrush current testing.
• Power Supply 200 Vac to 240 Vac ±10 %, phase voltage.

The ASR-6000 series of Programmable AC/DC Power Source is the first stand-alone unit from GW Instek that supports AC single & three phase input & output functionality. The series employs third generation semiconductor silicon carbide (SiC) technology that’s enabled GW Instek to create this compact high-power density and high-performance AC/DC power source.

The GW Instek ASR-6450 Programmable AC/DC Power Source supports AC Single & Three Phase input and output requirements. Its main function of this high-power AC source is the performance testing of both single-phase and three-phase AC products and their ability to perform under diverse power variations from balanced and un-balanced supplies, phase failure and power loss, plus a full range of up to 253 adjustable arbitrary single and three phase waveform outputs.

The GW Instek ASR-6450 Programmable AC/DC Power Source offers three operational modes 1P2W, 1P3W & 3P4W the maximum phase voltage output is 350Vrms and the maximum line/line voltage is 700Vrms. In the AC three-phase output (3P3W) mode each phase supports independent output settings to cover unbalance power test requirements, the user can set the phase angle of L1, L2 and L3. The three independent phase outputs can also be used for the testing of three separate devices.

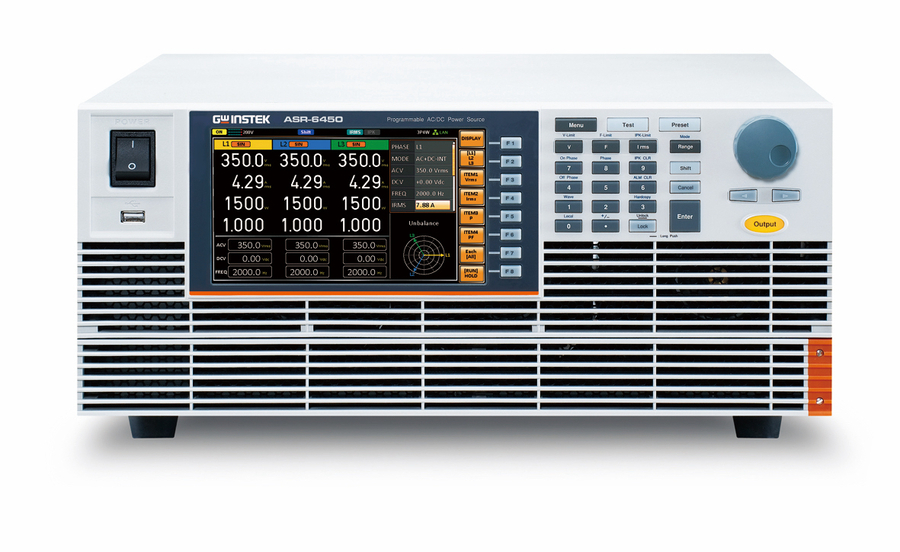

The GW Instek ASR-6450 Programmable AC/DC Power Source is such a compact three-phase power source with a great price to power output when compared to the other manufactured products.  Then you have the programmability of the unit plus its large graphical display that allows you to display key measurements across all three phases simultaneously. You can then switch to Harmonic Mode where you can view both Voltage & Current Harmonics up to the 100th order, including THDv & THDi.

In Scope mode you can view the voltage and current waveform for each independently set phase. The frequency range is also impressive, for AC 15.00…2000Hz & DC 1.00…2000.0Hz. Its ability to generate a range of standard waveforms and mains anomalies is also a great feature. It’s basically offering the user the best value of any 4.5kVA AC/DC Power Source.

• GW Instek ASR-6450
• Input & Output Terminal Covers
• Connection Plates for single and three-phase input and output connections.
• GRA-451-E Rack Mount Adapter
• USB Cable, User Manual
