GW Instek DAQ-9600

GW Instek DAQ-9600
GW Instek DAQ-9600GW Instek DAQ-9600GW Instek DAQ-9600
GW Instek
GW Instek DAQ-9600 + 1 x DAQ-900 20ch Data Logging Module = 20 channel data logger with 120V/Channel

The GW Instek DAQ-9600 Benchtop Multimeter/Multi-Channel Data Logger + 3 x DAQ-900 Multiplex Data Logging Modules offers up to 60 isolated multiplexed data logging channels and is suitable for a wide range of applications, including battery research & development testing. With the DAQ-900 module it’s capable of monitoring up to 60 isolated two wire multiplex channels at up to 120V DC. Other modules can be selected to cover many different applications.

The DAQ-9600 can store the measurement results without connecting to a PC with the non-volatile memory capacity of 100k readings. Users can store the measurement results inside the system first, and then connect to a PC to collect data. In addition, for larger memory capacity, the DAQ-9600 also supports the USB storage function, which can directly record data to an external USB flash drive, or copy the data of the internal non-volatile memory to the flash drive for follow-up analysis.

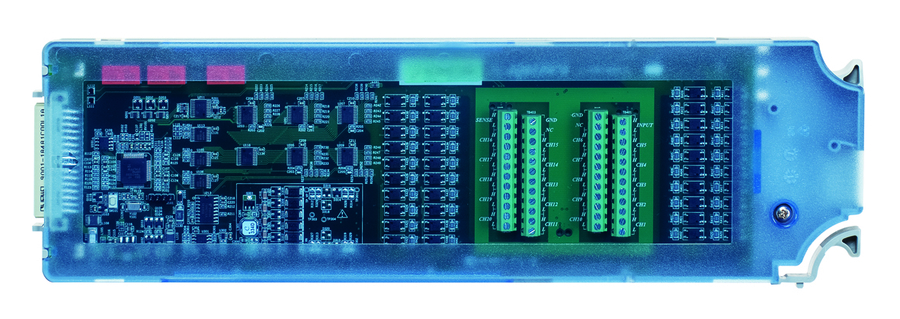

What we like: The GW Instek DAQ-9600 data acquisition system is a modularized data acquisition system with high flexibility and higher performance. The mainframe is equipped with 3 module slots and a built-in precision 6 1/2 digital Digital Multimeter. The DAQ-900 Multiplex Data Logging Modules allow for full isolation measurement across 60 channels at up to 120V DC.
Ask An Expert

Choose Product

£1628.00
Inc VAT £1953.60
RRP £1928.00 Ex VAT
You Save £300.00
Quantity:
Available From Stock
Free Next Day Delivery
Features
Description
Package Includes
Accessories
Added to Basket!
Continue Shopping Check Out
