GW Instek GDM-9042

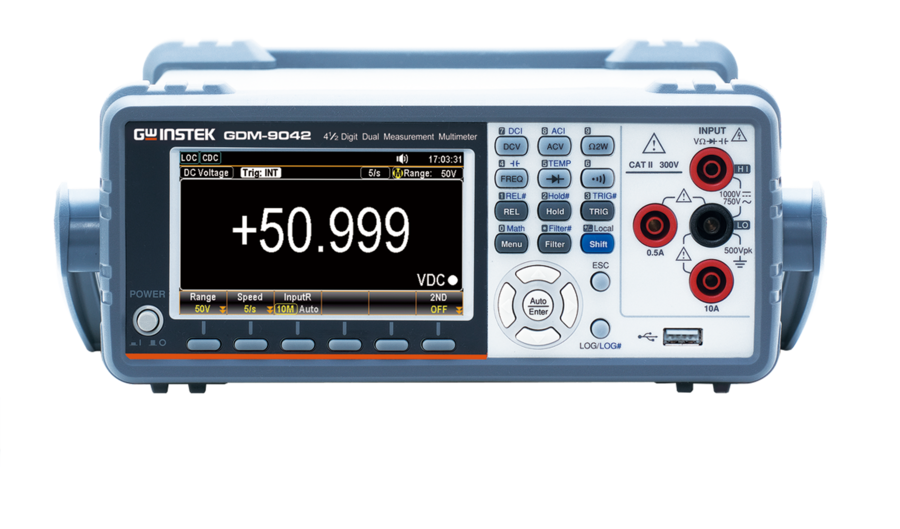

• Max 50000-digit display count with large 4.3’’ TFT Graphic Display.
• Good basic DCV accuracy of 0.02%
• High Voltage range up to 1000V DC & 750V AC with ACV frequency response up to 100kHz.
• 5 voltage ranges up to 1000V DC & 750V AC.
• 6 Current ranges up to 10A DC & AC with a resolution as low as 10nA.
• 6 Resistance ranges up to 100 MΩ with a resolution as low as 10mΩ.
• Other measurements include, Capacitance, Frequency, Temperature, Continuity & Diode Test.
• Dual measurement with dual display.
• USB data collection point on the front of the unit that enables you to store measurement results directly to a simple USB data stick with sample rates of 5/sec (0.2s), 40/sec (0.025s) or 160/sec (0.006s) for AC & DC Current and Voltage.

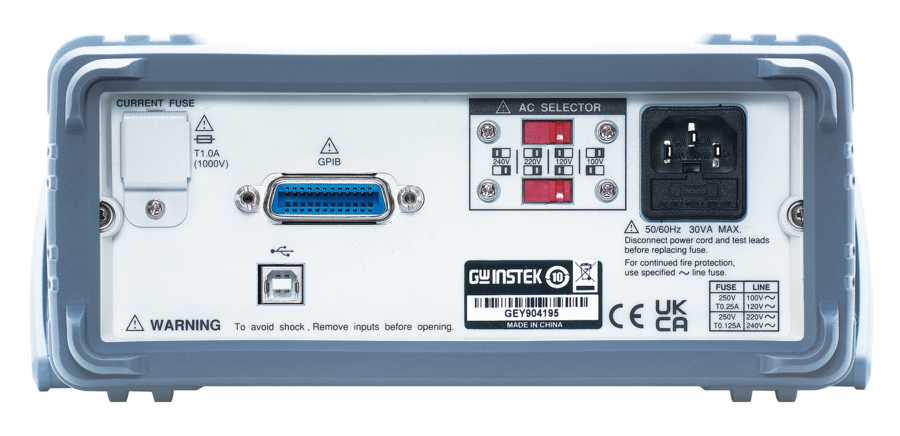

• The USB interface located on the rear of the instrument is used for remote control.
• Optional Interface: GPIB (factory install for GDM-9042 only)

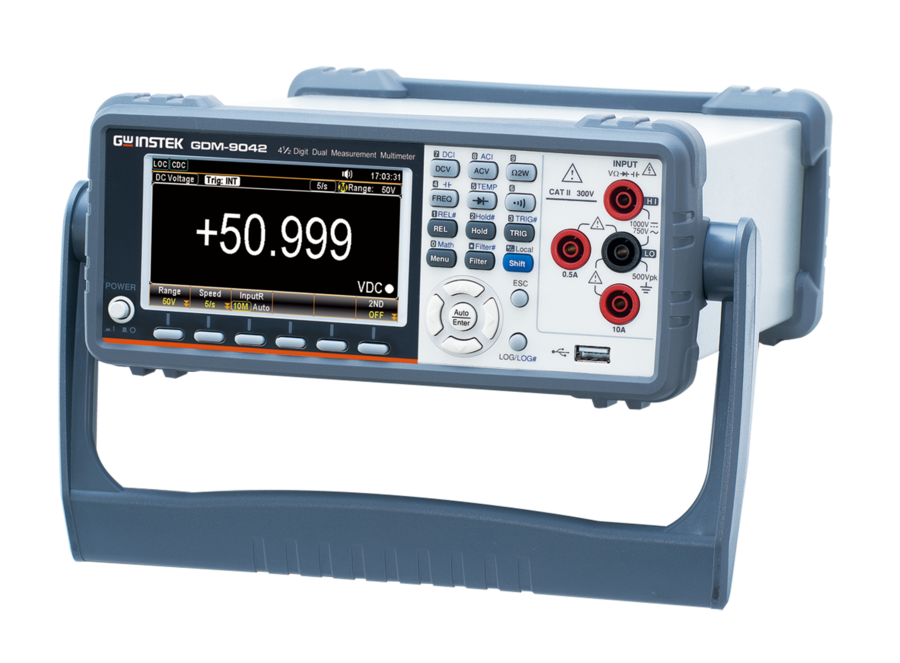

The GW Instek GDM-9042 Benchtop Multimeter offers the most cost-effective means of measuring 11 key measurement functions including DC Voltage, TRMS AC Voltage, DC Current, TRMS AC Current, Resistance, Capacitance, Frequency & Temperature it also offers Continuity & Diode Test. Key Primary and linked secondary measurement functions such as DC Voltage & DC Current can both be displayed large 4.3 TFT Graphic Display. It also offers visual features such and the dual 50000 count measurement display that enables you to compare two measurements at the same time such as DC Voltage and Current or the DC & AC components of an AC+DC signal. USB data collection point on the front of the unit that enables you to store measurement results directly to a simple USB data stick with sample rates of 5/sec (0.2s), 10/sec (0.1s) or 40/sec (0.025s) for AC & DC Current and Voltage. The USB device port located on the rear of the instrument is used for remote control.

• GTL-207A Test lead Set
• 1 x CD with complete user manual, USB Drive and PC Software
• Power Cord
