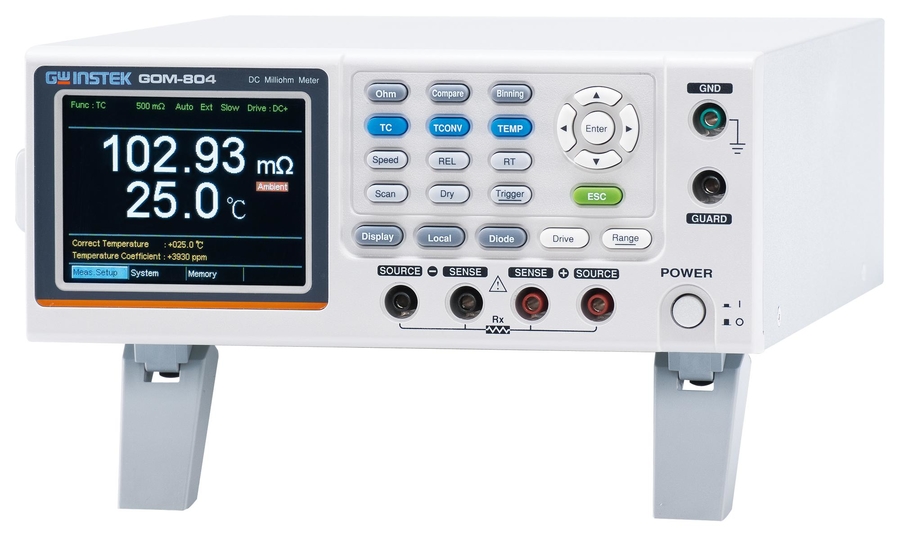

GW Instek GOM-804

• Large 3.5” (320 x 240) TFT LCD Display
• High accuracy resistance measurement with resolution down to 1µΩ
• 4 Wire precision milliohm resistance measurement with high basic accuracy of 0.05%
• Complete with 4-wire kelvin clips for superior contact and high accuracy measurements.
• Zero or relative resistance adjustment function.
• 10 x Resistance measurement ranges from 5.000mΩ with a resolution of 1µΩ to 5.0000MΩ
• Rapid sampling of up to 60 readings per second.
• Comparator function for resistance pass fail testing.
• Temperature measurement, compensation and conversion. (With Accessory PT100 Probe)
• Save/Recall settings for 20 memory function set ups.
• Suitable for wide power supply range from 100-240V AC.
• Compact bench top design just 223mm (W) x 102mm (H) x 283mm (D).
• External Control D-sub 25-pin, RS-232C & USB interface.

GOM-804 is a modern high precision Resistance Meter suitable for accurate low resistance measurements the GOM-804 also offers the ability to measure up to 5MΩ. The instruments display features a colour TFT-LCD screen for easy-to-read measurement results, each primary and secondary measurement result is displayed prominently on the display along with any corresponding settings. For sequential measurement results, such as those from the scan or binning function, are tabulated in an intuitive and easy-to-read format. In addition, the meters can recall previously used settings upon start up, allowing the meter to be ready the next time it used in a matter of moments. The meters can also save or recall up to 20 sets of function settings. Independent functionality keys and direction keys together increase the operational convenience which allows users to complete their measurement tasks with intuitive convenience and speed. For automatic testing The GOM-804 has a handler interface designed for automatic testing. The handler interface outputs the status of PASS, FAIL, HI, LO, READY and EOT signals and inputs a trigger control signal. Automatic testing is used with the binning, compare and scan functions. For computer control applications, RS-232 and USB interfaces are also available as standard.

• GOM-804 Unit
• GTL-308 4-Wire Kelvin Test Clip Set
