GW Instek GPP-7250

• 4.3” TFT LCD Display which supports its 8 built-in templet waveforms generation and display.

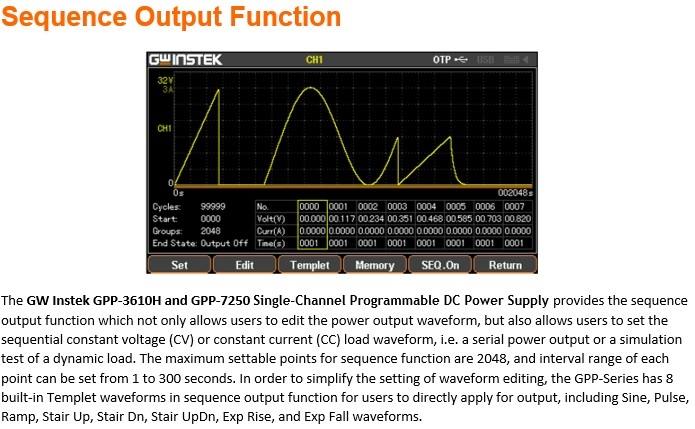

• Sequential output functions including Sine, Pulse, Ramp, Stair and Exponential rise & fall waveforms.
• Output recorder function records the output voltage and current to internal memory which can then be transferred to a USB Drive
• Selectable wide AC power supply options 100V, 120V, 220V or 230V.
• Over voltage & current protection, reverse polarity protection & Over temperature protection.
• RS-232, USB and LAN interface as standard and GPIB as an additional option.
• PC Software & USB & LabVIEW driver available as free downloads.
• Safety Requirements to IEC/EN 61010-1: 2001 Including European termination requirements.

The GW Instek GPP-7250 Single-Channel Programmable DC Power Supply is a benchtop, adjustable, multifunctional work stations. It provides 72V/5A power output. It offers a built-in maximum 72.5V constant voltage load (CV), maximum 5.2A constant current load (CC) and a maximum 1KΩ constant resistance load (CR) function so users can perform discharge tests without using an additional electronic load. The GW Instek GPP Series supports a 4.3” TFT LCD Display that offers a variety of display modes with Setting Values, measurement values and waveform displays. It also offers an output recording function, which records the voltage/current during the output process to its internal memory the results can be transfer to a USB flash drive. It also offers 8 built-in templet waveforms with sequential output functions including Sine, Pulse, Ramp, Stair and Exponential rise and fall waveforms. These waveforms can also be edited by the used for practical applications when different voltage waveforms are required

• GPP-7250
• 1 x GTL-104A,
• 1 x GTL-105A,
• Power Cord
• User Manual
