GW Instek GPT-15012

• Up to 12kV DC Withstand Voltage Test at max load 120W (12kV/10mA)
• The Insulation Resistance Test can be set between 50V to 5000V DC in 50V steps with Insulation Resistance measurements up to 50GΩ.
• Large 7-inch colour TFT LCD Display
• To help make tests more compliant with your relevant safety standards the GPT-15012 offers greater flexibility in the output sequence from the test start point to the end of the test cycle.
• The user can set the ‘Ramp Up’, ‘Test Duration’ and ‘Ramp Down’ time for the DC Withstand Voltage Test and the Insulation Resistance Test.
• A sweep mode function allows the user to create a graph of the DC Withstand Voltage Test and the Insulation Resistance Test.
• ARC detection, detects fast voltage or current transients that are not normally detected.
• Each manual (MANU) test the user sets up can be stored/recalled to/from one of 100 memory locations.
• Automatic (AUTO) tests allow you to link together up to 10 different MANU tests and run them sequentially.
• With the use a PWM switched power supply precise test voltage can be set without having to rely on the unit’s mains power voltage supply.
• The rear output terminals and indicator provide for safe and convenient for system integration.
• Start/Stop functions can be controlled remotely via the ‘Remote Terminal’ located on the front of the unit.
• The rear Signal I/O port can be used for pass/fail/test monitoring and the start/stop control/interlock.
• Integral over temperature, voltage and current protection protect the product to support long term use.
• Pass, Fail, Test, High Voltage and Ready indicators are all displayed on the 7-inch colour TFT LCD Display.
• Interlock function is a safety feature that is configurable by the user if it is set and the Interlock is left open the INTERLOCK OPEN will be displayed and the test will not start.
• Interface connections include remote terminal & USB A-Type for data storage at the front of the unit and RS-232C, USB B-Type port for remote control plus signal I/O to the rear. (GPIB is available as an option)

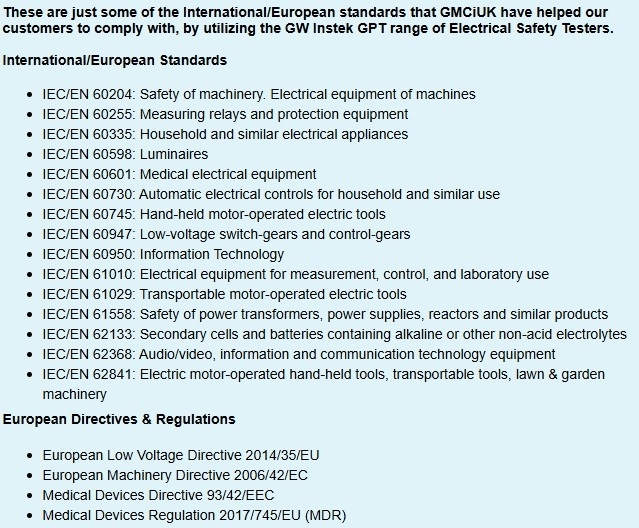

The GW Instek GPT-15012 offers 2 test functions including High Voltage DC Withstand Voltage Test at up to 12kV with an output capacity of 120W. Plus Insulation Resistance Test across 7 measurement ranges at up to 5000V DC with insulation resistance measurement up to 50GΩ. GPT-15012 is particularly suitable for the safety testing requirements of various high-voltage insulation products, such as energy storage/photovoltaic components, high-voltage relays. The GPT-15012 is a special High Voltage DC Withstand Tester within the GPT-10000 series. The GPT-10000 series are the first safety testers in the world to comply with IEC 61010-2-034 (Safety requirement for electrical requirement for measurement, control and laboratory use – particular requirements for measurement equipment for insulation resistance and test equipment for electric strength), which stipulates that the requirements of the software and hardware interfaces must be followed while designing high voltage and insulation resistance test and measurement instruments so as to ensure that users are provided with necessary protection and warning while using the instruments. To make tests more compliant with the relevant safety standards the GPT-15012 offers greater flexibility in the output sequence from the test start point to the end of the test cycle. The user can set the ‘Ramp Up’, ‘Test Duration’ and ‘Ramp Down’ time for the DC Withstand Voltage Test and Insulation Resistance Test.

• GPT-15012 unit.
• Quick start guide and user manual on CD
• GHT-120 x 1 Test lead set
• GHT-119 x 1 Remote terminal cable
• Power cord
• Interlock key
• Calibration Certificate
