GW Instek GPT-9803

• Up to 5kV AC Withstand Voltage Test at max load 200VA (5kV/40mA)
• Up to 6kV DC Withstand Voltage Test at max load 50W (5kV/10mA)
• The Insulation Resistance Test can be set between 50V to 1000V DC in 50V steps.
• For the ‘Withstand Voltage’ & ‘Insulation’ test the user can set the ‘Ramp Up’ and ‘Test Duration’ time.
• ARC detection, detects fast voltage or current transients that are not normally detected.
• Each manual (MANU) test the user sets up can be stored/recalled to/from one of 100 memory locations.
• Automatic (AUTO) tests allow you to link together up to 16 different MANU tests and run them sequentially.
• The GPT-9803 test sequence can be extended to 8, 16, 24 or 32 channels with the optional GW Instek GSB-01 Multiplex Scanner Box.
• With the use a PWM switched power supply precise test voltage can be set without having to rely on the unit’s mains power voltage supply.
• Start/Stop functions can be controlled remotely via the ‘Remote Terminal’ located on the front of the unit.
• The rear Signal I/O port can be used for pass/fail/test monitoring and the start/stop control/interlock.
• USB and RS-232C communication ports facilitate communication and the retrieving of test data via a PC connection.
• Integral over temperature, voltage and current protection protect the product to support long term use.
• Pass, Fail, Test, High Voltage and Ready indicators are all displayed on the Ice Blue Dot Matrix LCD Display.
• Interlock function is a safety feature that is configurable by the user if it is set and the Interlock is left open the INTERLOCK OPEN will be displayed and the test will not start.

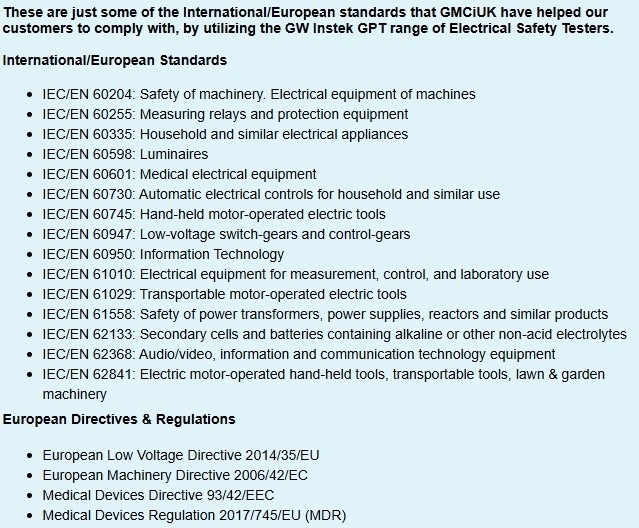

The GW Instek GPT-9803 AC/DC Withstand Voltage & Insulation Tester is designed for the testing of electrical devices and components according to various safety standards. It provides for ‘Withstand Voltage’ test of up to 5kV AC with a max output capacity of 200VA and a DC Withstand Voltage Tester of up to 6kV DC with a max output capacity of 50W. The Test voltage can be set between 50V to 5kV AC or 6kV DC and can be adjusted in 2V steps. The ‘Insulation Resistance’ test can be set between 50V to 1000V DC in 50V steps.

The 240 x 64 Ice Blue Dot Matrix LCD Display clearly shows the applied voltage, test parameters, test conditions, measurement value and test results all on the screen at the same time. The real-time status update on the LCD display accompanied by the multi-coloured LED status indicators on the front panel allow operators to have full visual control of the test process. The statue indicator above the high voltage output terminal will automatically flash when the output is present. In addition the function keys arranged below the LCD display provide convenient operation so that test functions can easily be changed with a single action.

The GW Instek GPT-9800 Series allows you to store up to 100 user defined manual (MANU) tests in up to 100 memory locations. The automatic (AUTO) test then allows you to link together up to 16 different MANU tests and run them sequentially in your own automatic test sequence. Furthermore, the GPT-9800 Series can be used in conjunction with the GW Instek GSB-01/02 Multiplex Scanner Box to test up to 32 channels. It is particularly well suited for multi-point safety testing in quality control systems.

• GPT-9803 unit.
• Quick start guide and user manual on CD
• GHT-114 x1 Test lead
• GHT-119 Remote Terminal Cable
• Power cord
• Interlock key
• Calibration Certificate
