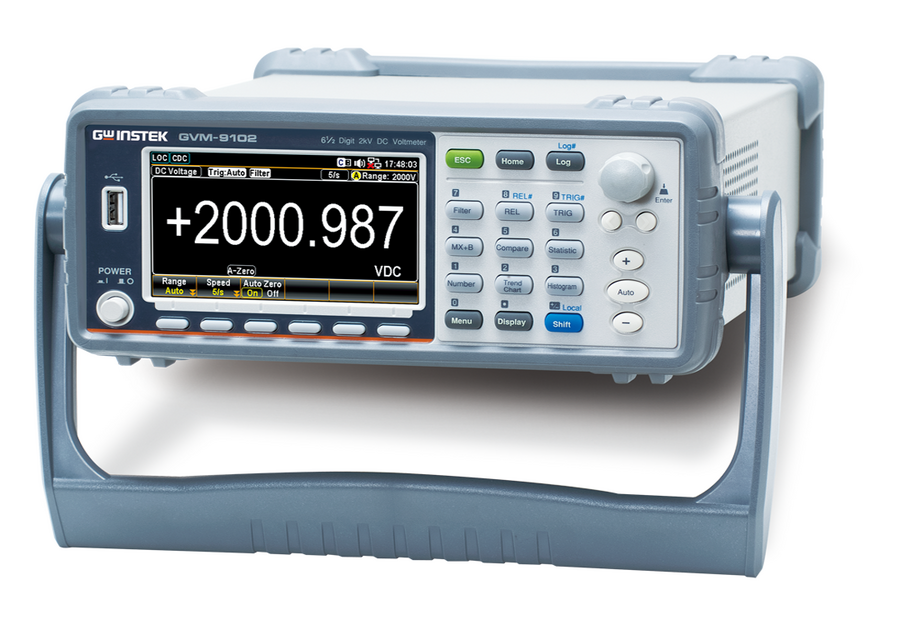

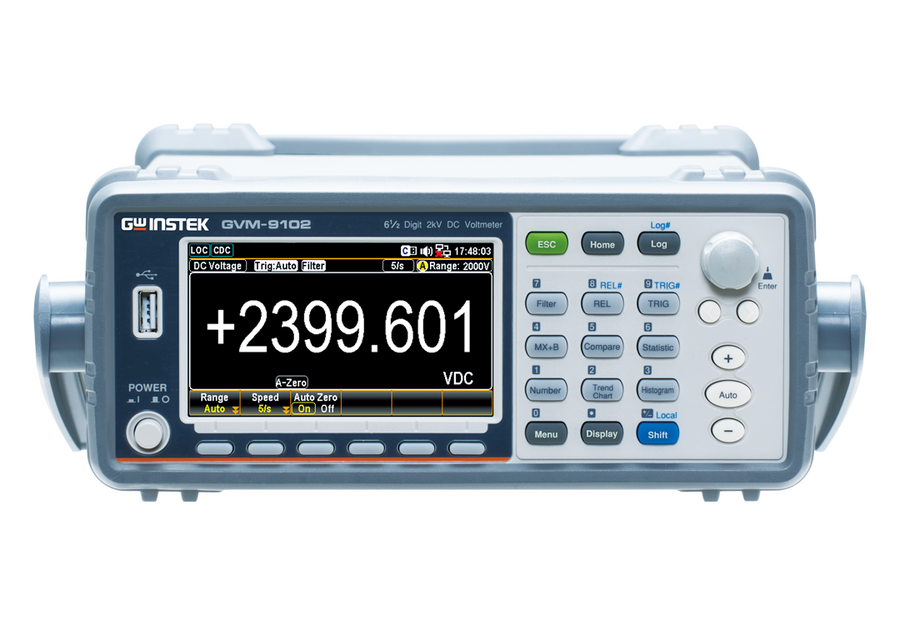

GW Instek GVM-9102

• Max 2,399,999-digit display count with 4.3-inch TFT graphical display.
• Precision DC voltage measurements up to 2,400V with a basic accuracy of 0.01%
• Fastest Sampling Rate of 10,000 Readings/Sec
• Math functions (dB, dBm, comparison, MX+B, 1/X and percentage), statistical functions (min/max/avg/P-P/STDEV)
• Graphic Display Capability, Providing Histogram, Bar Meter and Trend Chart.
• Internal memory: 100k read memory. For Data Logging use USB host port for connection to USB flash drive for data storage supports up to 128GB.

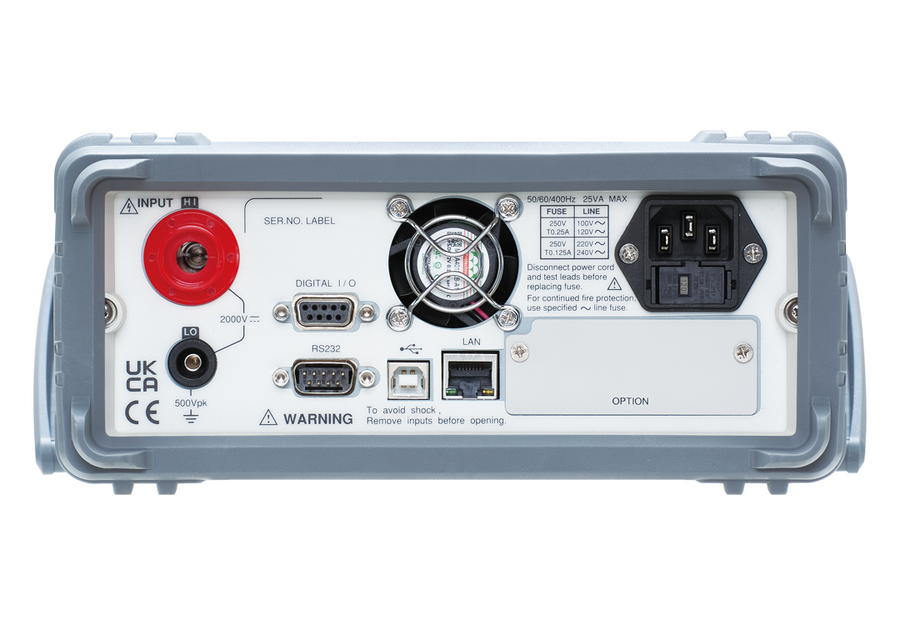

• Interface options include USB Host/Device, RS-232C, LAN, Digital I/O and optional GPIB.
• Power supply: Nominal AC Input voltage selection 100V, 120V, 220V or 240V ±10%, 50 Hz/60 Hz/400 Hz ±10%.

The GW Instek GVM-9102 is a dedicated DC Voltmeter with a 6½ Digit Display offering a max count of 2,399,999 taking each standard measurement range 20% further than its nominal range of 0…20.00000V, 200.0000V & 2000.000V. Offering high precision DC Voltage measurements with a basic accuracy of 0.01% across each nominal range and a sample rate of 10k/sec. This makes it ideal for accurate battery measurements, including high voltage battery packs. Large Photovoltaic (PV) systems voltage measurements at the inverter often up to 1500V. Electric Vehicles R&D evaluating high-voltage battery packs, traction inverters, and DC-DC converter efficiencies covering all applications up to 2,000V DC. The GVM-9012 also features math functions (dB, dBm, comparison, MX+B, 1/X and percentage), statistical functions (min/max/avg/P-P/STDEV). Interface options include USB Host/Device, RS-232C, LAN, Digital I/O and optional GPIB.

• GW Instek GVM-9102
• 1 x GTH-116R Test lead
• 1 x GTH-116B Test lead
• 1 x GTL-246 USB Lead
• Power Cord
