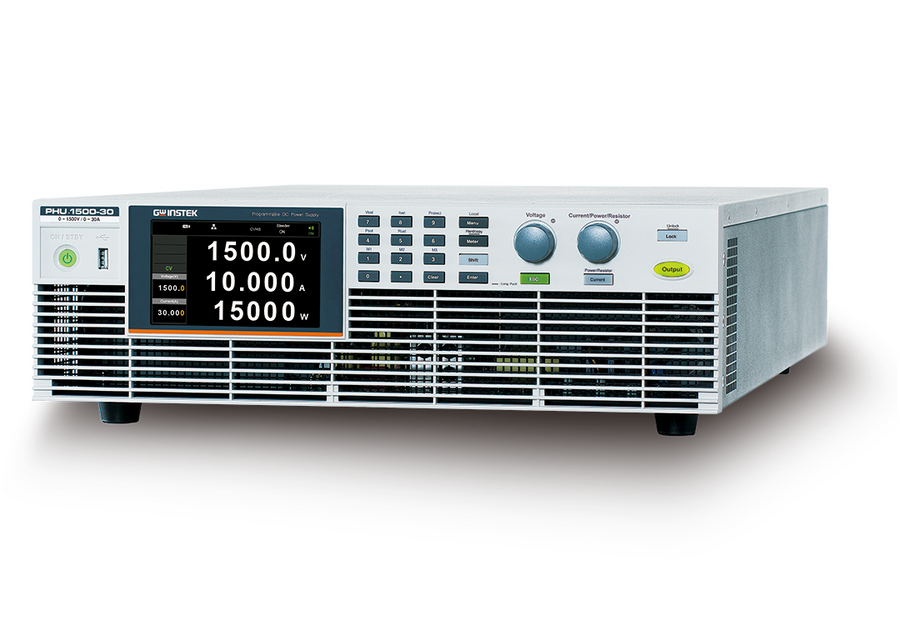

GW Instek PHU 80-510D

• The GW Instek PHU Series of DC Power Supplies offers a very compact 19” 1U Rack mount design.
• The PHU series offers 18 individual models to choose from all in a high-power density compact design. 3 power capacities of 5kW, 10kW & 15kW and 6 voltage ranges up to 1500V and current ranges up to 510A.
• Up to 10 x PHU Series units of the same voltage can be connected in in parallel to achieve higher current output requirements.
• The CV/CC priority selection of the PHU-Series is a very useful feature for DUT protection.
• The PSU has selectable slew rates for CC and CV mode. This gives the PSW power supply the ability to limit the current/voltage draw of the power supply.
• Standard Interface includes: LAN, USB, Digital I/O & Analogue Control Interface.
• Optional Interface includes: RS-232 & RS-485, GPIB, DeviceNet, CAN Bus, Isolate Digital I/O and Anybus riser (Factory Install).
• Advanced Web Server function allows the user to operate the device directly through a web browser without having to install complicated software or drivers.

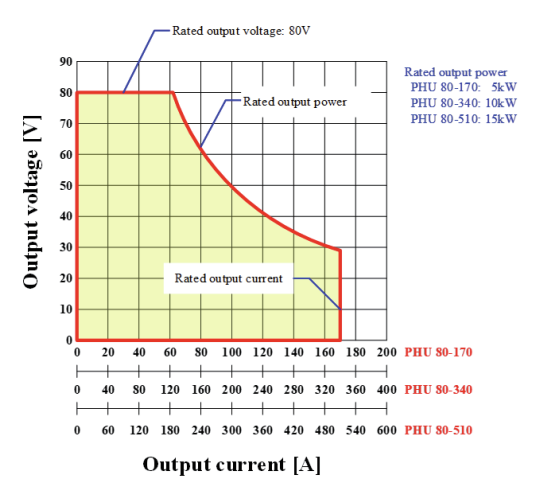

The GW Instek PHU 80-510D 19” Rack Mount Single Channel Programmable Switching DC Power Supply delivers precise, stable power with a compact, user-friendly design, making it the ideal choice for single-channel, high-accuracy testing within its stated voltage, current and power range. The PHU Series operate in Constant Current (CC) or Constant Voltage (CV) mode within a wide operating range limited only by the output power.

The PHU Series also offers a selectable slew rate for CC and CV mode. This gives the PSU-Series power supply the ability to limit the current/voltage draw of the power supply. Up to 10 x PHU Series units of the same voltage can be connected in in parallel to achieve higher current output requirements.

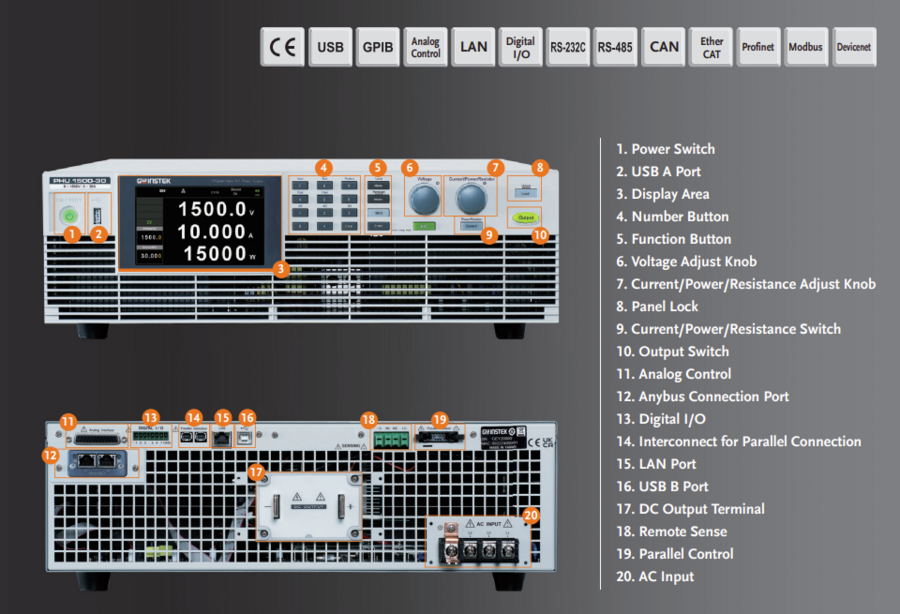

Other special features of the PHU Series include large 5” TFT LCD display that not only displays current, voltage and power but also settings, function and status including alarm features.

• 1 x Power Cord

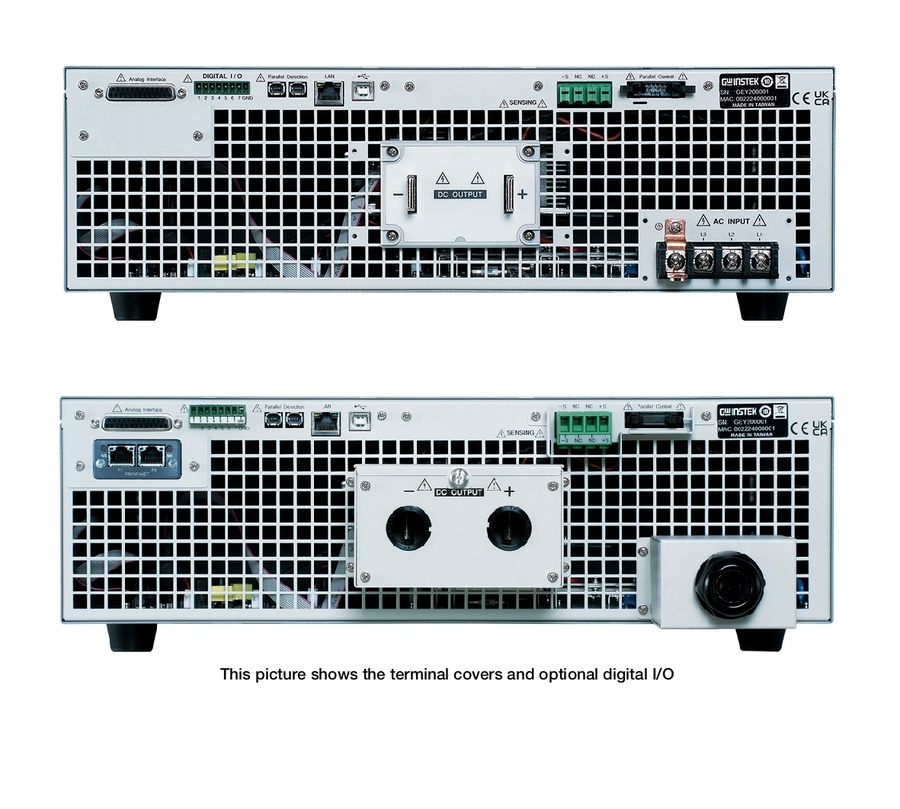

• 1 x Input/Output terminal cover
• 1 x Sensing connector and cover
• 1 x Digital I/O control connector
• 1 x Parallel control dummy connector
• DC Termination Screws
• Rack Mount Kit 2 x 3U Handles, 1 x 3U Left & Right Bracket
• 1 x Safety Guide
