GW Instek PSU 15-100

• The GW Instek PSU Series of DC Power Supplies offers a very compact 19” 1U Rack mount design.
• The PSU series offers 15 individual models to choose from all in a high-power density compact design.
• Multi-range Voltage & Current combinations from one single compact Power Supply.
• The CV/CC priority selection of the PSU-Series is a very useful feature for DUT protection.
• The PSU has selectable slew rates for CC and CV mode. This gives the PSW power supply the ability to limit the current/voltage draw of the power supply.

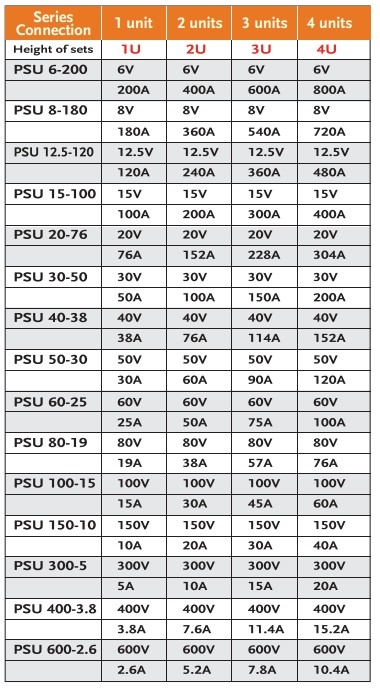

• Use the PSU individual units in parallel (up to 4 units) or series (up to 2 units) to increase the Voltage/current/power capacity to the required level.

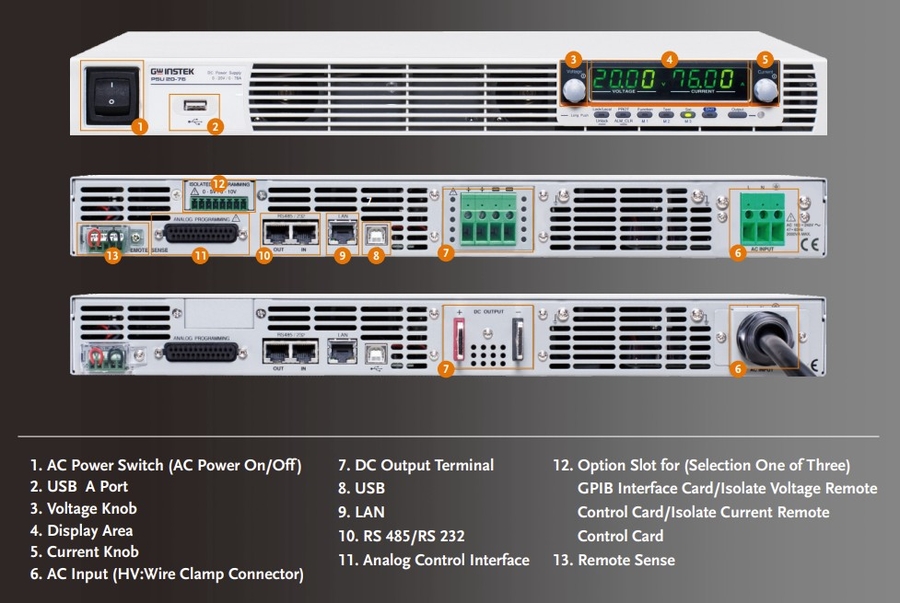

• Standard Interface: LAN, USB, RS-485/RS-232 & Analogue Control Interface
• Optional: GPIB Interface, Isolate Voltage Remote Control Card or Isolate Current Remote-Control Card
• LabView Driver

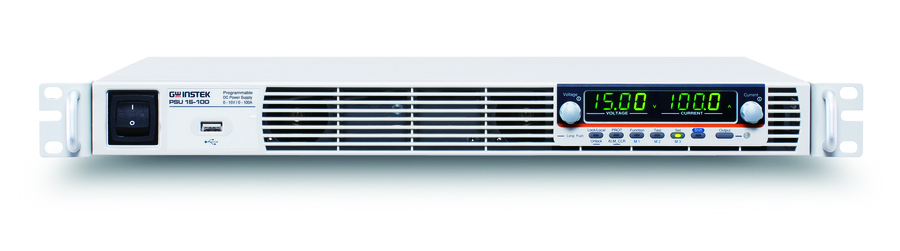

The GW Instek PSU 15-100 19” Rack Mount Single Channel Programmable Switching DC Power Supply delivers precise, stable power with a compact, user-friendly design, making it the ideal choice for single-channel, high-accuracy testing within its stated voltage, current and power range. The PSU Series operate in Constant Current (CC) or Constant Voltage (CV) mode within a wide operating range limited only by the output power.

The PSU Series also offers a selectable slew rate for CC and CV mode. This gives the PSU-Series power supply the ability to limit the current/voltage draw of the power supply. As the PSU-Series can be connected in series for maximum 2 units or in parallel for maximum 4 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. The PSU series offers 15 individual models to choose from all in a high-power density compact 1U hight 19” rack mount design. Making them ideally suitable for building into specialist test systems. With the added potential for series/parallel connected units the operational range is extended even further.

• 1 x Power Cord
• 1 x Output terminal cover
• 1 x Input terminal cover
• 1 x Analog connector plug kit
• Rack Mount Kit 2 x 1U Handles, 1 x 1U Left & Right Bracket
• 1 x Safety Guide & User Manual
