INNO Instrument SPA2000

• Power meter monitoring range up to 0…1000V AC/DC and 0…50A AC/DC.
• Max over load protection up to 0…1400Vrms and 0…70Arms.
• 4 Large bright 7 segment 5-Diget LED displays for the simultaneous display of your chosen measurement variables.
• 6 current measurement ranges from 0…1.0000A to 0…50.000A plus AUTO range.
• 7 voltage measurement ranges from 0…15.000V to 0…1000.0V plus AUTO range.
• Peak Hold Function – The maximum values for voltage, current, active power, reactive power, and apparent power can be held in 4 different modes RMS, MEAN, DC and PEAK.
• D/A output option can be used to output a proportional voltage signal (±5V) suitable for external data loggers.

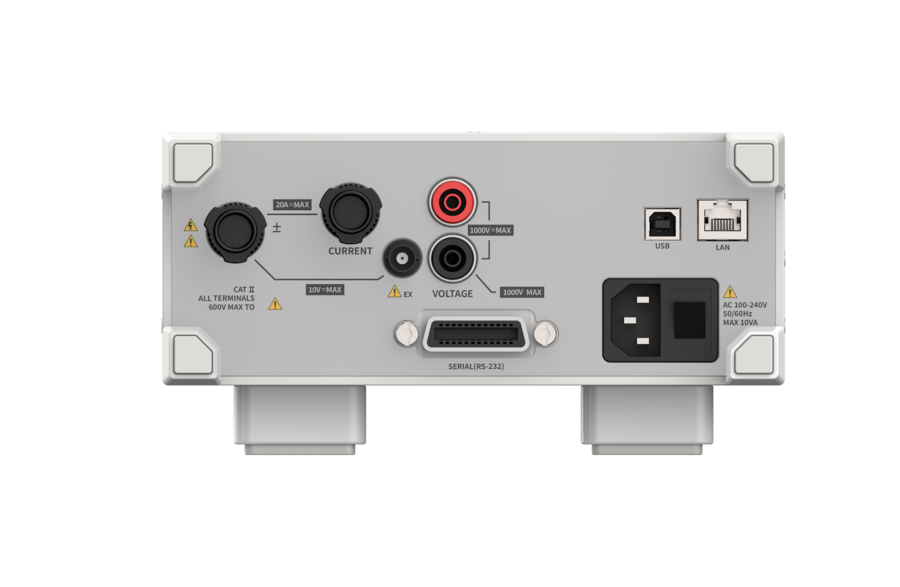

• Rear m4 terminal input for voltage measurements and rear screw terminal for up to 50A.
• Basic accuracy for DC voltage, current and active power ±0.1% reading ± 0.05% range
• Basic accuracy for AC voltage, current and active power ±0.1% reading ± 0.05% range
• Standard interface includes GP-IB, USB & LAN
• Suitable for CAT II 1000V application.

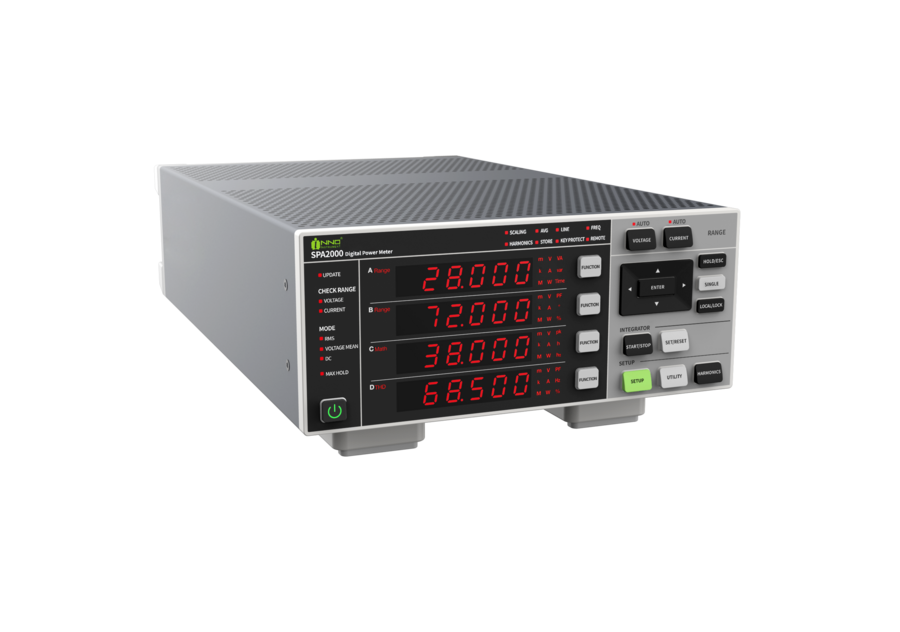

The INNO Instrument SPA2000 Digital Power Meter is designed to monitor all of the power variables of single-phase AC, DC or AC/DC power system. Monitoring direct input levels up to 1000Vrms and current up to 50Arms.

The INNO Instrument SPA2000 Digital Power Meter provides as many as 22 standard power measurement parameters, including Voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, integrated current, integrated power, positive integrated power, negative integrated power, integration time, voltage peak, current peak & power peak.

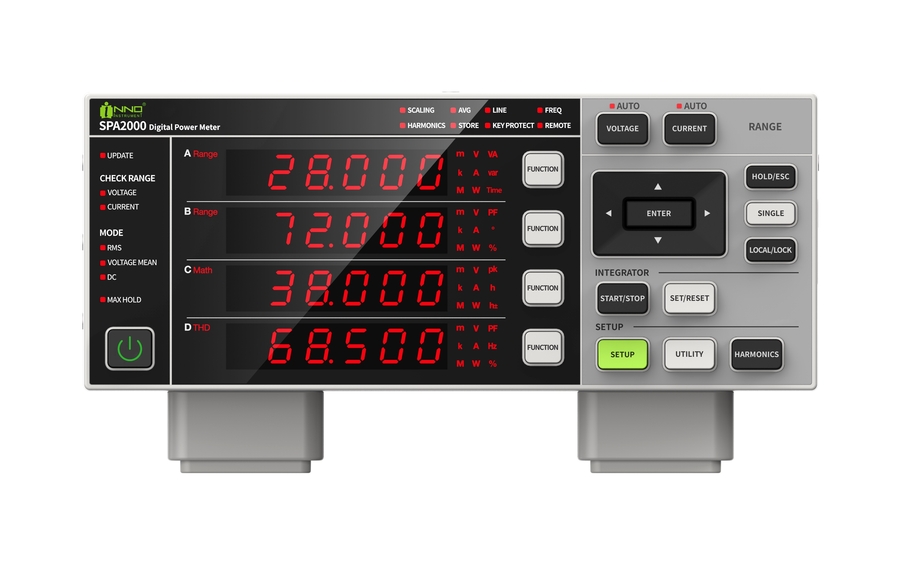

The 4 large 5-digit LED displays allow you to display the measurement parameters that are important to you, you may wish to display Voltage, Current, Frequency & Power. You can quickly change the measurement being displayed just by scrolling through the function button at the side of each display. Power integration mode also allows you to monitor energy consumed over set time periods up to 10,000 hours its ideally suited for monitoring energy consumption of a product through a set cycle or even standby power monitoring.
