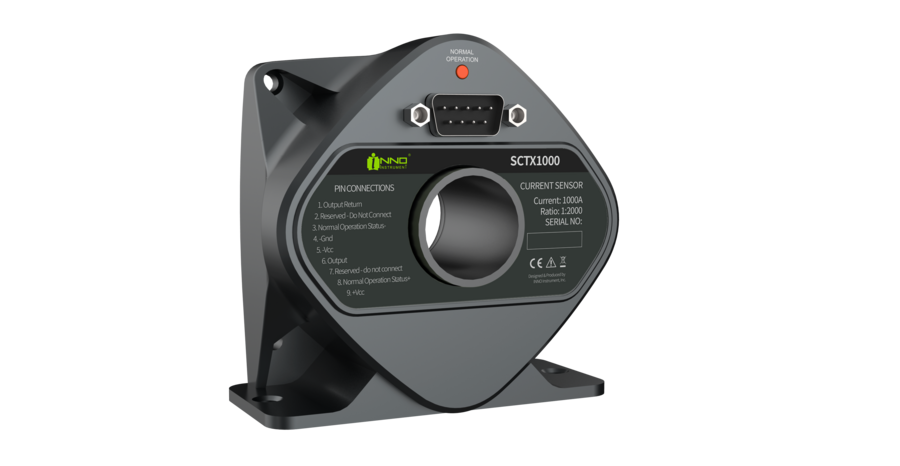

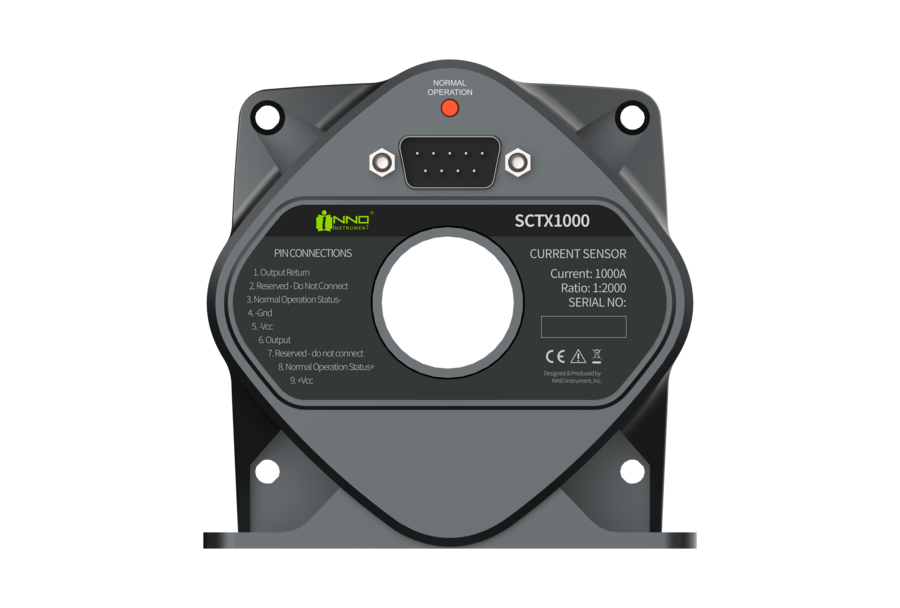

INNO Instruments SCTX1000
Pass-through Current Sensor - Max Current 1000A Accuracy 0.008% - 31mm Diameter Aperture
The INNO SCTX1000 Pass-through sensor design delivers excellent stability along with higher accuracy levels.
It offers a current measurement range of 0-1000A with a measurement bandwidth of DC-300kHz at an accuracy of ± (0.008% of rdg + 10μA). Power supply ±15V~±24V. Max primary current cable diameter is 31mm.
