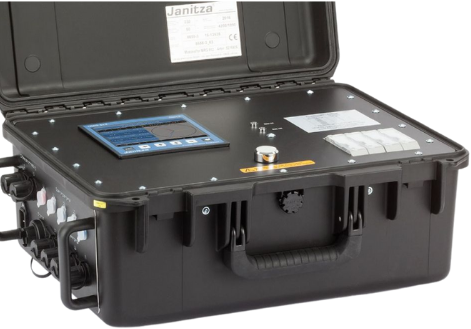

Janitza MRG 512-Pro PQ Flex
Portable Case Power Quality Analyser – Class A Records at 25.6kHz, U/I harmonics up to 63rd
The Janitza MRG 512-Pro PQ Flex is a Portable Power Quality Analyzer – Measurement Class A. It is supplied with Rogowski coils for simple connection and accurate measurements. The measurement/recording unit at the heart of this portable unit is the Janitza UMG 512 Pro PQA. It continuously records at 25.6kHz with memory capacity up to 2 years. Its user-friendly, colour graphical display with intuitive user guidance provides a window for the monitoring of 'Power Quality Problems'. It is compliant to the latest IEC61000-4-30 standard and to the highest measurement category Class A. Enabling permanent monitoring to EN 50160 which stipulates the characteristics of electricity supplied by public distribution networks.
What we like:
It’s the overall packed including the strong portable carry case along with the flexible Rogowski coils plus at its heart we have the Janitza UMG 512 Pro PQA. Leave this unit on site to record all of the parameters required to analyse the sites power quality performance. The Ethernet connection point on the carry case allows you to connect your PC/Laptop to the internal web server within the Janitza UMG 512-Pro this will then provide a wide range of data in a clear format. The user does not need to install any software on their PC; a standard web browser is sufficient.
It’s also supplied with GridVis® software as a free download, this provides the energy you with the ability to produce historic, even annual quality compliant based reports to EN 50160.
