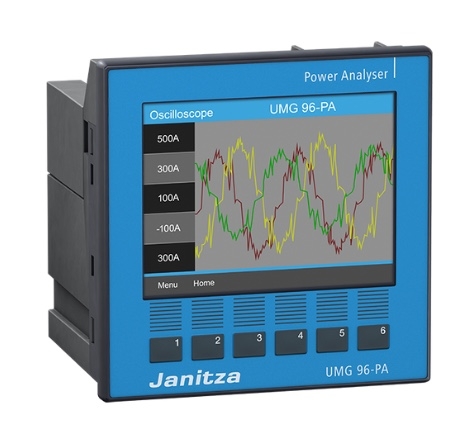

Janitza UMG 96-PA

• Compact Panel Meter with 96mm x 96mm profile x 87mm deep case design.
• Full-wave event measurements can be shown and analysed directly on the colourful graphic display.
• The device samples continuously at 8.13kHz and calculates all effective values over a 200ms interval.
• Energy measurement: Class 0.2S accuracy when used with 5A secondary CT’s.
• Fundamental operating frequencies include 50Hz & 60Hz
• Standard industrial RS485 interface with Modbus RTU Communication.
• Complies with EN61010 Safety Standard.
• Measurement Safety Category CAT III 600V.

The Janitza UMG 96-PA is a Panel Mount Power Analyzer. It is suitable for power distribution and sub-distribution systems within Building Management and Light Industrial Installations. For current monitoring it utilises standard AC current transformers with either 1A or 5A secondary outputs. It offers a high accuracy class of 0.2% for voltage and current monitoring and class 0.2s for active energy when used with 5A secondary CT’s. Full-wave event measurements can be shown and analysed directly on the display operated via 6 function buttons, this includes oscilloscope overviews of both current and voltage waveforms plus harmonic level displays up to the 40th Harmonic. Its user-friendly, 6 button operational colour graphical display with intuitive user guidance provides a window for the monitoring and analysing energy consumption and electrical parameters in various industrial and building management systems.

• UMG 96-PA (5232001)
• All connection terminations required for installation
• Installation manual
• Mounting kit
