Janitza UMG 96-PQ-L

• Compact Panel Meter with 96mm x 96mm profile x 87mm deep case design.
• Full-wave event measurements can be shown and analysed directly on the display.
• Informative displays show peak demand indication, event capture for events longer than 20ms plus harmonics up to the 65th.
• The device samples continuously at 13.67kHz and calculates all effective values over a 200ms interval.
• It’s supported by 64MB memory, which thanks to a special data compression method, ensures several years’ worth of storage.
• Energy management: Class 0.2S accuracy
• Fundamental operating frequencies include 50Hz & 60Hz
• Standard industrial RS485 interface with Modbus RTU Communication.
• Complies with EN61010 Safety Standard.
• Measurement Safety Category CAT III 600V.

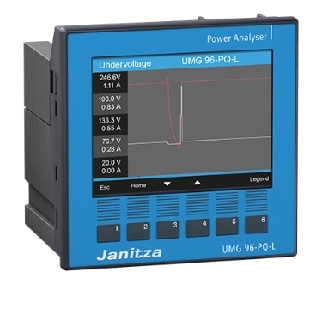

The Janitza UMG 96-PQ-L is a Panel Mount Power Analyzer. Is suitable for power distribution and sub-distribution systems within Building Management and Light Industrial Installations. It offers a high accuracy class of 0.2s. For current monitoring it utilises standard AC current transformers with either 1A or 5A secondary outputs. Full-wave event measurements can be shown and analysed directly on the display, this includes peak demand indication and event capture for events longer than 20ms plus harmonics up to the 65th. It’s supported by 64MB memory, which thanks to a special data compression method, ensures several years’ worth of storage. Its user-friendly, 6 button operational colour graphical display with intuitive user guidance provides a window for the monitoring and analysing energy consumption and electrical parameters in various industrial and building management systems.

• UMG 96-PQ-L (5236001)
• All connection terminations required for installation
• Installation manual
• Mounting kit
