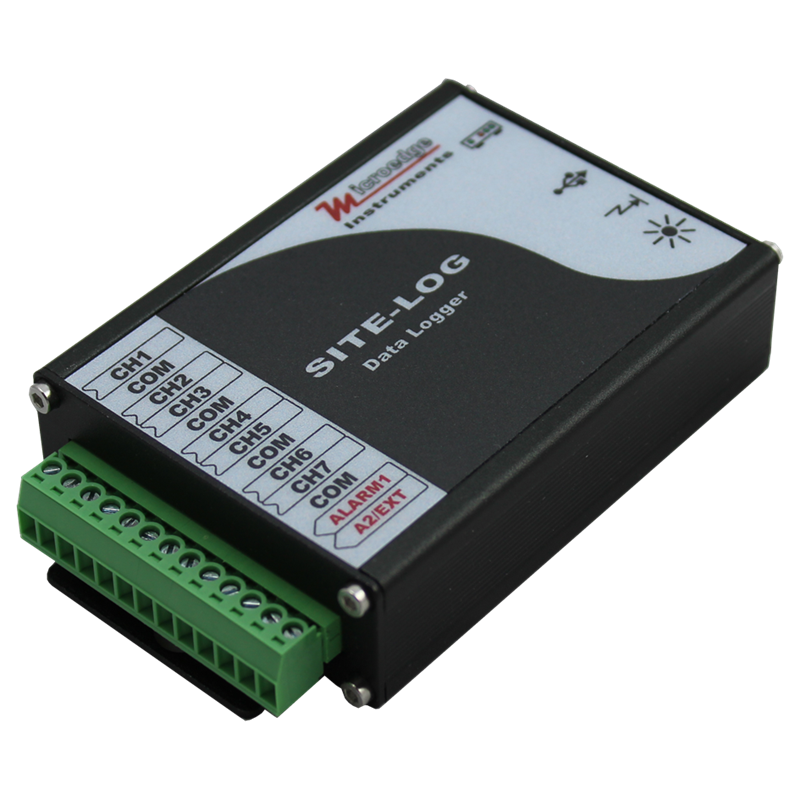

Microedge Site-Log LPTM-1

• Robust industrial enclosure suitable for harsh environments
• Easy to configure and download date
• High resolution accurate recordings
• Battery operated and can last up to 10 years
• Records up to 2,000,000 data points

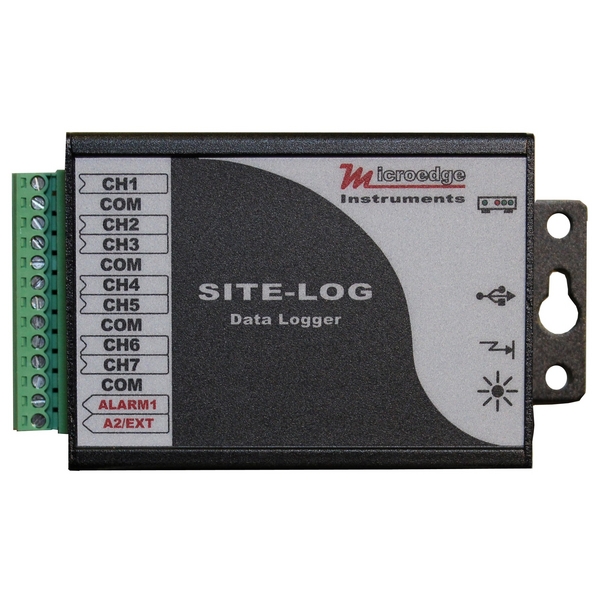

• Fixed or quick release mounting options
• Down load date to CSV, Text or JPG
• Alarm display and notification.
• Interface via USB, Serial Port, Modem or Ethernet.

The Microedge range of industrial data loggers are housed in a strong aluminium case, designed to be used in harsh environments, and suitable for either permanent site fixing or quick fit portable applications. A 16-bit analogue to digital converter offers high-resolution accurate measurements making the unit suitable for all types of process, industrial and laboratory monitoring applications.

The data loggers are battery operated via a 3.6V lithium battery this supports data logging with sample rates down to 5 seconds, at a sample rate of 1 minute the data loggers battery life would be over 10 years! Programmable sample rates down to 20 milliseconds are possible when the data logger is powered by an external 5V DC power supply (via its USB or Serial Port).

Connects are made via screw terminals and a quick plug and play USB connection means you are up and running within a few minutes.

Data is stored on non-volatile flash memory, you simply connect the Data logger to a PC/Laptop via its USB port and the SiteView software automatically recognizes the data logger, you can then configure the unit or download date which can then be view via table or graphs in real time. Stored data can also be exported to many file formats including CSV, TEXT or JPG.

The SiteView software (SiteView software is not included with each logger, see accessories) is a windows based application and can be interfaced with the Microedge Industrial Data loggers via USB, Serial Port or Modem.  Additionally an Ethernet connection can be made through a USB Network Server.  Alarm condition monitoring is also possible..

• Microedge LPTM-1 Site-Log Data Logger
• 3.6V Lithium Battery
• USB Cable

(SiteView software is not included with each logger, see accessories)
