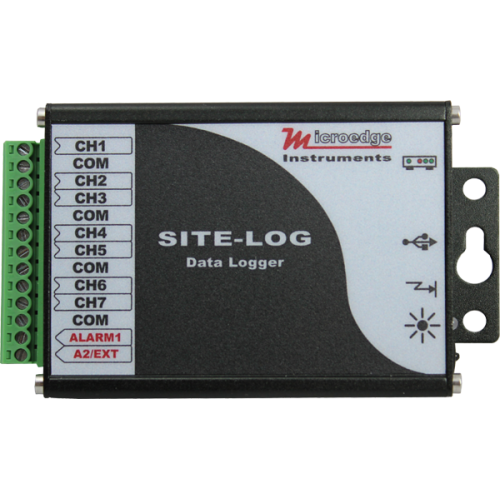

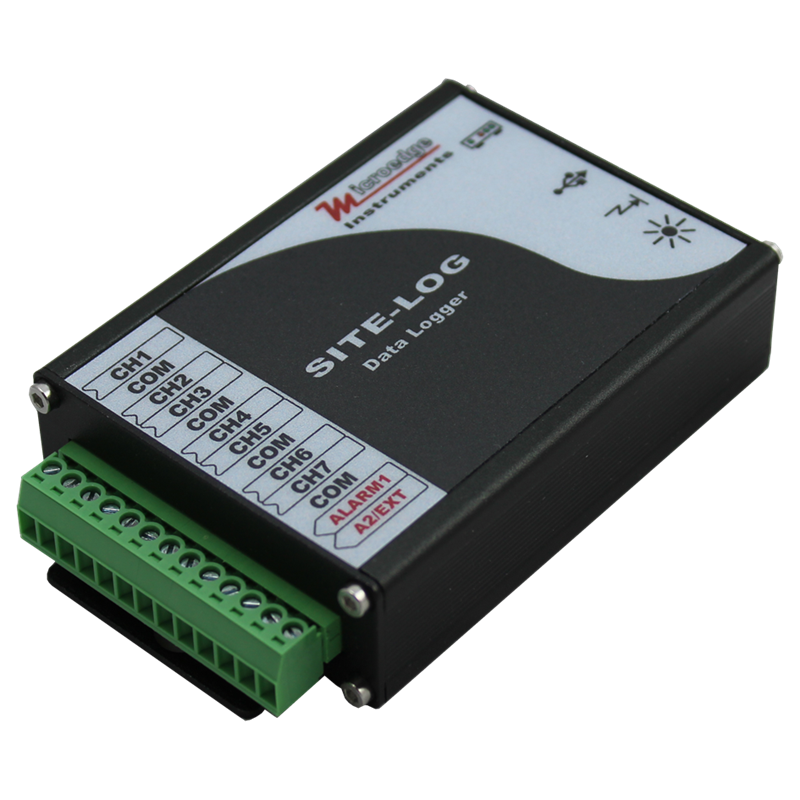

Microedge Site-Log LPV-1
Multi-Channel Data Logger – DC Voltage Range Selection 0…5V or 0…20V
The Site-Log LPV-1 is an industrial 7-channel, battery powered, DC Voltage data logger. Each channels range can be programmed for either 0…5V or 0…20V via the SiteView Windows based software. With programmable sample rates down to 20 milliseconds when powered by an external 5V DC power source and down to 5 seconds when powered by its internal battery. There is also an additional 8th channel that can be switched on for monitoring ambient temperature from -40°C to + 70°C. The recorded date from all 8 channels is saved to the 4MB non-volatile flash memory for later retrieval.
The DC Current measurement channels are connected via a pluggable terminal block for easy wiring; the unit features an aluminium enclosure and conformal coating PCB and thus the logger has excellent performance in the harshest industrial environment.
