PowerLogic PM8000

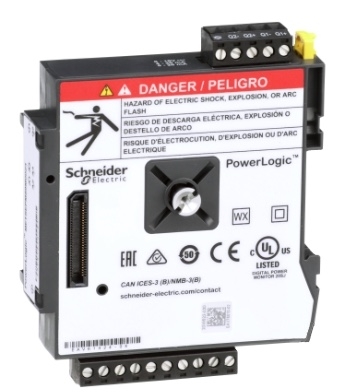

I/O Module - Analogue - 4 inputs + 2 outputs
The optional Analog Input/Output Module is designed for use with PowerLogic PM8000, ION7400 and ION9000 meters, providing additional analogue inputs and outputs for monitoring, measurement and integration with external systems. The module features four analogue inputs, supporting 0–20mA, 4–20mA and 0–30V signals. It also includes two analogue outputs, making it suitable for interfacing with Building Management Systems (BMS) and other control or monitoring systems. The analogue outputs support 0–20mA, 4–20mA and 0–10V signals. Analogue inputs and outputs are sampled by the host meter at a rate of half a cycle (approximately 8–10ms), allowing for fast and responsive signal monitoring. The module mounts directly to the side of the meter and provides connections for control power and the interface bus. Up to four input/output option modules can be installed on each compatible meter, providing flexibility to expand the meter's monitoring and control capabilities as required.
