PowerLogic PM8000

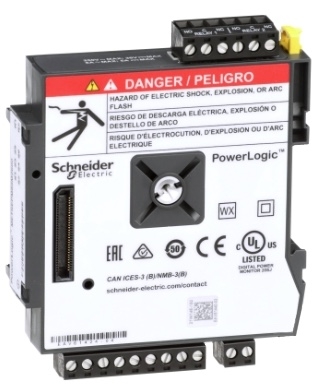

I/O Module - Digital - 6 Inputs + 2 relays outputs
The optional Digital Input/Output Module is designed for use with PowerLogic PM8000, ION7400 and ION9000 meters, providing additional digital inputs and relay outputs for enhanced monitoring and control. The module features six digital inputs, supporting signals up to 30VAC or 60VDC. Inputs can be powered using the module’s built-in wetting source or connected to a suitable external source. It also provides four relay outputs, which can be used for equipment status indication and control applications. The relay outputs are capable of switching loads of up to 8A at 240VAC. The module mounts directly to the side of the meter, providing connections for control power and the interface bus. Up to four input/output option modules can be installed on each compatible meter, allowing the system to be configured to meet specific monitoring and control requirements.
