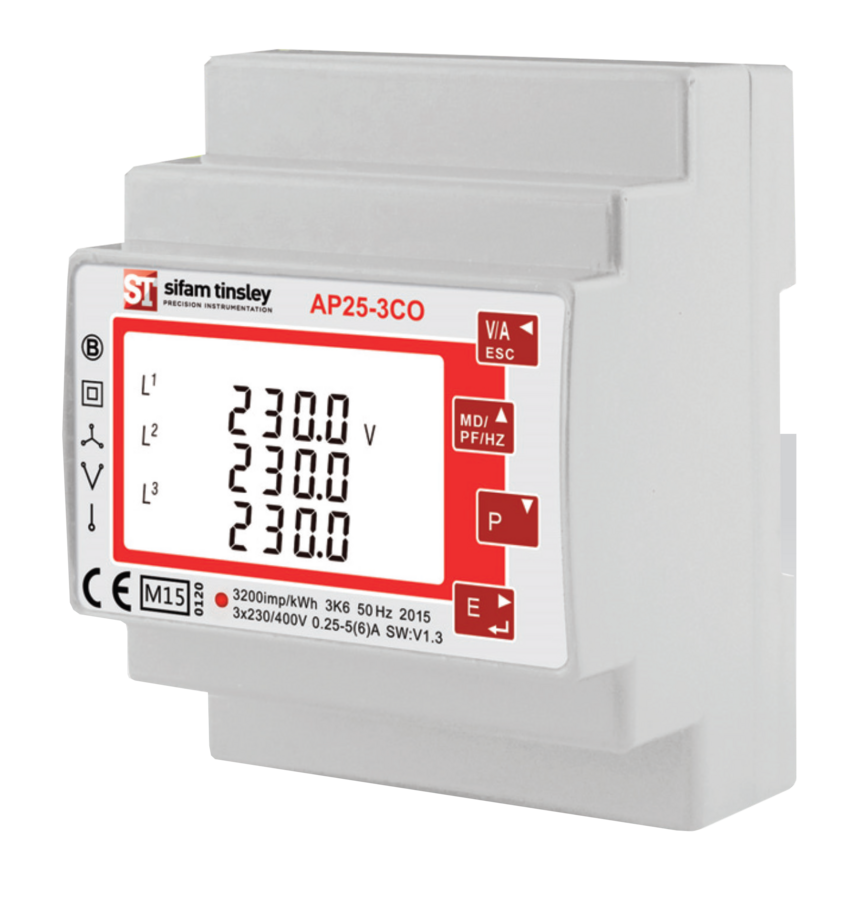

Sifam Tinsley AP25-3CO
The Sifam Tinsley AP25-3CO is a MID Certified rail mount three phase AC Energy Meter suitable for both three phase three wire and three phase four wire systems, with nominal voltages of 230V phase to neutral and 400V Phase to Phase. Current measurements are via suitable 1A or 5A secondary rated current transformers. Due to its MID Certification, it is suitable for tenant billing applications.
This new generation of energy monitoring instruments utilise the latest microprocessor-based technology and is certified and tested for accuracy Class 1. It also offers both pulsed outputs and RS485 Modbus RTU and is thus fully compatible for integration into building management and remote monitoring systems. It monitors up to 16 power and energy input/output variables. Key measurement/display variables include; voltage, current, frequency, power, max power demand, power factor, active energy import & export and reactive energy import & export plus hours run.
Two versions are available. The standard version without MID certification for general energy monitoring applications and the MID approved product suitable for billing applications in tenanted buildings.
