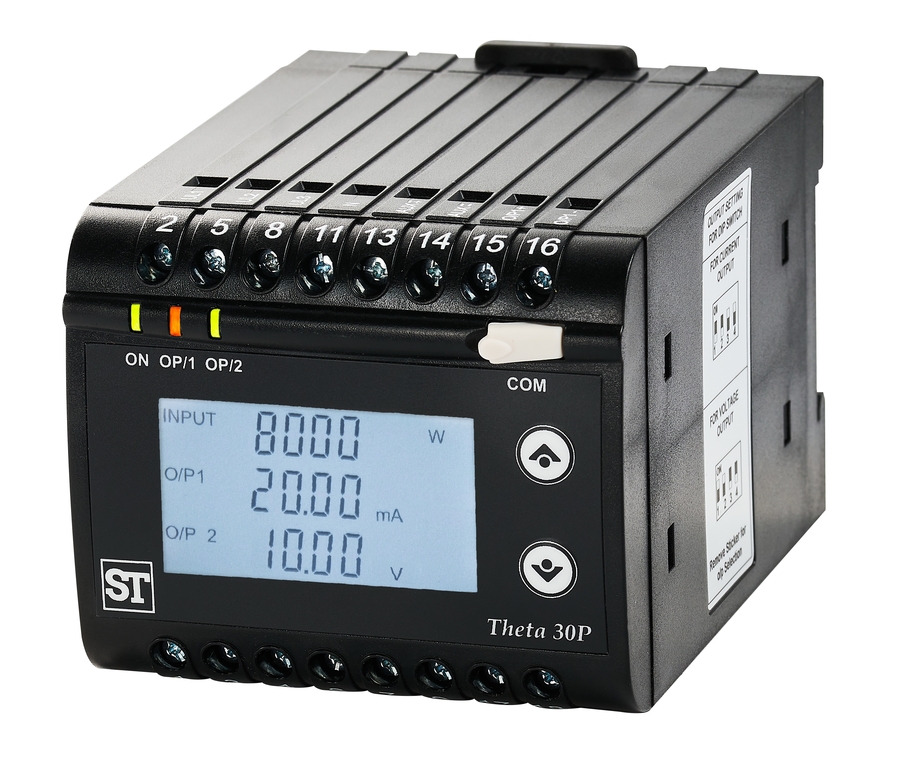

Theta 30P

• True RMS Measurements.
• AC Current input options can be programmed for 1A or 5A CT secondary inputs from standard current transformers with a primary rating from 1A to 9999A
• Nominal input voltage range 100…500V. Unit can also be programmed for VT Ratio’s between 100…692kV.
• There are three programmable standard output signals to choose from 0…20mA, 4…20mA or 0…10V DC.
• Accuracy Class 0.2 to EN 60688.
• Output response time 750ms
• Wide range power supply 60…300V AC/DC.
• Optional RS485 Modbus/RTU communication for reading measured parameters & onsite configuration of input/output parameters.
• Compact 78.5mm wide robust rail mount modular housing.
• Transducers case is made from flame retardant polycarbonate with a UL-94 V0 rating.
• Complies with EN61010-1 Safety Standard.
• Each transducer is protected with a 12-month warranty.

The Theta 30P AC Power Transducer is a single-phase or three phase din rail mount AC Power Transducer with high-contrast backlit digital display. This transducer converts the AC measured variable into a proportional analogue DC output. AC input options can be programmed for 1A or 5A CT secondary inputs from standard current transformers with a primary rating from 1A to 9999A. Nominal input voltage range 100…500V and programmable VT Ratio’s between 100…692Kv. Programmable DC outputs include 0…20mA, 4…20mA or 0…10V. Programming can either be carried out via the two push button keys on the front display panel, via the front programming port with programming adaptor & PC software or via the optional RS485: Modbus/RTU communication.

The transducer is offered with a standard wide power supply of 60-300V AC/DC.

The isolation system meets the requirements of EN61010-1 and for extra safety the transducers case is made from flame retardant self-extinguishing, non-dripping, halogen free polycarbonate with a UL-94 V0 rating.

• Theta 30P - TT30-P38F75HDZZ
