VariTrans A 21000 P0/00 Signal Conditioner with 24V DC Bus Option
Signal Conditioner with Input/Output options 0…20mA, 4…20mA or 0…10V. Ultra slim 6.2mm wide case. With DIN rail bus connection
Signal Conditioner with Input/Output options 0…20mA, 4…20mA or 0…10V. Ultra slim 6.2mm wide case. With DIN rail bus connection
| Model: | VariTrans A21000 P0/00 | |
| Order Code: | A21016 P0/00 | |
| Input: | 0/4...20mA | |
| Output: | 0/4...20mA | |
| Power Supply: | 20...253V AC/DC | |
| Case Width: | 6.2mm | |

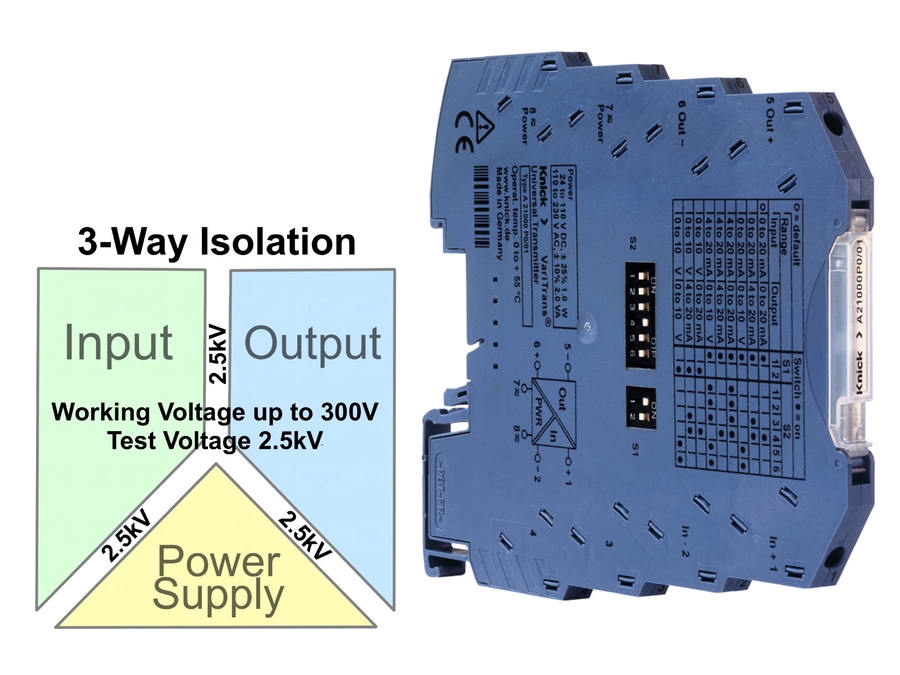

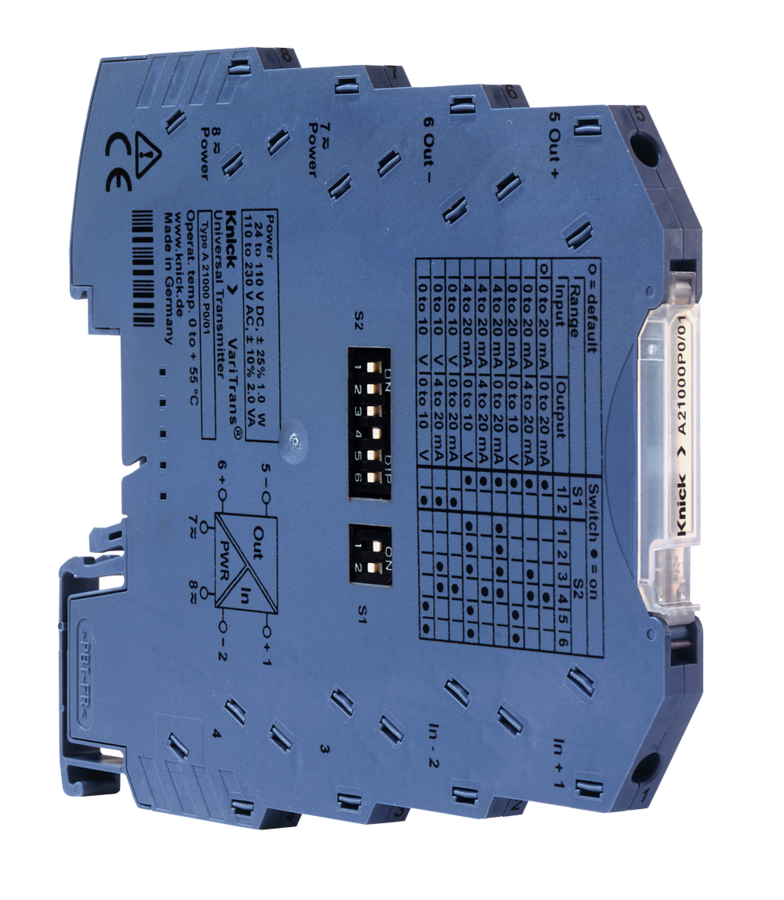

The Knick VariTrans A 21000 P0/00 Signal Conditioner meets the isolation requirements of EN61010-1 at 300V AC/DC and protection against electric shock with protective separation to EN 61140 at up to 300V AC/DC. The unit’s auxiliary power supply requirement is 24V DC and this can also utilize the 24V DC DIN rail bus connection system. The unit is all housed in an ultra slim 6.2mm wide DIN rail mount case. There are 9 fixed unipolar ranges to choose from based around popular process signals
What we like:

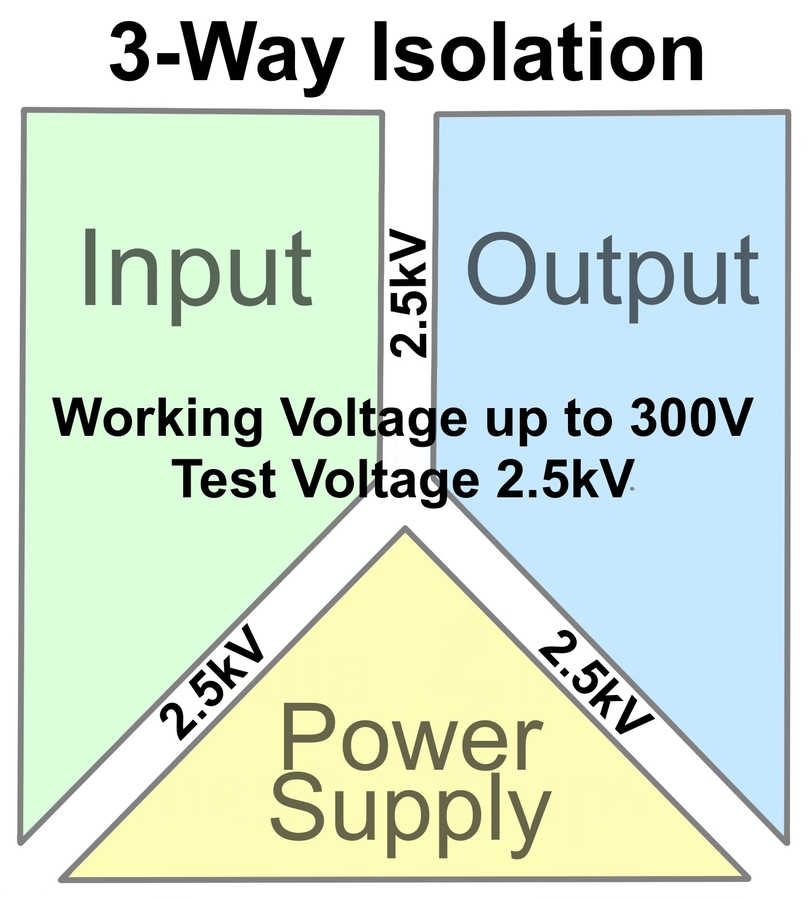

The Knick VariTrans A 21000 P0/00 Signal Conditioners key feature is that it can utilize the 24V DC DIN rail bus connection system saving lots of wiring in multi signal conditioner applications. They also offer reliably 3-way galvanic isolation between input, output and power supply with maximum long-term stability that’s backed up by a 5-year warranty.
