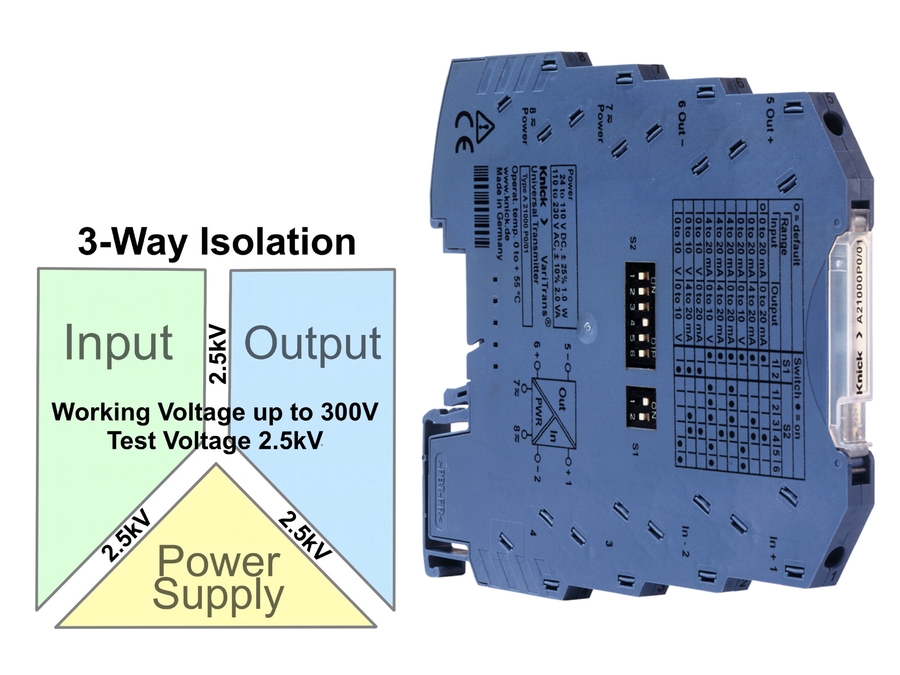

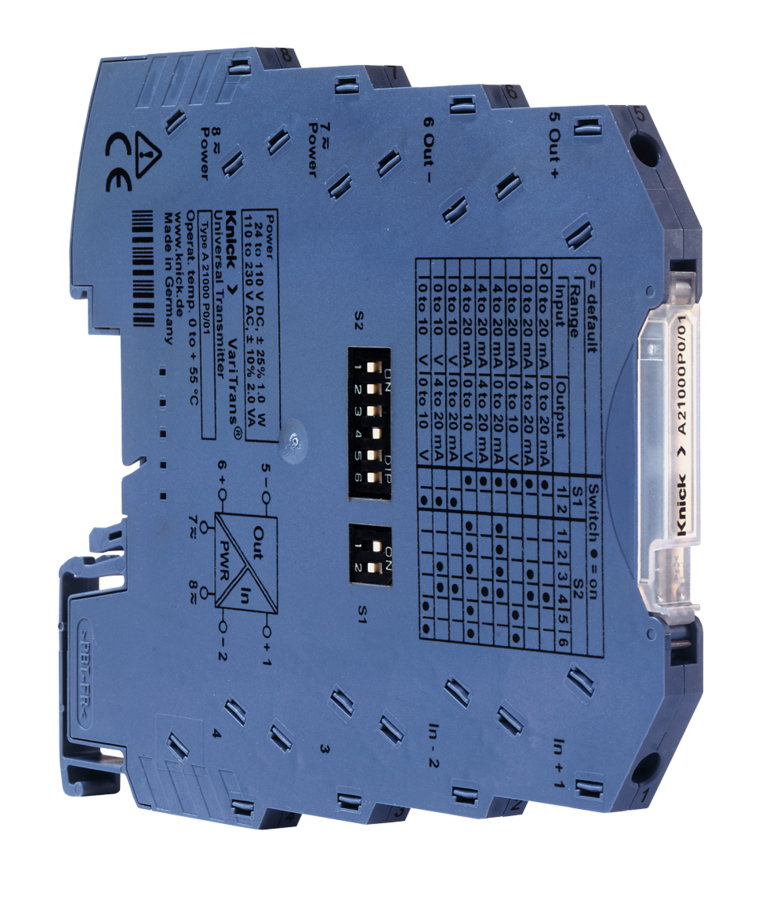

VariTrans A 21000 P0/01 Signal Conditioner

• 8 Standard fixed signal input/output combinations to choose from.
• Basic accuracy is better than 0.3%.
• Wide range auxiliary power supply from 24…110V DC & 110…230V AC.
• Ultra slim 6.2mm wide DIN rail mount case.
• Fixed Screw Terminal Connection.
• Complies with EN61010-1 Safety Standard.
• Protection against electric shock is achieved through protective separation according to EN 61140.
• Maximum long term stability of isolation properties are backed up by a 5 year warranty.

The Knick VariTrans A 21000 P0/01 Signal conditioners isolation system meets the requirements of EN61010-1 1000V AC/DC and protection against electric shock with protective separation to EN 61140. The unit offers a wide range auxiliary power supply from 24…110V DC & 110…230V AC and is housed in an ultra slim 6.2mm wide DIN rail mount case.

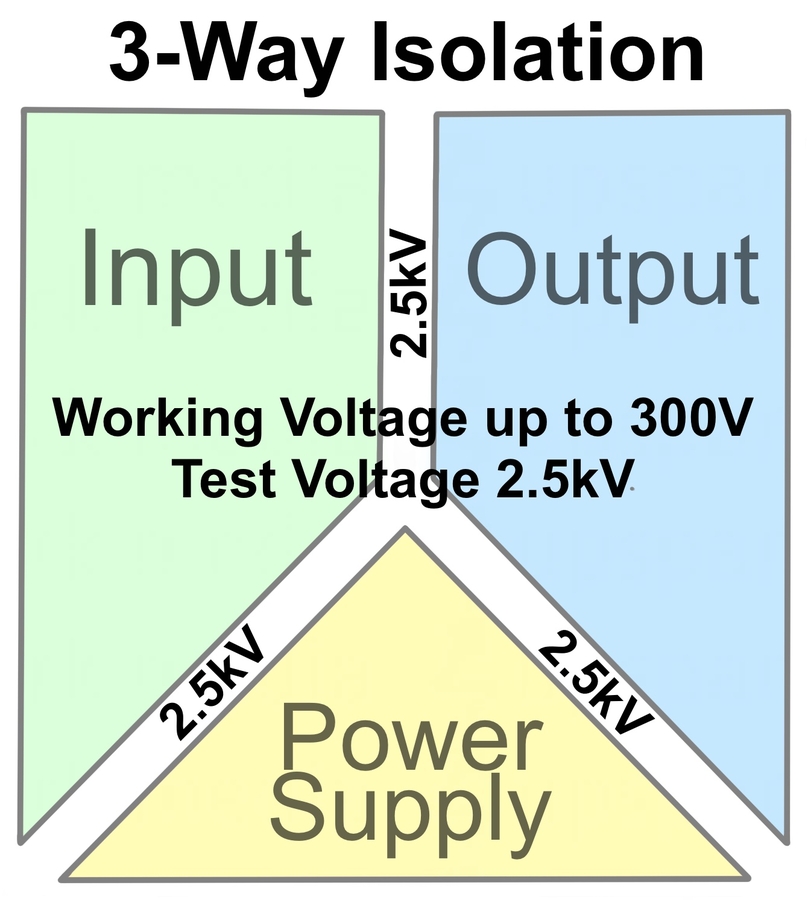

The isolation system meet the requirements of EN61010-1 and protective separation to EN61140 by reinforced insulation according to EN61010-1. To guarantee the specified isolation capabilities devices are subjected to routine testing of up to 2.5kV AC to ensure working voltages up to 300V AC/DC. Protection against electric shock is achieved through protective separation according to EN 61140 between input and output and power supply. There are 8 fixed unipolar ranges to choose from based around popular process signals.

There are 8 popular fixed input/output options available
