VariTrans P 27000 Signal Conditioner

• 7 Fixed signal input/output combinations to choose from.
• High accuracy device with a gain error of less than 0.08%.
• Wide range auxiliary power supply from 20 to 253V AC/DC.
• Very narrow 12.5 mm wide yet robust modular housing.
• Fixed Screw Terminal Connection (F1 range) or Plug in Screw Terminal Connection (H1 range).
• Complies with EN61010-1 Safety Standard.
• Working Voltage up to 1000V with overvoltage category II and pollution degree 2 according to EN61010-1
• Protection against electric shock is achieved through protective separation according to EN 61140.
• Maximum long-term stability of isolation properties is backed up by a 5-year warranty.

The Knick VariTrans P 27000 Signal conditioners isolation system meets the requirements of EN61010-1 1000V AC/DC and protection against electric shock with protective separation to EN 61140. Its packaged in a robust yet narrow 12.5mm wide rail mount housing with a wide range auxiliary power supply from 20 to 253V AC/DC.

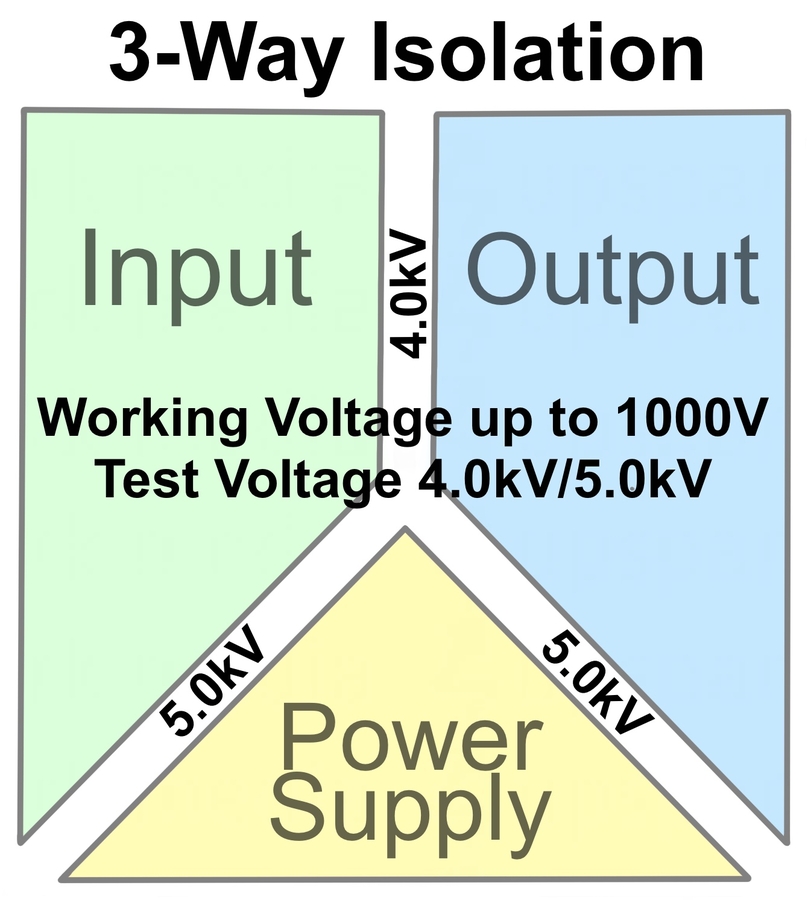

The isolation system meets the requirements of EN61010-1 and protective separation to EN61140 by reinforced insulation according to EN61010-1. Protection against electric shock is achieved through protective separation according to EN 61140 between input and output and power supply. There are 7 fixed unipolar/bipolar ranges to choose from based around popular process signals.

There are 7 popular fixed signal input/output options available. With either standard fixed screw terminals (F range) or removable plug in screw terminal connectors (H range).
