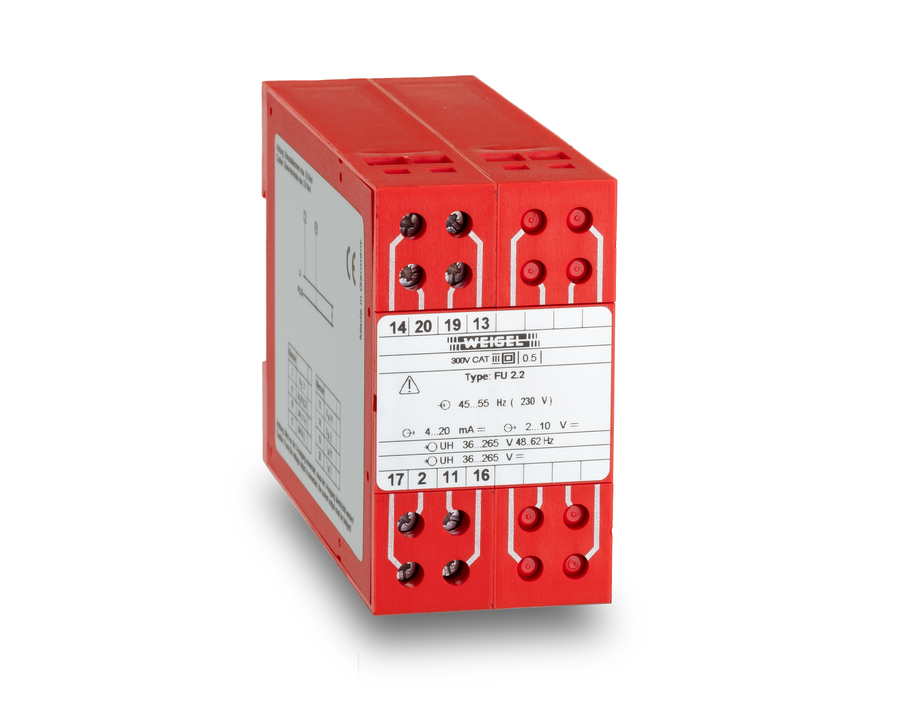

Weigel FU 2.2
Frequency Transducer choose from 110V 45/55Hz or 230V 45/55Hz input range with a dual DC Current & Voltage Output Range
Frequency Transducer choose from 110V 45/55Hz or 230V 45/55Hz input range with a dual DC Current & Voltage Output Range
| Model: | Series 2.2 | |
| Order No: | UMU08-14140 | |
| Frequency Range: | 45...50...55Hz | |
| Input: | 0...110V AC | |
| Output: | 0...20mA & 0...10V | |
| Power Supply: | 20...70V AC/DC | |
The Weigel FU 2.2 Frequency Transducer is used for the measurement of line Frequency in AC power systems. The measurement range offered is 45…50…55Hz with 2 standard voltage input ranges 110V or 230V. It then converts the measured Frequency signal in to a proportional DC signal of 0…20mA, 4…20mA, 0…10V or 2…10V. Dual output is also possible offering 4-20mA & 2-10V or 0-20mA & 0-10V The transducer is also offered with a choice of two wide power supply options 20...70V AC/DC or 36...265V AC/DC.
This transducer is a suitable replacement for the obsolete Sineax F534 Frequency Transducer and Frequency Transducers from the obsolete ISTAT 200 & ISTAT 300 range.
What we like:
This low-cost high-quality transducer is manufactured in Germany by Weigel a leading supplier of AC Measurement Transducers. 4 popular signal output requirements are covered as the Frequency of the line voltage is measured and then converted in to a DC proportional 0…20mA, 4…20mA, 0…10V and 2…10V output signal. Dual signal outputs are also possible offering 4-20mA & 2-10V or 0-20mA & 0-10V. Housed in a very compact rail mount case with its slim 45mm wide profile, easy access screw terminals plus accuracy Class 0.5 make this transducer idea for your Frequency monitoring requirements.
