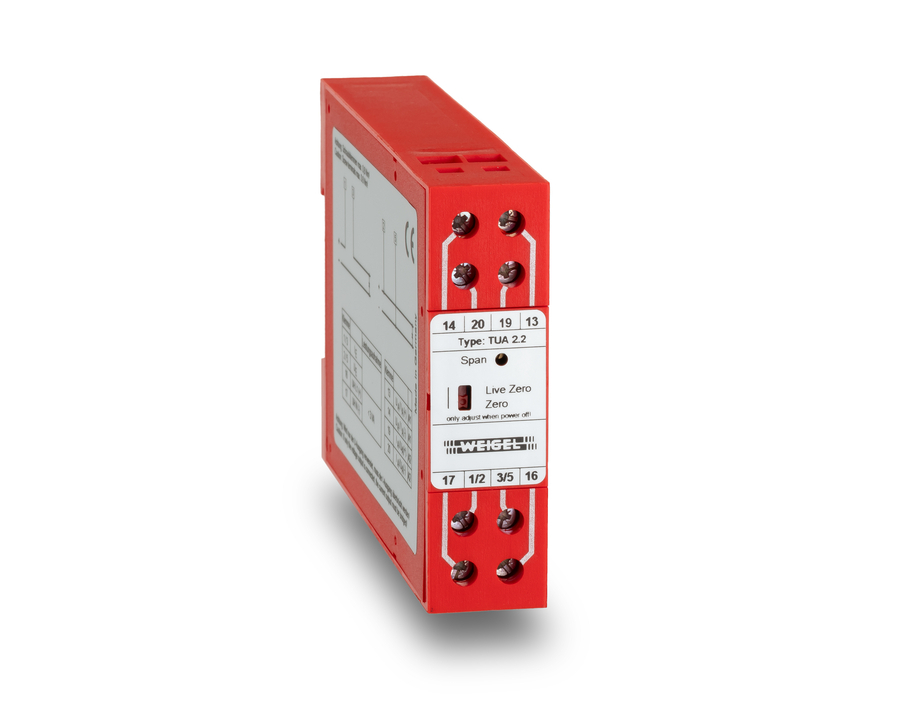

Weigel TUA 2.2 DC Signal Conditioner
DC Signal Conditioner covers all standard Power & Process Signal Input/Output requirements. These include 0/4…20mA, 0/2…10V or 0…60mV input with either a 0/4…20mA or 0/2…10V output
| Model: | Weigel TUA 2.2 | |
| Order No: | NMU31-10F1140 | |
| Input: | 0...20mA | |
| Output: | 4...20mA, 2...10V, 0...20mA or 0...10V | |
| Power Supply: | 20...70V AC/DC | |
| Case Width: | 22.5mm | |

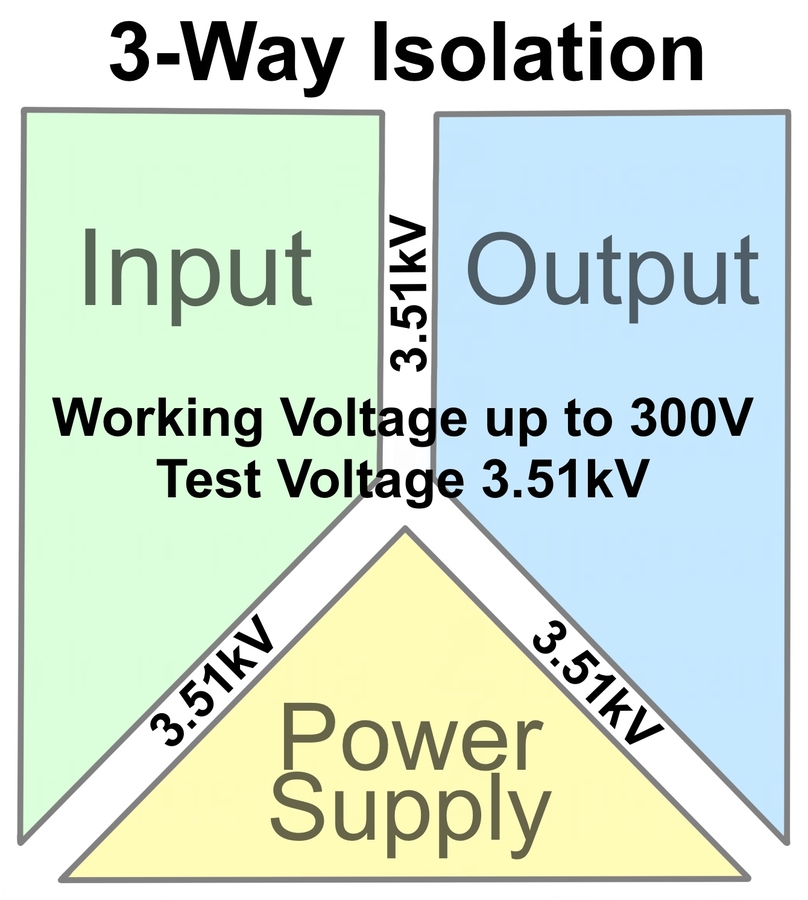

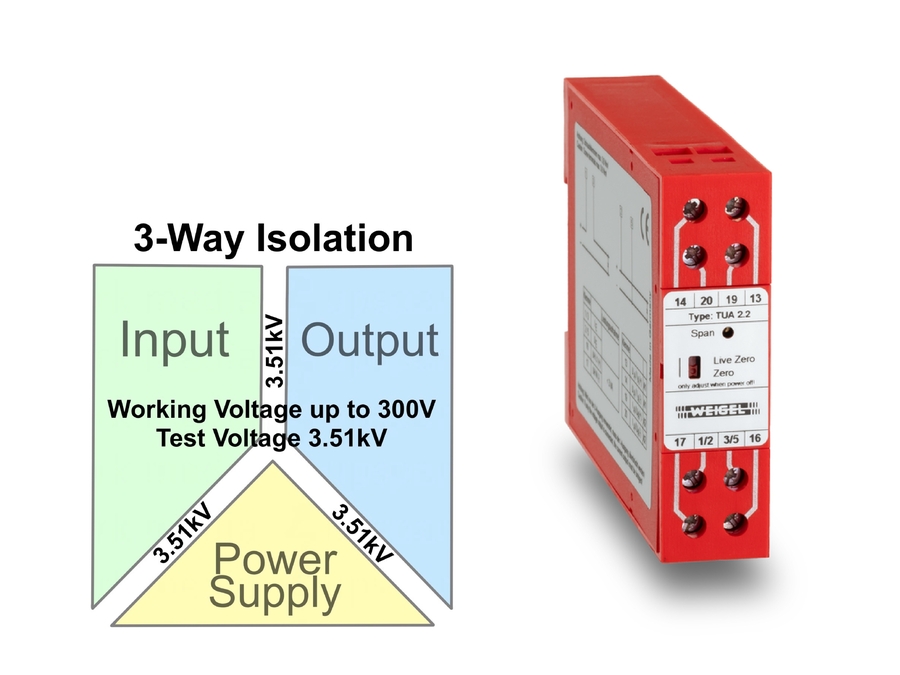

The Weigel TUA 2.2 Signal Conditioner is used for the safe isolation of standard process signals such as 0…20mA, 4…20mA, 0…10V, 2…10V & 0…60mV. It then converts this input signal to a standard proportional DC signal output. Standard outputs available include 0…20mA, 4…20mA, 0…10V, 2…10V. Dual output is also possible offering 4-20mA & 2-10V or 0-20mA & 0-10V. For use on systems with a working voltage up to 300V, Isolation levels tested above 3.5kV. The Weigel TUA 2.2 signal conditioner is also offered with a choice of two wide power supply options 20...70V AC/DC or 36...265V AC/DC.
This signal conditioner is a suitable replacement for the obsolete Sineax TV819 Signal Conditioner and DC Signal Conditioners from the obsolete ISTAT 200 & ISTAT 300 range
