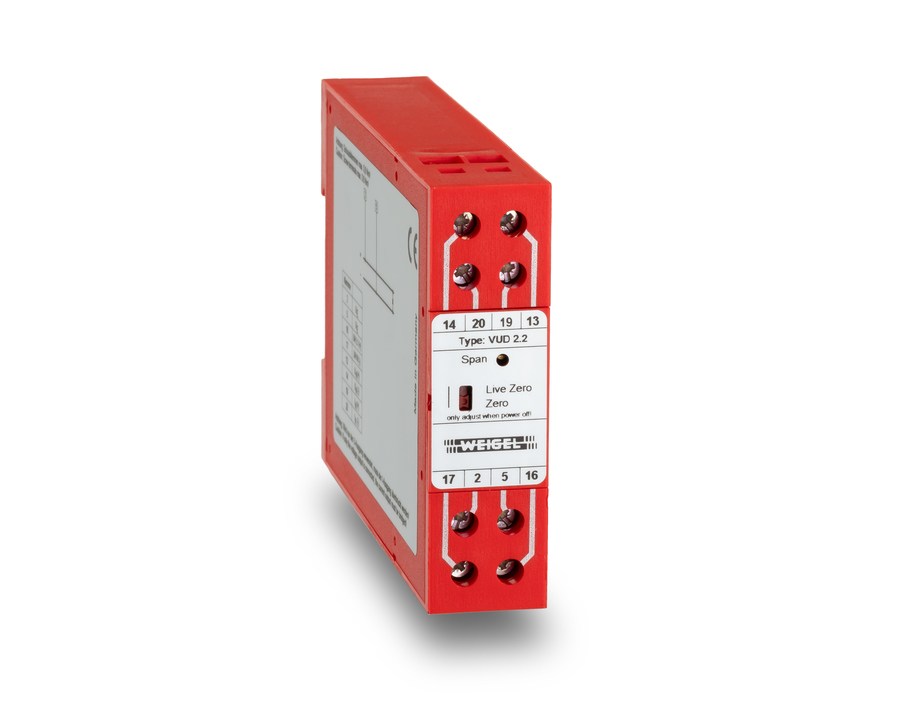

Weigel VUD 2.2 DC Signal Conditioner

• Customer specifies DC voltage input required at time of order, from within the range 0…60mV to 0…300V.
• 4 Standard DC output options are covered, including 0…20mA, 4…20mA, 0…10V, 2…10V.
• Non-standard output options are also available upon request.
• Accuracy Class 0.5 to EN 60688.
• A choice of two wide power supply options 20...70V AC/DC or 36...265V AC/DC.
• 22.5mm wide housing with simple snap-on din rail mount.
• The transducers case is made from flame retardant ABS & Polycarbonate with a UL-94 V-0 rating.
• Working Voltage up to 300V with overvoltage category II and pollution degree 2 according to EN61010-1
• 12-month warranty

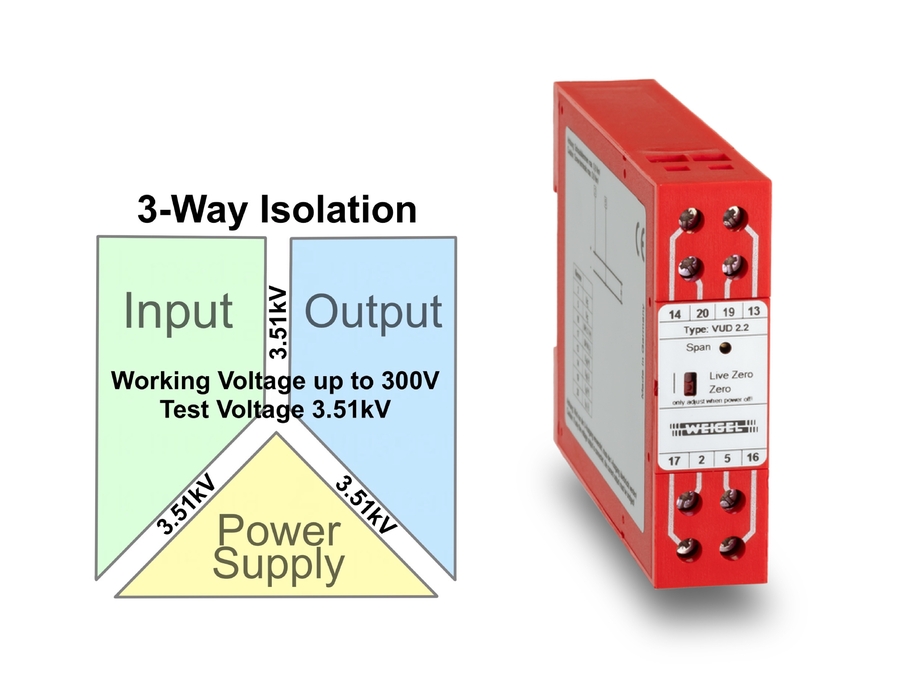

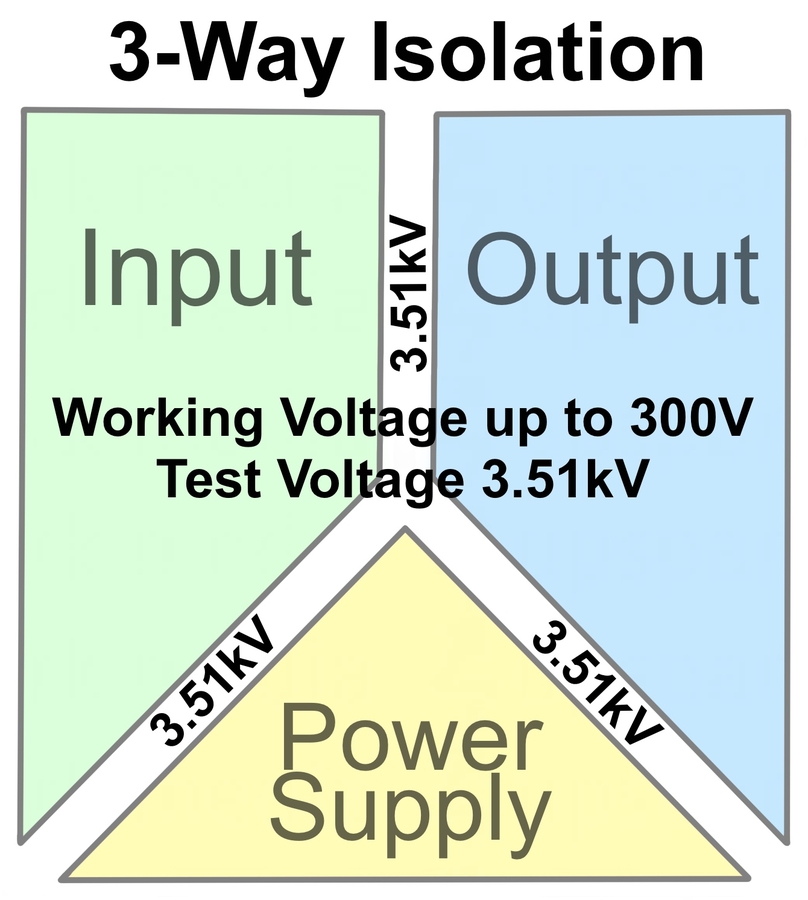

The Weigel VUD 2.2 DC Voltage Signal Conditioner is used for the safe isolation of what may be considered non-standard DC Voltage signals. It can cover unipolar or bipolar signals within the range 0…60mV to 0…300V. Just confirm your range requirements at time of order. It then converts this input signal to a standard proportional DC signal output. Standard outputs available include 0…20mA, 4…20mA, 0…10V, 2…10V. Dual output is also possible offering 4-20mA & 2-10V or 0-20mA & 0-10V. For use on systems with a working voltage up to 300V, Isolation levels tested above 3.5kV. The Weigel VUD 2.2 signal conditioner is also offered with a choice of two wide power supply options 20...70V AC/DC or 36...265V AC/DC.

• Weigel VUD 2.2 - UMU30-90F1140
