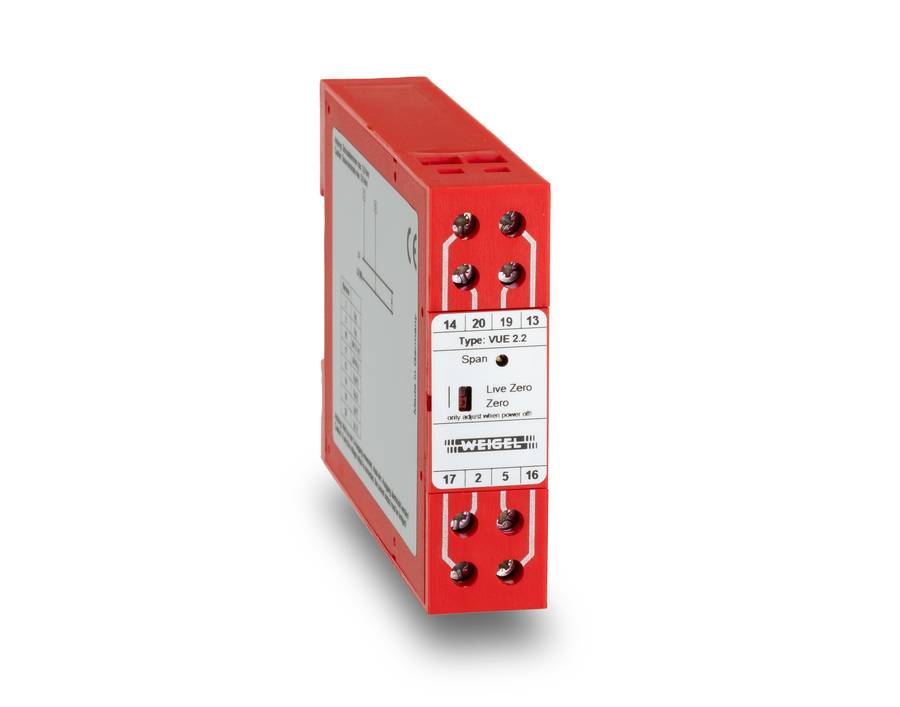

Weigel VUE 2.2

• 4 standard voltage input ranges are available including 0…115V, 230V, 400V & 500V.
• Proportional 0…20mA, 4…20mA, 0…10V or 2…10V output signal.
• Dual output signal is also possible offering 4-20mA & 2-10V or 0-20mA & 0-10V.
• True RMS measurements with Accuracy Class 0.5 to EN 60688.
• A choice of two wide power supply options 20...70V AC/DC or 36...265V AC/DC.
• Compact 22.5mm wide yet robust rail mount modular housing.
• Transducers case is made from flame retardant polycarbonate with a UL-94 V0 rating.
• Complies with EN61010-1 Safety Standard.
• Each transducer is protected with a 3-year warranty.

The Weigel VUE 2.2 AC TRMS Voltage Transducer is used for the measurement of AC Voltage. 4 standard voltage input ranges are available including 0…115V, 230V, 400V & 500V. It’s able to accurately measure not only true sinusoidal waveforms but also distorted wave forms giving you a True RMS measurement of the AC voltage input which is then converted in to a proportional DC 0…20mA, 4…20mA, 0…10V or 2…10V output signal, depending on selected output switch position. Dual output is also possible offering 4-20mA & 2-10V or 0-20mA & 0-10V The transducer is also offered with a choice of two wide power supply options 20...70V AC/DC or 36...265V AC/DC.

• Weigel VUE 2.2 - UMU07-46F1140
