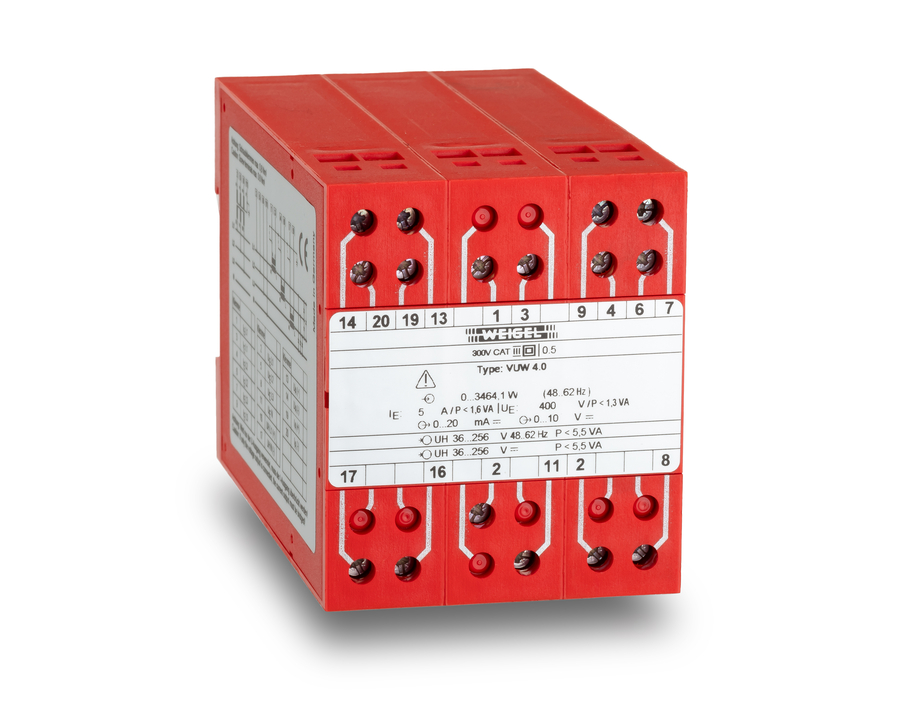

Weigel VUW 4.0

• This is a Three-Phase AC Power Transducer but options are available for all AC systems including single-phase, and three-phase 3 and 4 wire with balanced and unbalance loads.
• Customer confirms the nominal input voltage to be measured, standard options are quoted on the data sheet. Plus, the current input range including the CT ratio along with the active power measurement range.
• There are 13 standard nominal input voltage ranges to choose from please view data sheet.
• Frequency range 48…62Hz.
• The measured Active Power is converted into a proportional 4-20mA & 2-10V or 0-20mA & 0-10V DC output signal.
• Measurement Accuracy Class 0.5 to EN 60688.
• Two wide range power supply options 20...70V AC/DC & 36...265V AC/DC.
• Compact 67.5mm wide yet robust rail mount modular housing.
• Transducers case is made from flame retardant polycarbonate with a UL-94 V0 rating.
• Complies with EN61010-1 Safety Standard.
• Each transducer is protected with a 3 year warranty.

The Weigel VUW 4.0 Active Power Transducer is used for the measurement of Active Power in three-phase, four-wire unbalanced load AC power systems. The transducer converts the Active Power measurement into a proportional DC output signal. Two signal output options are offered 4-20mA & 2-10V or 0-20mA & 0-10V. The transducer is offered with a two wide power supply options 20...70V AC/DC & 36...265V AC/DC. At time of order, you will need to confirm the nominal input voltage to be measured, standard options are quoted on the data sheet. Plus, the current input range including the CT ratio along with the active power measurement range you wish to monitor.

• Weigel VUW 4.0 - PMU14-1##12140
