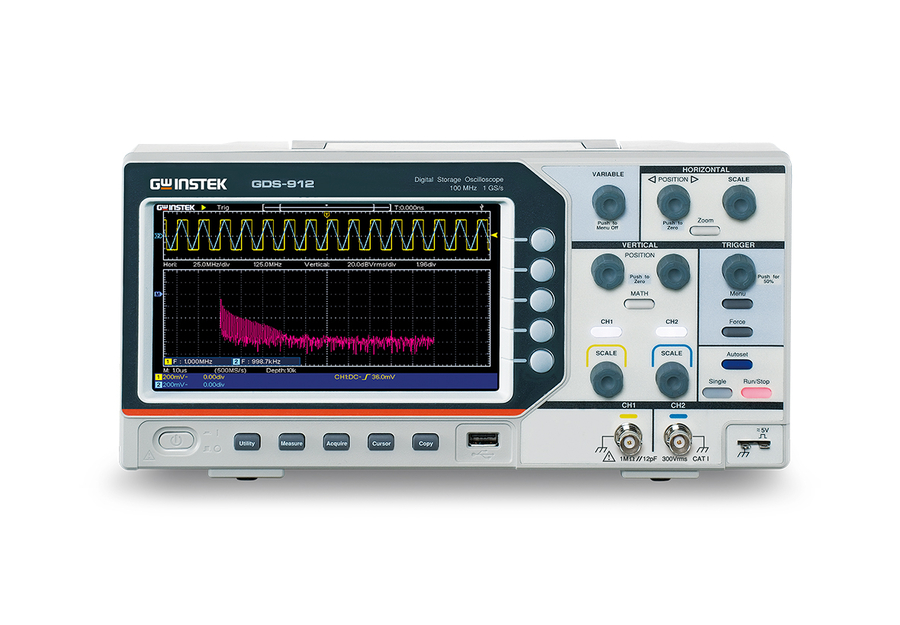

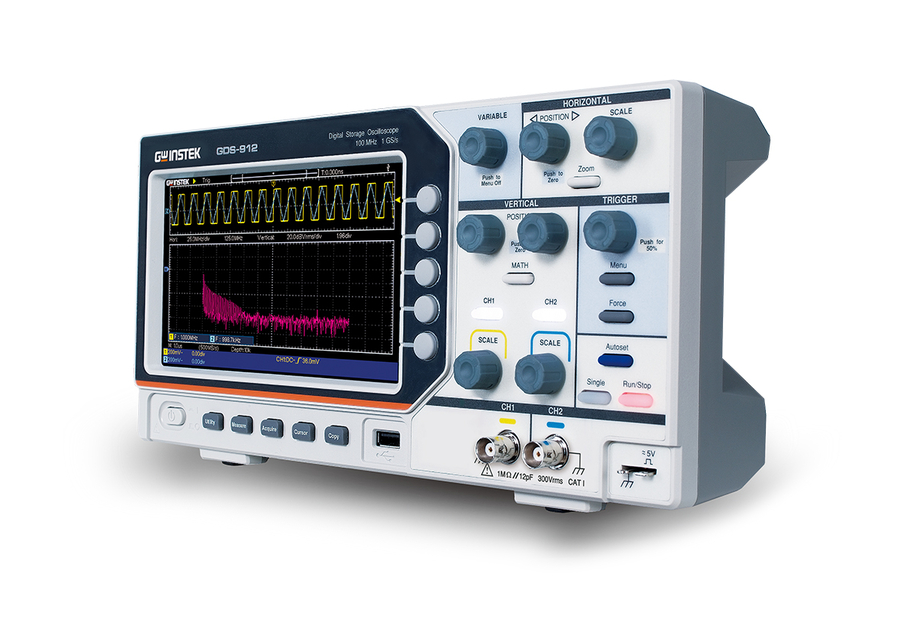

GW Instek GDS-912

• 2 models to choose from with the GDS-912G having a 25MHz Arbitrary Waveform Generator.
• GDS-912G - Wave Form Generator offering sine wave, square wave, ramp wave, pulse wave plus an additional 16 arbitrary wave forms.
• 1GSample/s maximum sampling rate.
• 20M maximum Memory Depth for each channel.
• Bright 7” WVGA 800 x 480 Colour LCD Display.
• Supports 30 Automatic Waveform Measurements
• 6-digit High-precision Frequency Counter
• Compact stylish innovative design, packed with measurement features

The GW Instek GDS-912 is a great starting point for getting to know the GW Instek range of oscilloscopes.

This modern/stylish/compact 100MHz 2 channel oscilloscopes with a 1GSa/S sample rate is great for the educational market enabling you to cover the fundamentals of signal measurements. With 30 automatic measurement parameters, this oscilloscope allows users to quickly and easily analyse various signal conditions.

Move up to the GW Instek GDS-912G for the added Wave Form Generator offering Sine wave, square wave, ramp wave, pulse wave plus an additional 16 arbitrary wave forms.

The GW Instek GDS-900 series offers the most cost-effective entry-level solution for Digital Oscilloscope measurement functions supported by a waveform record length of 10M samples with a sample rate of 1Gsample/s. Although it’s a compact unit it still offers a quality 7” WVGA LCD with a 256-colour gradient display function together with and memory depth of 20M samples for each channel this allows the GDS-900 Series to display exquisite waveforms and allows each retrieved waveform to reveal the details of the measured signal. It’s the perfect tool for university laboratories for training and troubleshooting, but will also find applications within electronics R&D and as a portable tool for production and service test engineers.

• GDS-912 unit.
• 2 x 100 MHz(10:1/1:1) Switchable Passive Probe
• User Manual
• USB Cable
• Power Cord
• Calibration Certificate
