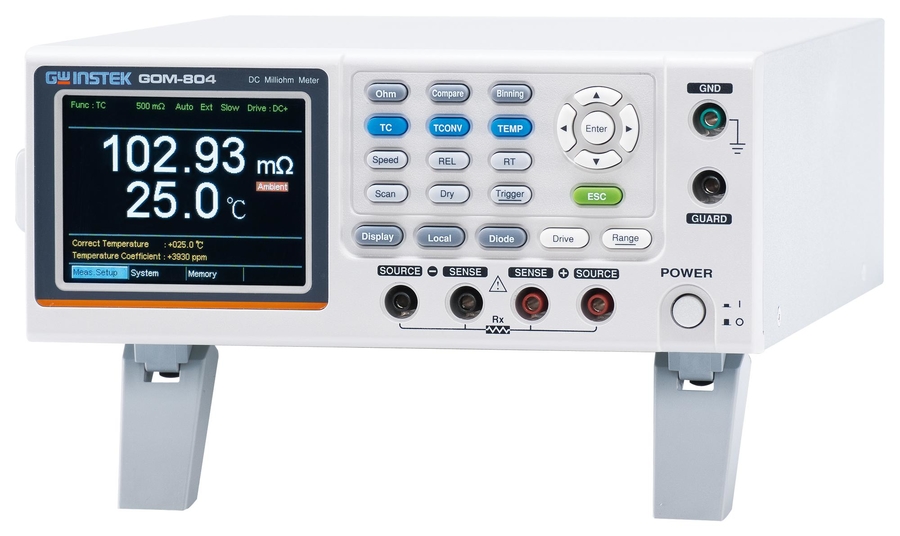

GW Instek GOM-804 Description
GOM-804 is a modern high precision milliohmmeters suitable for accurate low resistance measurements the GOM-804 also offers the ability to measure up to 5MΩ. The instruments display features a colour TFT-LCD screen for easy-to-read measurement results, each primary and secondary measurement result is displayed prominently on the display along with any corresponding settings. For sequential measurement results, such as those from the scan or binning function, are tabulated in an intuitive and easy-to-read format. In addition, the meters can recall previously used settings upon start up, allowing the meter to be ready the next time it used in a matter of moments. The meters can also save or recall up to 20 sets of function settings. Independent functionality keys and direction keys together increase the operational convenience which allows users to complete their measurement tasks with intuitive convenience and speed. For automatic testing The GOM-804 has a handler interface designed for automatic testing. The handler interface outputs the status of PASS, FAIL, HI, LO, READY and EOT signals and inputs a trigger control signal. Automatic testing is used with the binning, compare and scan functions. For computer control applications, RS-232 and USB interfaces are also available as standard.
