GW Instek GPT-15001

• Up to 5kV AC Withstand Voltage Test at max load 500VA (5kV/100mA)
• Large 7-inch colour TFT LCD Display
• To help make tests more compliant with your relevant safety standards the GPT-15001 offers greater flexibility in the output sequence from the test start point to the end of the test cycle.
• The user can set the ‘Ramp Up’, ‘Test Duration’ and ‘Ramp Down’ time for the AC Withstand Voltage Test.
• A sweep mode function allows the user to create a graph of the AC Withstand Voltage Test.
• ARC detection, detects fast voltage or current transients that are not normally detected.
• Each manual (MANU) test the user sets up can be stored/recalled to/from one of 100 memory locations.
• Automatic (AUTO) tests allow you to link together up to 10 different MANU tests and run them sequentially.
• With the use a PWM switched power supply precise test voltage can be set without having to rely on the unit’s mains power voltage supply.
• The rear output terminals and indicator provide for safe and convenient for system integration.
• Start/Stop functions can be controlled remotely via the ‘Remote Terminal’ located on the front of the unit.
• The rear Signal I/O port can be used for pass/fail/test monitoring and the start/stop control/interlock.
• Integral over temperature, voltage and current protection protect the product to support long term use.
• Pass, Fail, Test, High Voltage and Ready indicators are all displayed on the 7-inch colour TFT LCD Display.
• Interlock function is a safety feature that is configurable by the user if it is set and the Interlock is left open the INTERLOCK OPEN will be displayed and the test will not start.
• Interface connections include remote terminal & USB A-Type for data storage at the front of the unit and RS-232C, USB B-Type port for remote control plus signal I/O to the rear. (GPIB is available as an option)

With the GW Instek GPT-15000 Series you can chose from 4 models which tester in the range best suites your complete test requirements whether that is just the AC Withstand Voltage Tester, AC/DC Withstand Voltage Tester, AC/DC Withstand Voltage Tester with Insulation Resistance Test or AC/DC Withstand Voltage Tester with Insulation Resistance Test and Ground Bond Test.

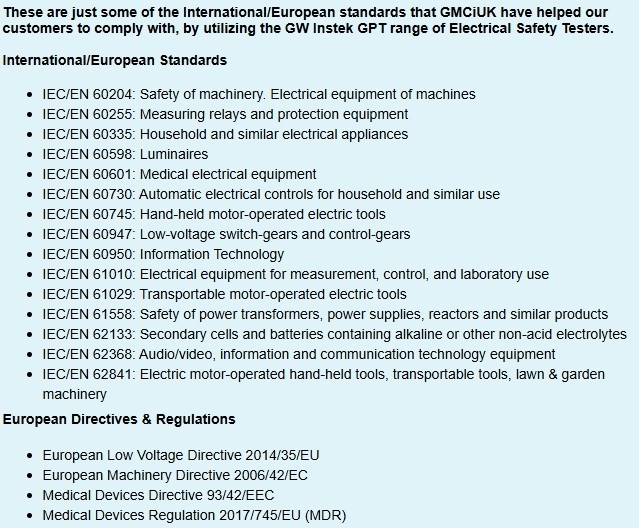

The GW Instek GPT-15001 AC Withstand Voltage Tester is designed for the testing of electrical devices and components according to various safety standards. It provides for ‘Withstand Voltage’ tests of up to 5kV AC with an output capacity of 500VA. The Test voltage can be set between 50V to 5kV AC and can be adjusted in 1V steps.

The Large 7-inch colour TFT LCD Display clearly shows the applied voltage, test parameters, test conditions, measurement value and test results all on the screen at the same time. The real-time status update on the LCD display accompanied by the multi-coloured LED status indicators on the front panel allow operators to have full visual control of the test process. The HIGH VOLTAGE indicator will light up red when an output terminal is active. Only after the test has finished or stopped will this warning indicator turn off. The test function selection keys arranged to the left of the LCD display provide convenient operation so that test functions can easily be changed with a single action. The keys indicate up to 5 test functions available depending on the GPT-15000 model these include ACW, DCW, IR, GB and CONT. Pressing one of the keys enters the function settings.

The GPT-15000 Series offers a sweep mode function, which creates a graph of one of the ACW, DCW, IR, GB or CONT tests. The graph will plot the output voltage, current or resistance versus time. After the test has been completed, the test current, voltage or resistance at any point in time can be fetched and viewed in the graph.

The GW Instek GPT-15000 Series allows you to store up to 100 user defined manual (MANU) tests in up to 100 memory locations. The automatic (AUTO) test then allows you to link together up to 10 different MANU tests and run them sequentially in your own automatic test sequence.

• GPT-15001 unit.
• Quick start guide and user manual on CD
• GHT-115 x 1 Test lead
• GHT-119 x 1 Remote terminal cable
• Power cord
• Interlock key
• Calibration Certificate
