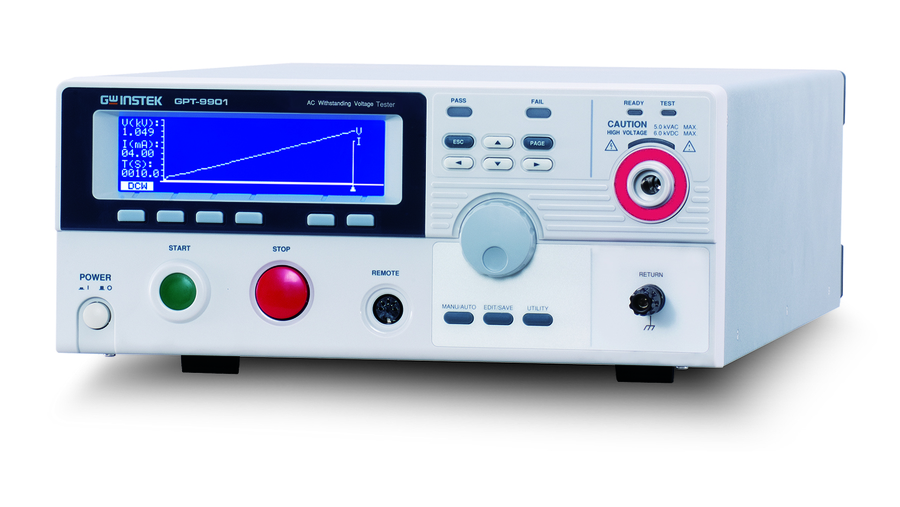

GW Instek GPT-9901A

• Up to 5kV AC Withstand Voltage Test at max load 500VA (5kV/100mA)
• Large 240 x 64 Ice Blue Dot Matrix LCD Display
• The user can set the ‘Ramp Up’ and ‘Test Duration’ time for the ‘Withstand Voltage’ test.
• The GW Instek GPT-9900 Series also include an innovative sweep function to view test results as a graph.
• ARC detection, detects fast voltage or current transients that are not normally detected.
• Each manual (MANU) test the user sets up can be stored/recalled to/from one of 100 memory locations.
• Automatic (AUTO) tests allow you to link together up to 16 different MANU tests and run them sequentially.
• The GPT-9901A test sequence can be extended to 8, 16, 24 or 32 channels with the optional GW Instek GSB-01 Multiplex Scanner Box.
• With the use a PWM switched power supply precise test voltage can be set without having to rely on the unit’s mains power voltage supply.
• Start/Stop functions can be controlled remotely via the ‘Remote Terminal’ located on the front of the unit.
• The rear Signal I/O port can be used for pass/fail/test monitoring and the start/stop control/interlock.
• USB and RS-232C communication ports facilitate communication and the retrieving of test data via a PC connection.
• The rear RS232/USB ports can be used for programming and remote control.
• Integral over temperature, voltage and current protection protect the product to support long term use.
• Pass, Fail, Test, High Voltage and Ready indicators are all displayed on the Ice Blue Dot Matrix LCD Display.
• Interlock function is a safety feature that is configurable by the user if it is set and the Interlock is left open the INTERLOCK OPEN will be displayed and the test will not start.

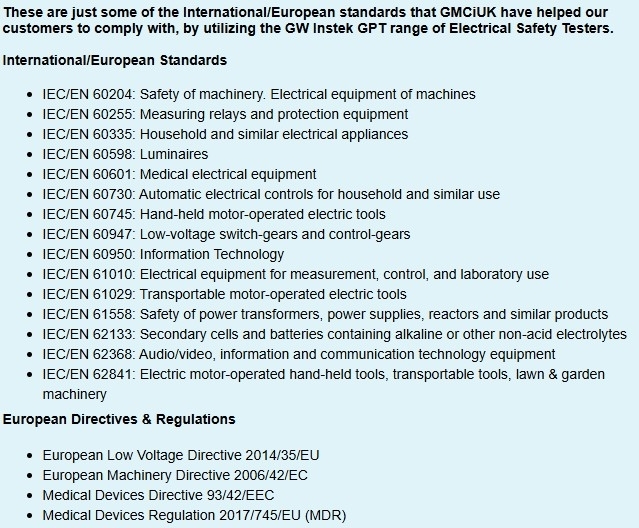

The GW Instek GPT-9901A AC Withstand Voltage Tester is designed for the testing of electrical devices and components according to various safety standards. It provides for ‘Withstand Voltage’ tests of up to 5kV AC with an output capacity of 500VA. The Test voltage can be set between 50V to 5kV AC and can be adjusted in 2V steps.

The 240 x 64 Ice Blue Dot Matrix LCD Display clearly shows the applied voltage, test parameters, test conditions, measurement value and test results all on the screen at the same time. The GW Instek GPT-9900 Series also include an innovative sweep function to view test results as a graph. The sweep function creates a graph of one of the ACW, DCW, IR or GB tests in the special manual mode. The graph will plot the output voltage, current or resistance versus time. After the test has been completed, the test current, voltage or resistance at any point in time can be viewed in the graph. The real-time status update on the LCD display accompanied by the multi-coloured LED status indicators on the front panel allow operators to have full visual control of the test process. The statue indicator above the high voltage output terminal will automatically flash when the output is present. In addition the function keys arranged below the LCD display provide convenient operation so that test functions can easily be changed with a single action.

The GW Instek GPT-9900 Series allows you to store up to 100 user defined manual (MANU) tests in up to 100 memory locations. The automatic (AUTO) test then allows you to link together up to 16 different MANU tests and run them sequentially in your own automatic test sequence. Furthermore, the GPT-9900 Series can be used in conjunction with the GW Instek GSB-01/02 Multiplex Scanner Box to test up to 32 channels. It is particularly well suited for multi-point safety testing in quality control systems.

• GPT-9901A unit.
• Quick start guide and user manual on CD
• GHT-114 x1 Test lead
• GHT-119 Remote Terminal Cable
• Power cord
• Interlock key
• Calibration Certificate
