GW Instek PSW 720L11

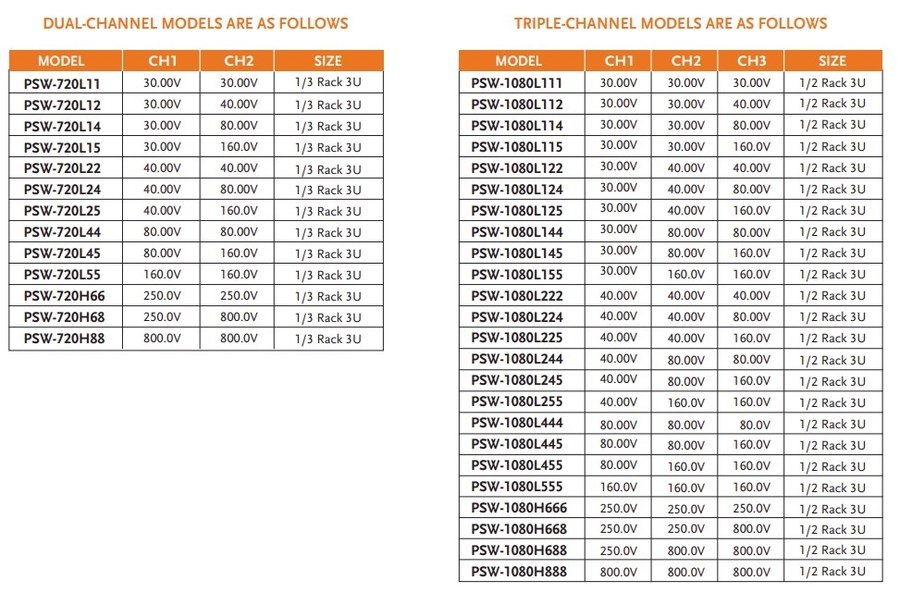

• The PSW Dual Channel range offers 13 individual models to choose from all in a high-power density compact design.
• Voltage Rating: 0…30V, 40V, 80V, 160V, 250V & 800V. With output power rating at 360W per unit.
• Multi-range Voltage & Current combinations from one single Power Supply
• The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection.
• The PSW has selectable slew rates for CC and CV mode. This gives the PSW power supply the ability to limit the current/voltage draw of the power supply.

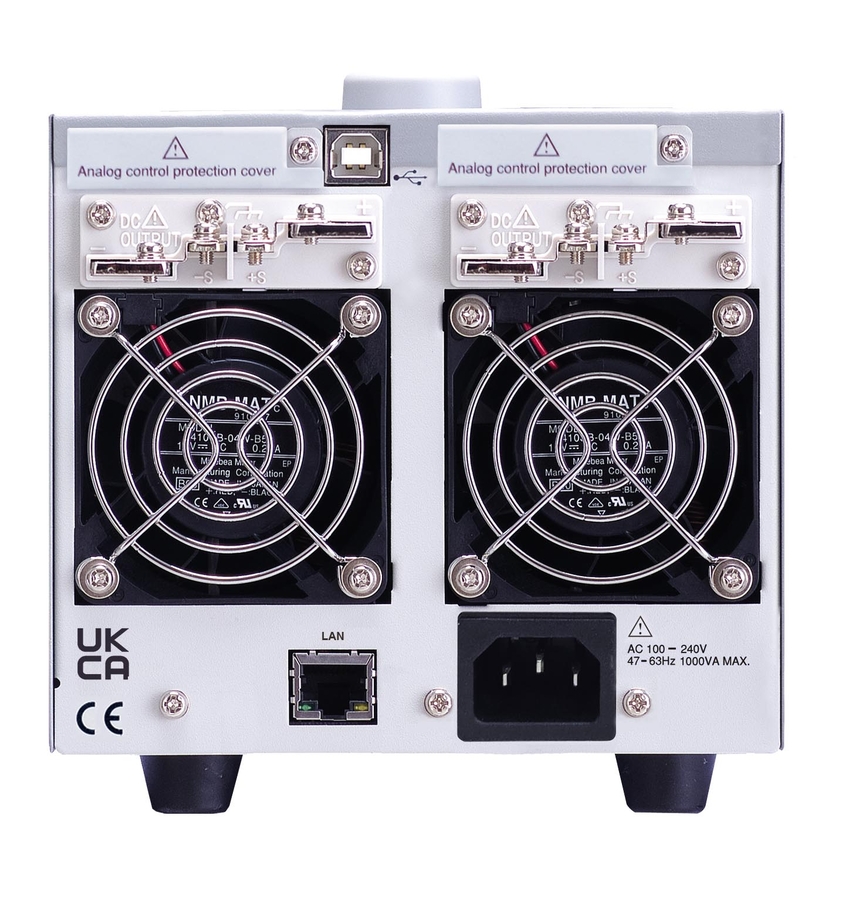

• Standard Interface: LAN, USB, Analog Control Interface.
• Optional Interface: GPIB-USB Adaptor, RS232-USB Cable
• LabView Driver

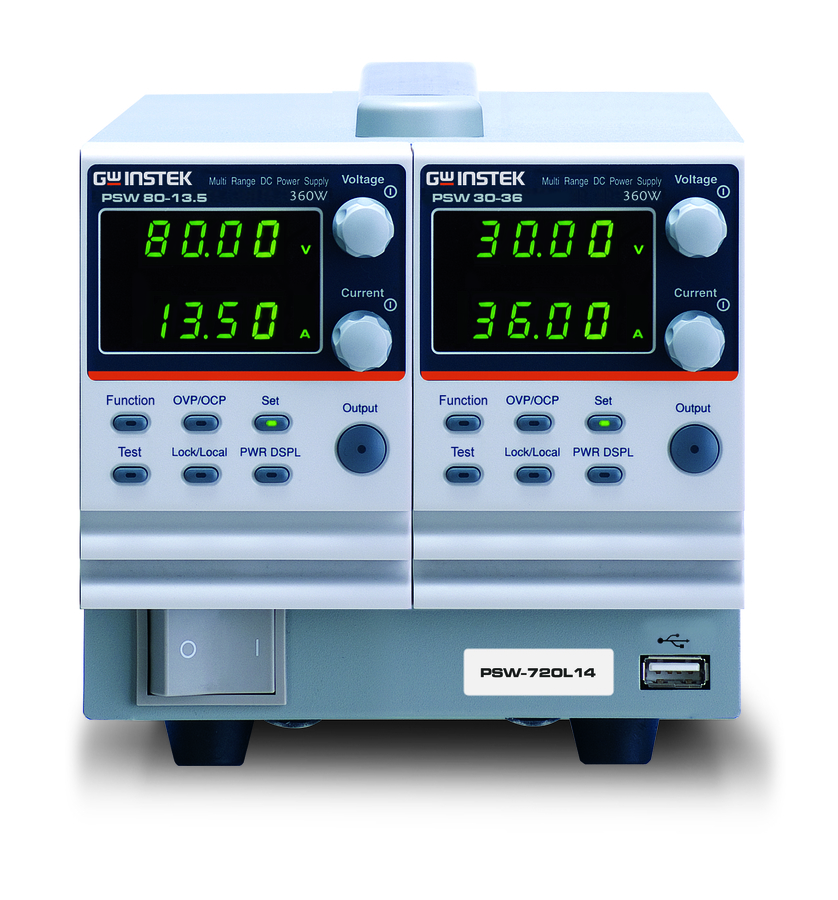

The GW Instek PSW 720L11 offers the most cost-effective way of obtaining a Dual Channel High-Density DC Power Supply in a single compact unit with each channel offering a max power output of 360W, you just have to choose the range required from 13 different voltage and current range options.

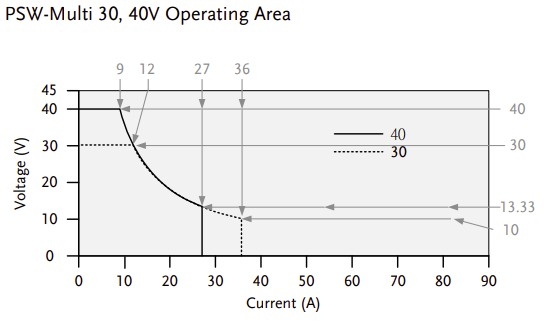

The GW Instek PSW 720L11 delivers precise, stable power with a compact, user-friendly design, making it the ideal choice for high-accuracy testing within its stated voltage, current and power range. The PSW Series operate in Constant Current (CC) or Constant Voltage (CV) mode within a wide operating range limited only by the output power. They also offer selectable slew rates for CC and CV mode. This gives the PSW power supply the ability to limit the current/voltage draw of the power supply.

• 1 x Power Cord
• 1 x PSW-009 Output terminal cover
• 1 x GTL-123 Test leads: 1x red, 1x black
• 1 x GTL-240 USB Cable
• 1 x PSW-004 Basic Accessory Kit: M4 terminal screws and washers x2, M8 terminal bolts, nuts and washers x2, Air filter x1, Analog control protection dummy x1, Analog control lock level x1
• 1 x User Manual
