INNO Instrument SBT-60

• Seven resistance measurement from 0…3.1000mΩ and 0…3100.0Ω with a resolution down to 0.1µΩ
• Two voltage measurement ranges are offered at 0…6.00000V and 60.0000V with a resolution down to 10µV ideal for precision cell voltage measurements.
• High Accuracy Measurements Resistance ±0.4%rdg ± 5dgt. Voltage ±0.01%rdg ± 3dgt.
• This unit is suitable for the research and development of different battery chemistries along with the most popular lithium-ion cells.
• High accuracy 4 terminal resistance measurement with kelvin clips or specially designed kelvin probes.
• Front facing USB host port for simple quick saving of logged data for transferring to PC.
• Save results to internal memory or direct to connected USB memory devices no need for direct connection to PC.
• Measurement data can be transferred to a PC in CSV format suitable for creating spreadsheet/reports.
• Comparator judgement settings can be made for resistance and voltage measurements these can be display, saved to USB or transmitted via external I/O.
• There are a range of measurement leads available for this product please see accessories tab below

The INNO Instrument SBT-60 Battery Tester is a compact benchtop battery tester suitable for the laboratory test area or production test facility it simultaneously measures and records both the batteries internal resistance and the battery voltage. It offers seven resistance ranges from 0…3.1000mΩ and 0…3100.0Ω with a resolution down to 0.1µΩ and two voltage ranges of 0…6.00000V and 0…60.0000V with a resolution down to 10µV ideal for precision cell voltage measurements. These test ranges cover all individual battery cells types and all but the largest battery packs.

As well as the excellent measurement capabilities, the INNO Instrument SBT-60 Battery Tester also provides a number of functions and features for your convenience. The INNO Instrument SBT-60 provides two data storage methods. "General storage" only stores the measured voltage and resistance values; "statistical storage" has the related parameters (Cp/Ckp/Mean/MAX/MIN...) for the statistical analysis. Users can store the data from the measurement process in the internal memory first and then transfer the data to the computer via flash drive for subsequent analysis without being limited to the connection with the computer.

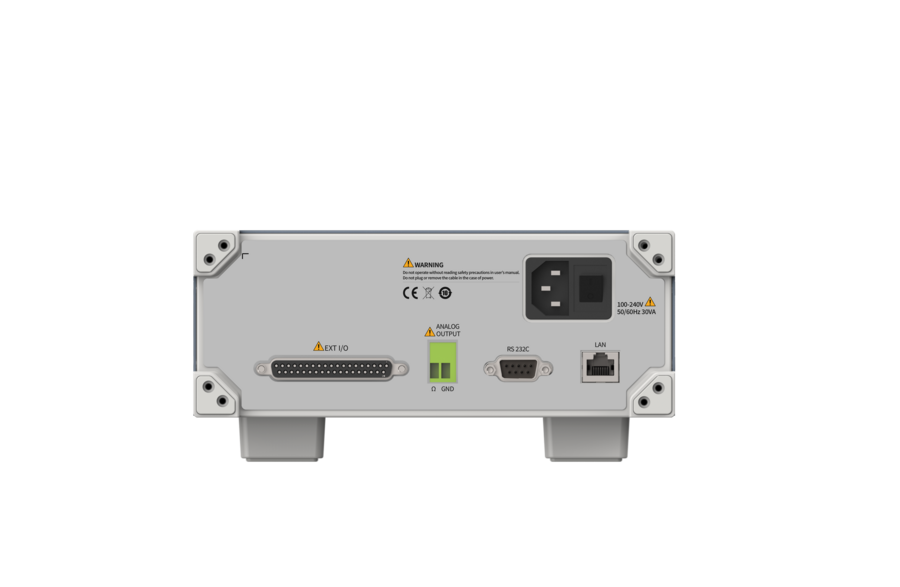

In addition, for retrieving and storing measurement results via the front USB port, the INNO Instrument SBT-60 provides RS-232C and LAN interface. All of these interfaces are available as standard.

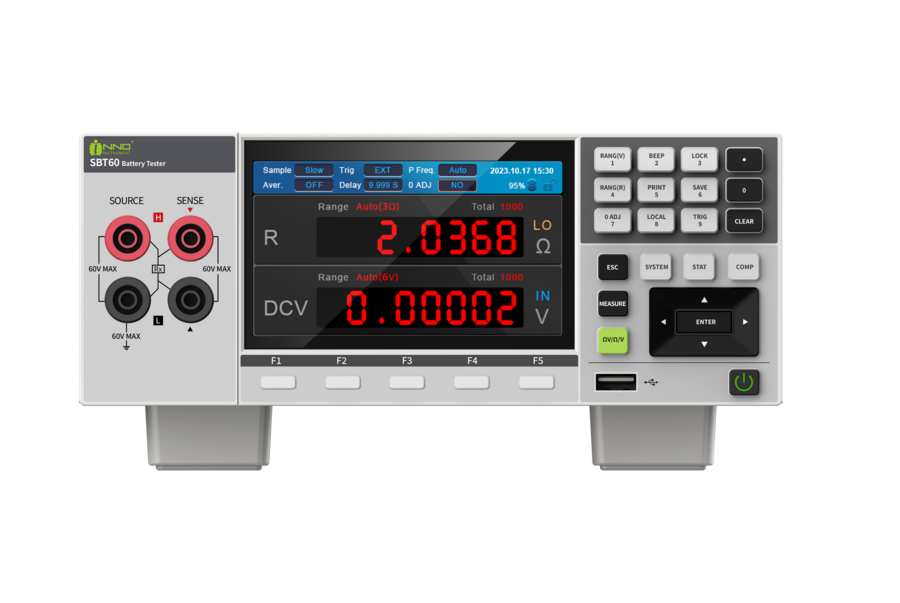

Measured resistance and voltage data is displayed via a large bright 4.25” TFT-LCD Display. The measurement data can also be transferred to a PC for importing to a spreadsheet program or storage as CSV files for further evaluation or comparison.

A range of test leads are offered to cover different designs of battery cell or battery pack terminations and at least one will be suitable for your particular application.

• INNO Instrument SBT-60
• Power Cord
• Quick Operating Instructions Guide
• Full User Manual on USB Flash Drive
• Test Certificate

(For suitable test leads for this product please see accessories tab)
