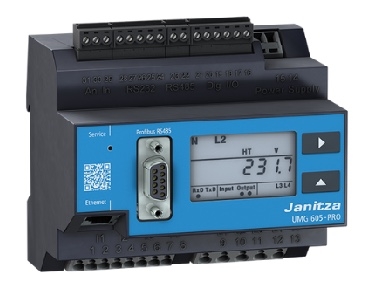

Janitza UMG 605-PRO

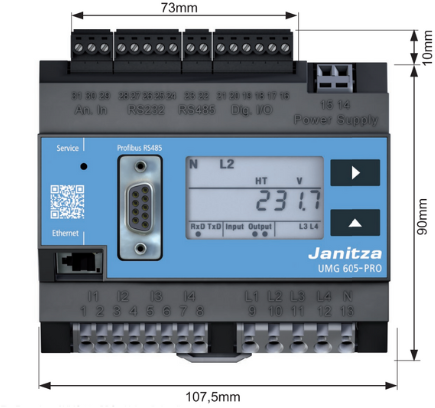

• Compact Din Rail profile 107.5mm x 144mm x 82mm deep case design.
• LCD Display. Scroll through via two control buttons to show measured values for current, voltage, power etc.
• Continuous Monitoring Voltage quality in accordance with EN50160 for ongoing power quality monitoring for both grid, facility or power plants operators.
• Analyses consumption, disturbances/events, and power quality.
• Combines functions: PQ analyser, kWh meter, IP gateway, logger all accessible via web server.
• The device samples continuously at 20kHz and calculates all effective values over a 200ms interval.
• The device samples continuously at 20kHz and calculates all effective values over a 200ms interval.
• Capture transients >50µs and short-term interruptions >20ms.
• Fundamental operating frequencies include 50Hz & 60Hz for monitoring power quality in accordance with EN61000-4-30 and EN50160.
• Flicker measurement in accordance with DIN EN61000-4-15:2011 Class F3
• 128MB of internal memory typically allows for up to 2 years of data storage.
• Standard industrial interface/communication protocols include Ethernet, Modbus TCP/IP, Modbus RTU over Ethernet & Profibus DP
• Complies with EN61010 Safety Standard.
• Measurement Safety Category CAT III 300V.

The Janitza UMG 605-PRO is a Fixed Site Power Quality Analyzer is compliant to the latest IEC61000-4-30 standard with measurement accuracies to category Class S. Enabling permanent monitoring to EN 50160 which stipulates the characteristics of electricity supplied by public distribution networks.

It Continuously records at 20kHz with memory capacity 128MB for data acquisition its thus able to capture up to a 2 years’ worth of data.

This high-performance power quality analyser is designed for DIN rail mount. The user does not need to install any software on their PC as the measurement device has its own integrated web server. From its homepage you can access all of the recorded current and historic measurement data, Analyses consumption, disturbances/events, and power quality.

The Janitza UMG 605-PRO also offers a range of interface options including Ethernet, RS232 and RS48. Communication protocols include Modbus RTU, Modbus TCP/IP, Modbus RTU over Ethernet & Profibus DP. With BACnet IP available as an additional option.

Power Quality Measurement Parameters include:

• Harmonics analysis up to the 63rd harmonic, odd/even (U, I, P, Q)
• Interharmonics (U, I)
• Distortion factor THD-U, THD-I & TDD.
• Voltage Unbalance
• Voltage crest factor
• Flicker measurement in accordance per DIN EN 61000-4-15
• Logging and storage of transients (>50µs) & Short-term interruptions (from 20ms)

• UMG 605-PRO (5216227)
• All connection terminations required for installation
• Installation manual
• “GridVis software” quick user guide
• 2m Ethernet Cable
• RS485 termination resistor, 120 ohms
