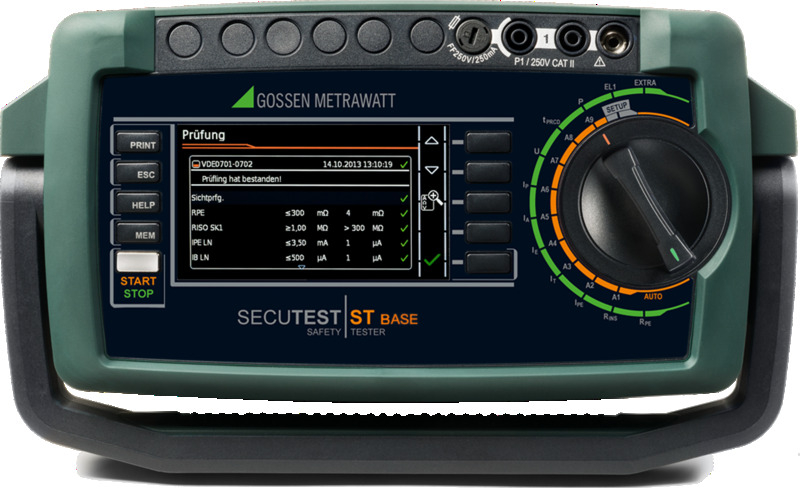

Gossen Metrawatt Secutest ST Base

• The tester supports electrical safety tests covered by BS EN, EN & IEC Standards 61010, 50106, 60335, 60950 & 60974.
• High Resolution 4.3” TFT colour display.
• Measurements and test sequences can be performed in accordance with National & International Standards.
• Run through your test sequence automatically, including protective conductor resistance, insulation resistance & various leakage current tests.
• Testing of PRCDs, types PRCD Standard, SPE-PRCD, PRCD-S and PRCD-K
• The tester offers user safety features including ‘Power Shutdown’ as soon as the leakage current exceeds 15mA this provides maximum safety for the user.
• Manufacturer’s calibration certificate is included with all options.

Once you have chosen the Secutest ST Base model that you require a wide range of tests can be selected manually or run automatically including protective conductor resistance, insulation resistance & various leakage current tests. A function test is available allowing a comprehensive range of measurements including line voltage, residual current, power consumption, active and apparent power, power factor, electrical energy and run-time.  Also for fault finding and testing the Secutest ST Base can accept test leads to enable various multimeter functions including AC & DC voltage, resistance, voltage, current (with optional current clamp) or temperature with optional (Pt100 or Pt1000) probe. The test probe uses a 4-wire method to allow for Protective Earth to be tested at differing lengths for larger electrical equipment.

The Secutest Base can help show compliance to the following BS EN, EN & IEC Standards:

• BS EN 61010 – EN 61010 – IEC 61010

Safety requirements for electrical equipment for measurement, control, and laboratory use

• BS EN 50106 – EN 50106

Safety of household and similar electrical appliances

• BS EN 60335 – EN 60335 – IEC 60335

Household and similar electrical appliances

• BS EN 60950 – EN 60950 – IEC 60950

Information technology equipment – (To be replaced by 62638)

• BS EN 60974 – EN 60974 – IEC 60974

Arc welding equipment

Once you have established the control standard that you need to comply with you then need to choose the test current required for ‘Protective Conductor Resistance Testing’.

• Secutest ST Base (M7050-B01-C01-E00-G00-H00-I00-J00-KA00-KB00-KD00-M00-P00 )
• 2m long Probe Cable with Test Probe for Protective Conductor Measurement (SK2-Z745D) with Plug-on Alligator Clip. (3-610-113-03)
• 3x Plug-on Quick-Connect Terminals. (3-610-112-01)
• Carry Strap
• Manufacturers Calibration Certificate
• Operating Instructions
