GW Instek DAQ-9600

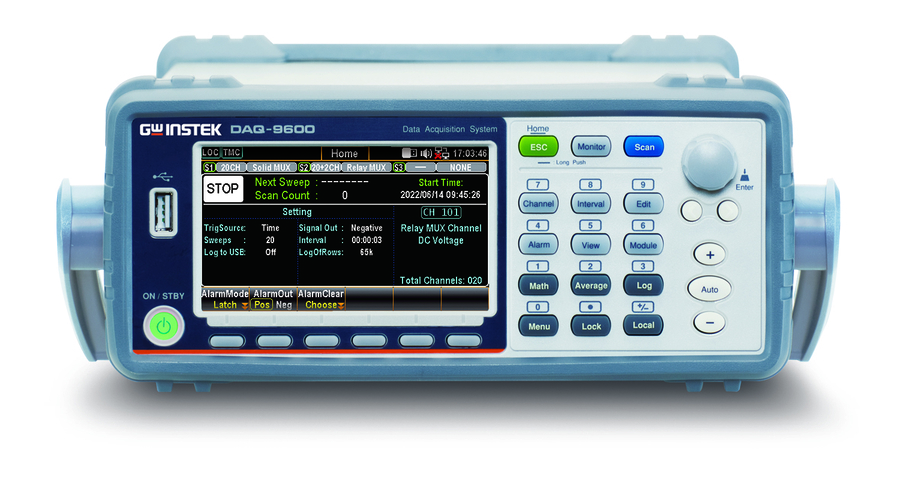

The DAQ-9600 data acquisition system is a modularized data acquisition system with high flexibility and higher performance. The mainframe is equipped with 3 module slots and a built-in precision 6 1/2 digital DMM at its core of its test and measurement functions. 5 modules are available to cover different measurement requirements. Including Temperature via Thermocouples, RTDs & Thermistor. Resistance via 2 and 4 Wire Measurements, DC & AC Voltage & Current, frequency & Capacitance.
The DAQ-9600 can store the measurement results without connecting to a PC with the non-volatile memory capacity of 100k readings. Users can store the measurement results inside the system first, and then connect to a PC to collect data. In addition, for larger memory capacity, the DAQ-9600 also supports the USB storage function, which can directly record data to an external USB flash drive, or copy the data of the internal non-volatile memory to the flash drive for follow-up analysis.
