GW Instek GPT-9601

• Up to 5kV AC Withstand Voltage Test at max load 100VA (5kV/20mA)
• Large 240 x 48 Ice Blue Dot Matrix LCD Display
• The test time for ‘Withstand Voltage Test’ can be set from 1 to 180 seconds with a resolution of 1 second.
• ARC detection, detects fast voltage or current transients that are not normally detected.
• With the use a PWM switched power supply precise test voltage can be set without having to rely on the unit’s mains power voltage supply.
• Start/Stop functions can be controlled remotely via the ‘Remote Terminal’ located on the front of the unit.
• The rear Signal I/O port can be used for pass/fail/test monitoring and the start/stop control/interlock.
• Integral over temperature, voltage and current protection protect the product to support long term use.
• Pass, Fail, Test, High Voltage and Ready indicators are all displayed on the Ice Blue Dot Matrix LCD Display.
• Interlock function is a safety feature that is configurable by the user if it is set and the Interlock is left open the INTERLOCK OPEN will be displayed and the test will not start.

The GW Instek GPT-9601 AC Withstand Voltage Tester is designed for the testing of electrical devices and components according to various safety standards. It provides for ‘Withstand Voltage’ tests of up to 5kV AC with an output capacity of 100VA. The Test voltage can be set between 100V to 5kV AC and can be adjusted in 10V steps.

The 240 x 48 Ice Blue Dot Matrix LCD Display clearly shows the applied voltage, test parameters, test conditions, measurement value and test results all on the screen at the same time. The real-time status update on the LCD display accompanied by the multi-coloured LED status indicators on the front panel allow operators to have full visual control of the test process. The statue indicator above the high voltage output terminal will automatically flash when the output is present. In addition the function keys arranged below the LCD display provide convenient operation so that test functions can easily be changed with a single action.

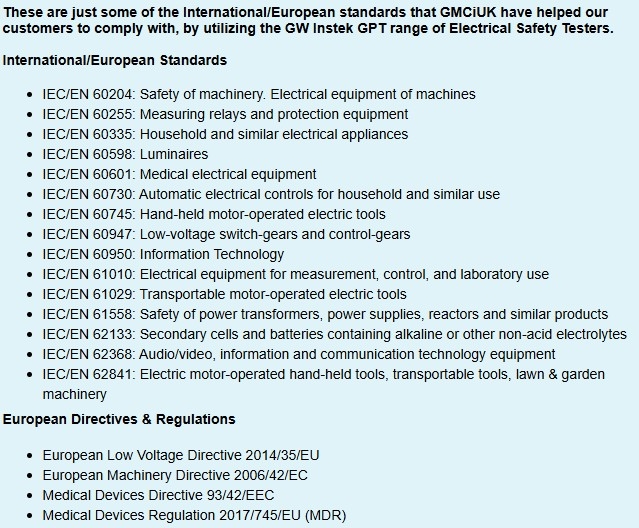

These are just some of the International/European standards that GMCiUK have helped our customers to comply with, by utilizing the GW Instek GPT range of Electrical Safety Testers.

International/European Standards

• IEC/EN 60204: Safety of machinery. Electrical equipment of machines
• IEC/EN 60255: Measuring relays and protection equipment
• IEC/EN 60335: Household and similar electrical appliances
• IEC/EN 60598: Luminaires
• IEC/EN 60601: Medical electrical equipment
• IEC/EN 60730: Automatic electrical controls for household and similar use
• IEC/EN 60745: Hand-held motor-operated electric tools
• IEC/EN 60947: Low-voltage switch-gears and control-gears
• IEC/EN 60950: Information Technology
• IEC/EN 61010: Electrical equipment for measurement, control, and laboratory use
• IEC/EN 61029: Transportable motor-operated electric tools
• IEC/EN 61558: Safety of power transformers, power supplies, reactors and similar products
• IEC/EN 62133: Secondary cells and batteries containing alkaline or other non-acid electrolytes
• IEC/EN 62368: Audio/video, information and communication technology equipment
• IEC/EN 62841: Electric motor-operated hand-held tools, transportable tools, lawn & garden machinery

European Directives & Regulations

• European Low Voltage Directive 2014/35/EU
• European Machinery Directive 2006/42/EC
• Medical Devices Directive 93/42/EEC
• Medical Devices Regulation 2017/745/EU (MDR)

• GPT-9601 unit.
• Quick start guide and user manual on CD
• GHT-114 x1 Test lead
• GHT-119 Remote Terminal Cable
• Power cord
• Interlock key
• Calibration Certificate
