INNO Instrument SPA4000

• 4 Power Measurement Channels
• Voltage range either 0…1000V or 0…1500V.
• Current measurements up to 1000A via current sensors.
• Wide frequency bandwidth DC or 0.1Hz to 5MHz.
• Optional input module with and 2 Motor Monitoring Channels enabling torque and speed sensors to be monitored.
• Highest Measurement accuracy ±0.01% (Reading) ±0.02% (Range)
• Max Sampling Rate 2MS/s
• Mass Storage Capacity 512GB. (With option for 1TB)
• Save formats include ssf & csv.
• Portable compact unit with large 10.1-inch high-resolution touch screen display.
• At the recalibration period the complete unit does not need to be returned, only the measurement modules.

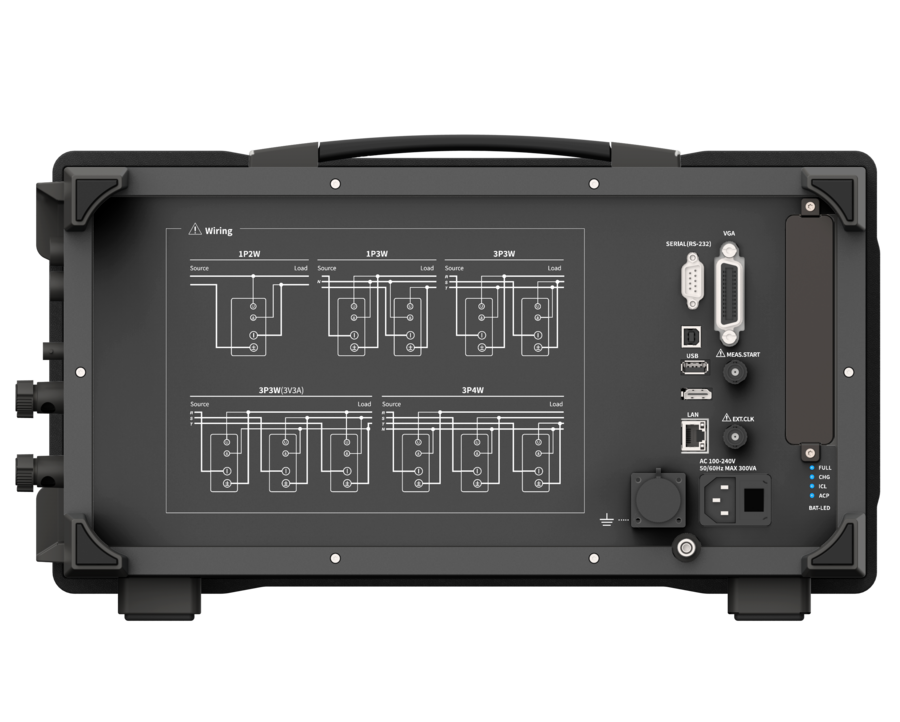

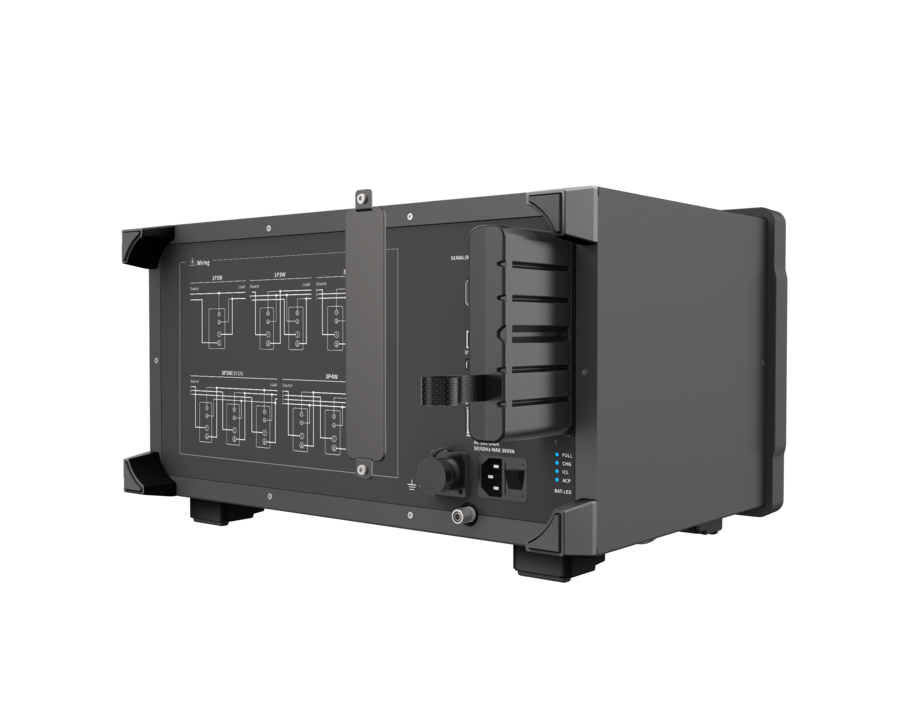

• There are several standard interface options including USB-A, USB-B, RS-232, HDMI & Ethernet plus external clock interface.
• USB B Interface - USB2.0, USBTMC USB488 Ver.1.0
• RS 232 Interface - DB-9 (pin type), which complies with EIA 574 (EIA 232 (RS 232) 9-pin standard)
• Ethernet Interface RJ-45 interface, which complies with IEEE802.3; 1000BASE-T, 100BASE-TX, 10BASE-T
• Optional GP IB Interface - Complies with IEEE standard 488-1978 (JIS C 1901 1987) and IEEE St d 488.2 1992
• Printer connection via LAN or USB.

The Inno Instrument SPA4000 is a compact 4 Channel Power Analyser offering high accuracy and mobility. Here we offer 4 key packages with 4 power measurement modules fitted to each unit each designed to cover your accuracy, voltage and current measurement requirements.

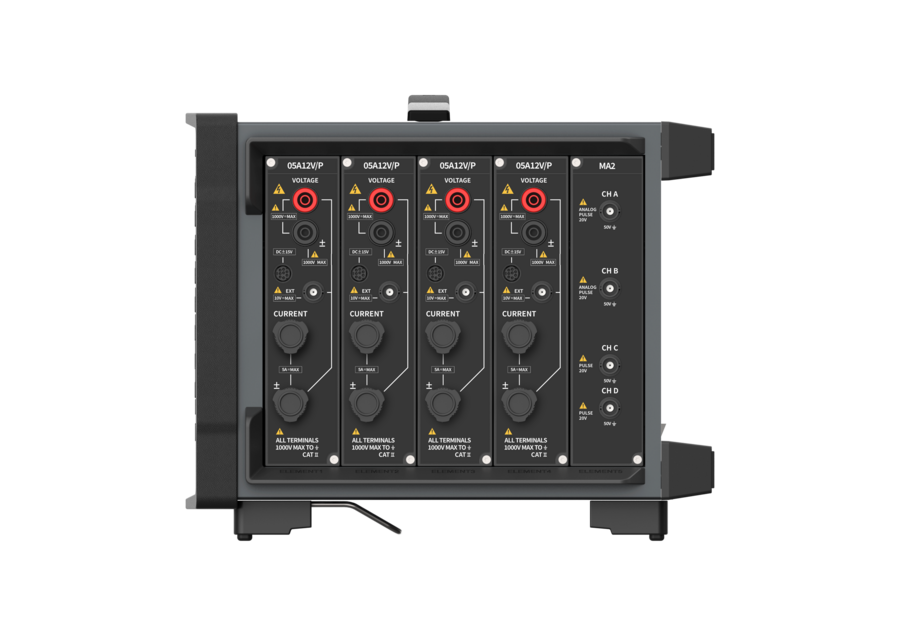

All offer High Accuracy Input power modules suitable for use with current sensors with a measurement range of up to 1000A. (See accessories covering the range of current sensors offered at 60A, 200A, 600A & 1000A). Four modules are offered with a voltage measurement range of 1000V or 1500V plus two accuracy levels to choose from depending on measurement accuracy required.

Key applications include DC/AC Inverter Motor Efficiency & Loss Evaluation. With 4 voltage & current input channels you can simultaneously measure the output from the EV’S battery (1 Channel) to the DC/AC Inverter along with inverter output to the motor (3 channels) plus motor output via torque and speed sensors.

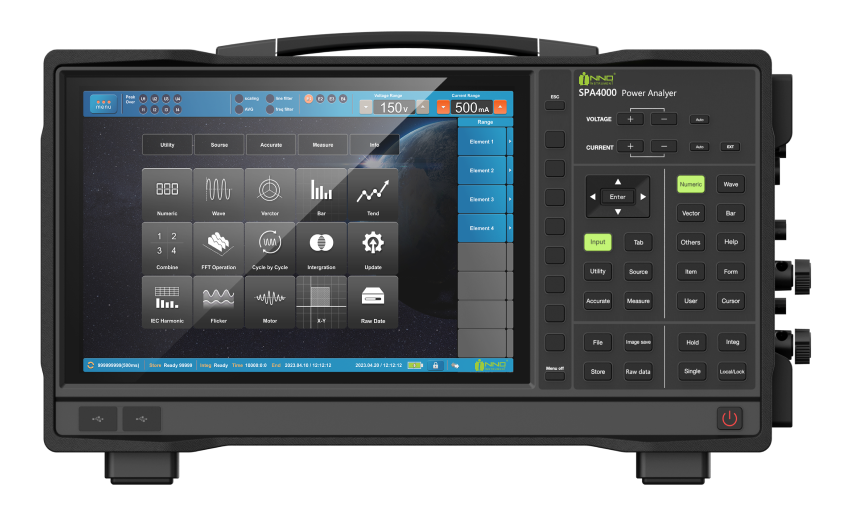

The 10.1-inch high-resolution touch screen display offers intuitive access to all measurement and control features plus multiple display options, including numerical value, waveform, bar chart, trend, vector, etc. plus split screen features. Cycle-by-cycle Measurement Capable of calculating the voltage, current, power and other parameters of AC input signal in each cycle, measuring data up to 3,000 cycles, and displaying the measured values in order of cycles. The Integration Function can be used during charge and discharge cycles to integrating positive and negative instantaneous power to make statistics on the charging and discharging of the battery.

The optional Motor Evaluation Module can also be added to the SPA4000 enabling torque and speed sensors to be monitored adding motor parameters, such as speed/direction, torque, synchronous speed, mechanical power, slip, electrical angle and efficiency to be simultaneously added to your test results. The mass storage capacity of 512GB. can store voltage, current, power and other measured data as well as voltage and current display waveform data in real time. In addition, it can also save the original sampling data, which is convenient for further processing and analysis of the data in the later period.

Another useful feature is that an external printer can be connected through a USB or LAN port to facilitate on-site printing. The INNO INSTRUMENT SPA4000 viewer software is a PC application software that allows users to remotely control the instrument from PC and display all measurement data.

• 1 x Inno Instrument SPA4000 Power Analysers
• 4 x Inno Instrument 05A12V/P Power Module
